Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE, ROHS
Model Number: WNK80mA

Payment & Shipping Terms:

Price: $12.00 - $19.00/Pieces
Packaging Details: each product in one inner paper box with protection;
Supply Ability: 2000 Set/Sets per Week pressure sensor
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Measured Media: Liquid, Gas And Steam Output Signals: 4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy: 0.2%F.S, 0.5%F.S Pressure Range: 0-300KPa~10MPa
Protection Class: IP65 Ex-proof: ExiaII CT4/CT6, ExidIICT6
Housing Material: 304SST Power Supply: 24VDC/12VDC/5VDC/3.3V
Electrical Connection: Packard, M12, DIN43650, Cable Keywords: Pressure Sensor 4-20mA/Pressure Sensor
Port: Shanghai Port
High Light:

WNK Water Level Pressure Sensor

,

WNK Gauge Pressure Transmitter

,

60 Bar Gauge Pressure Transmitter

Product Description

0.5-4.5V Output 4-20ma Water Pressure Sensor For Liquid Gas



WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water systemair-conditioningmachinery andrefrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

WNK80MA and WNK811 have various outputs including 4~20mA, I2C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.



WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12,  DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65



>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
 - Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems



WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 0

Technical Parameters

 WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 2

  >> Dimensions









 WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 4

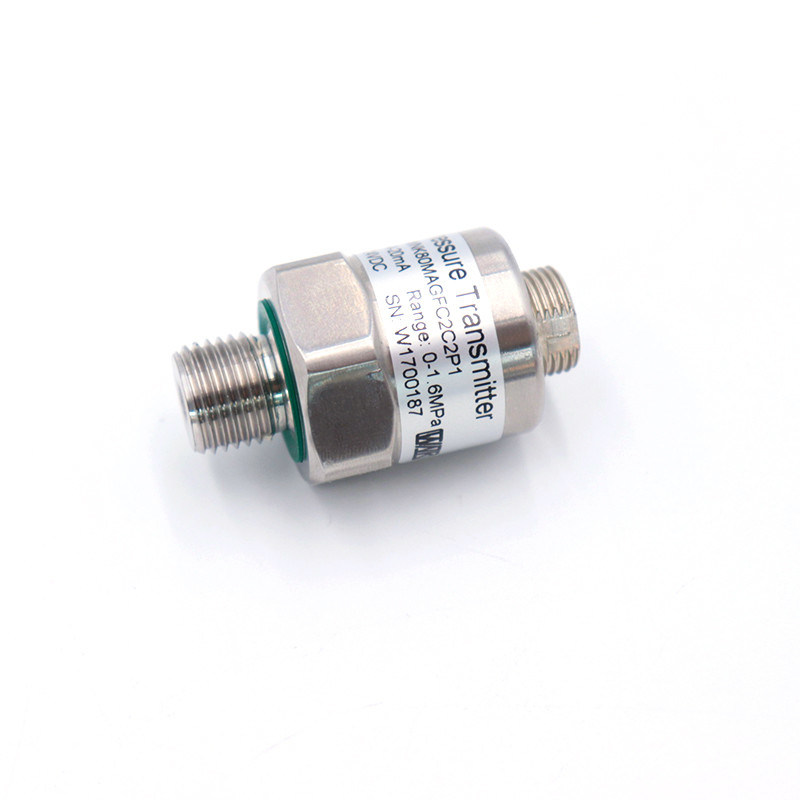

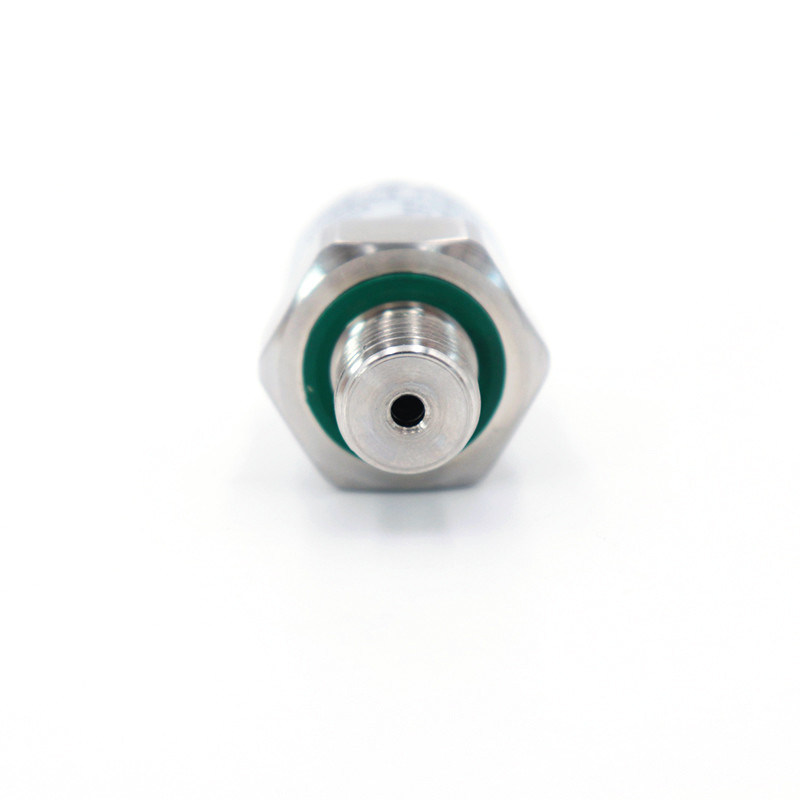

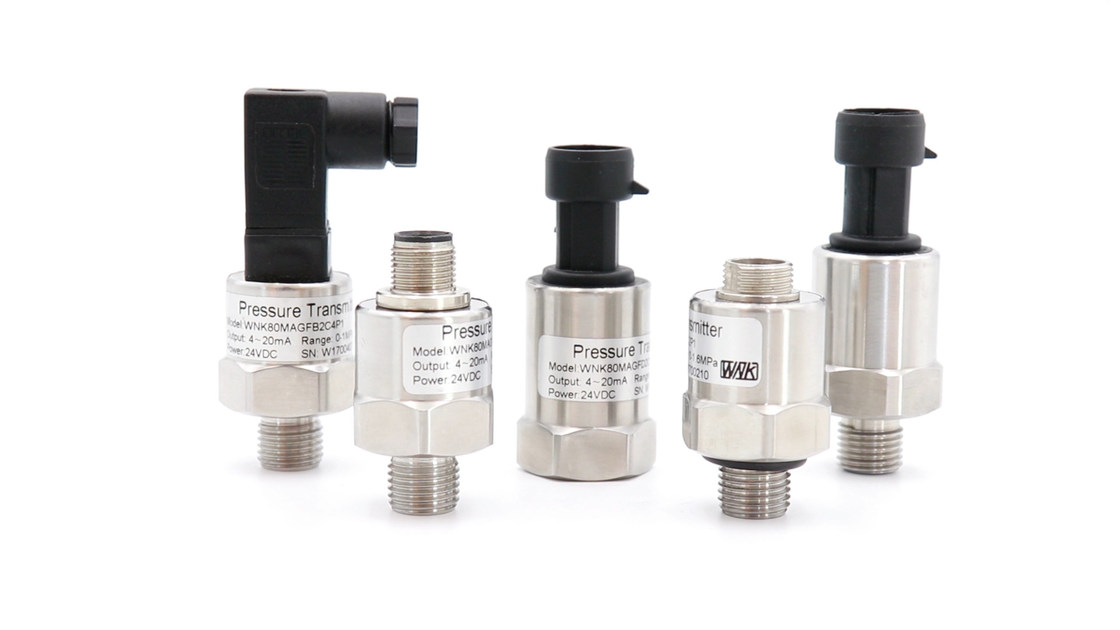

Product Show

 WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 6WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 8WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 10WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 12WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 14WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 16





Company Information

 WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 18



Exhibition

 WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 20







Certification

 WNK Water Level Pressure Sensor , 60 bar Gauge Pressure Transmitter 22




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
