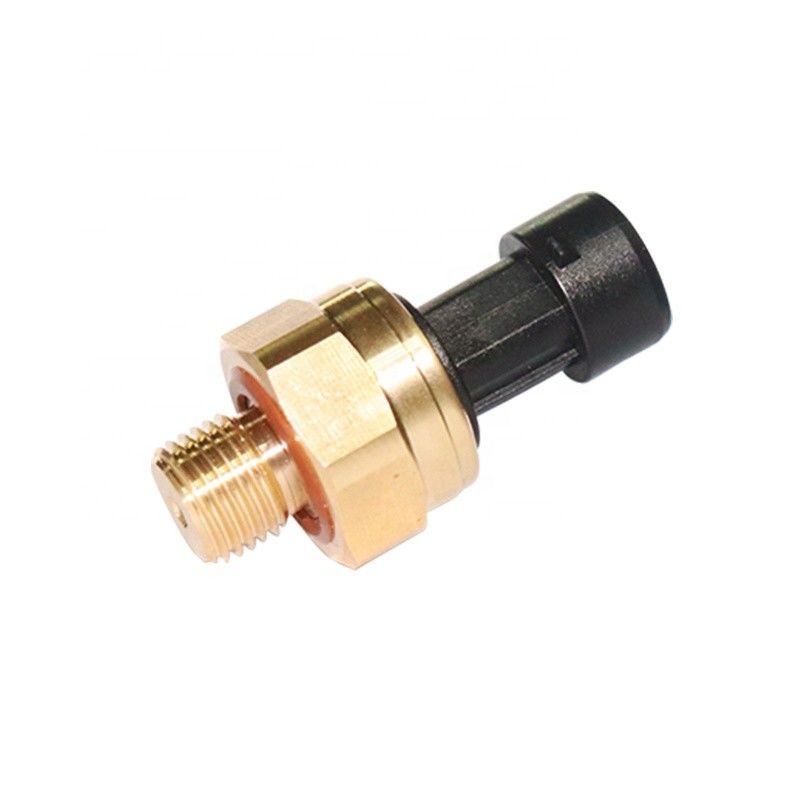

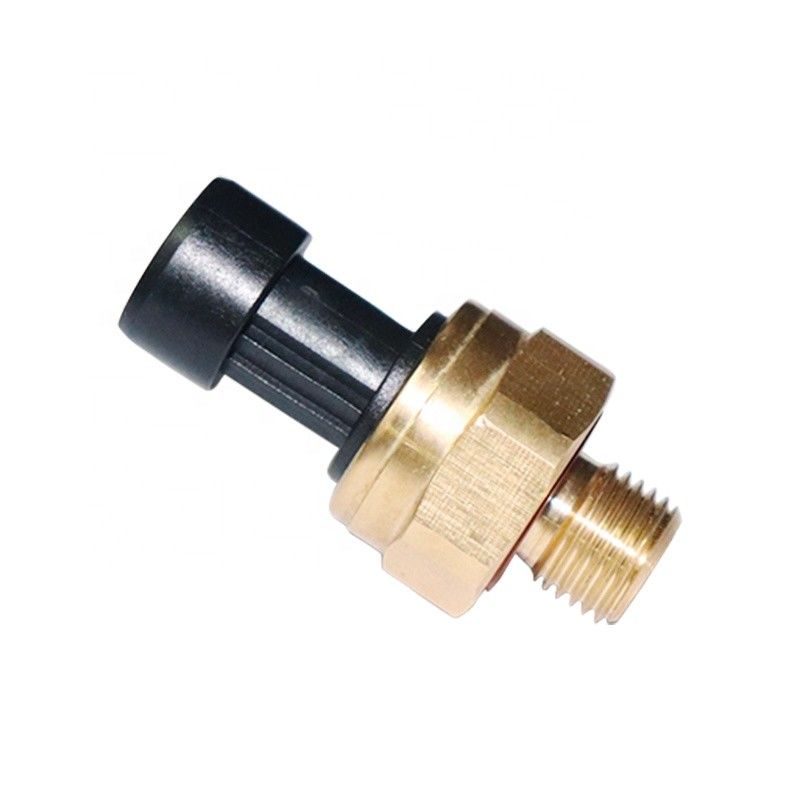

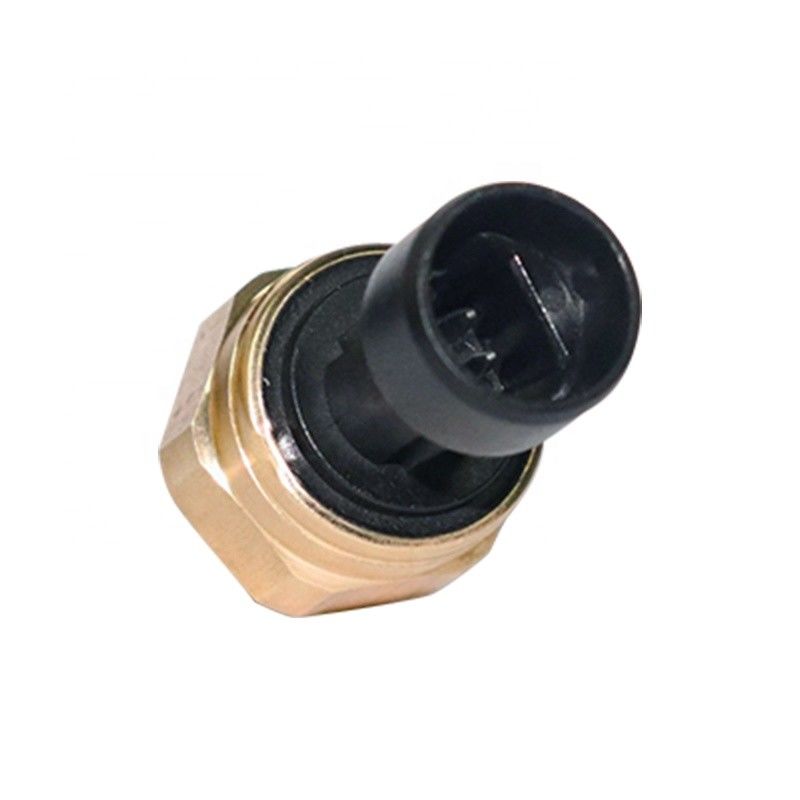

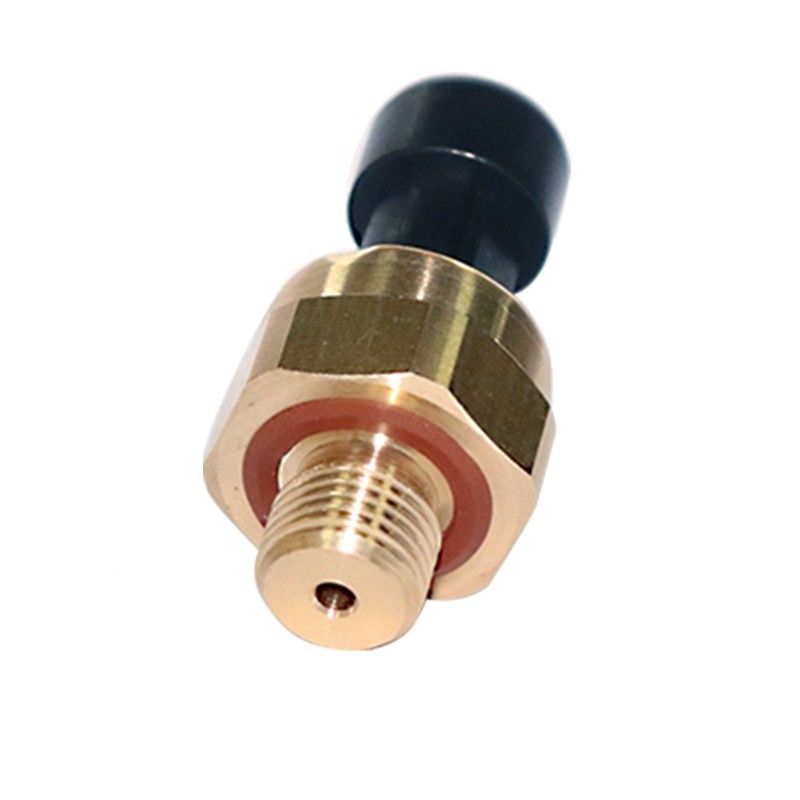

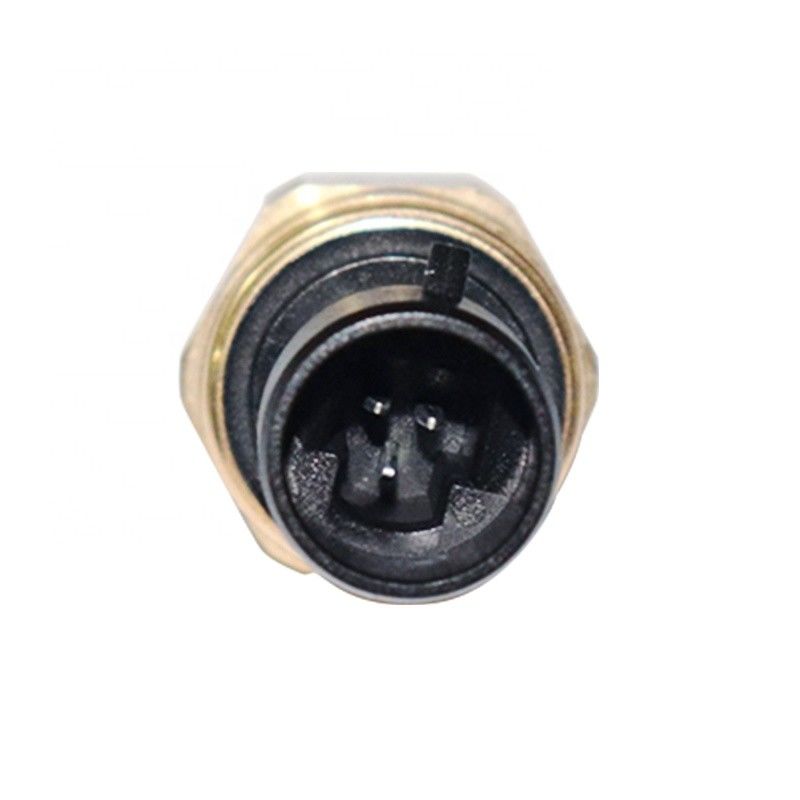

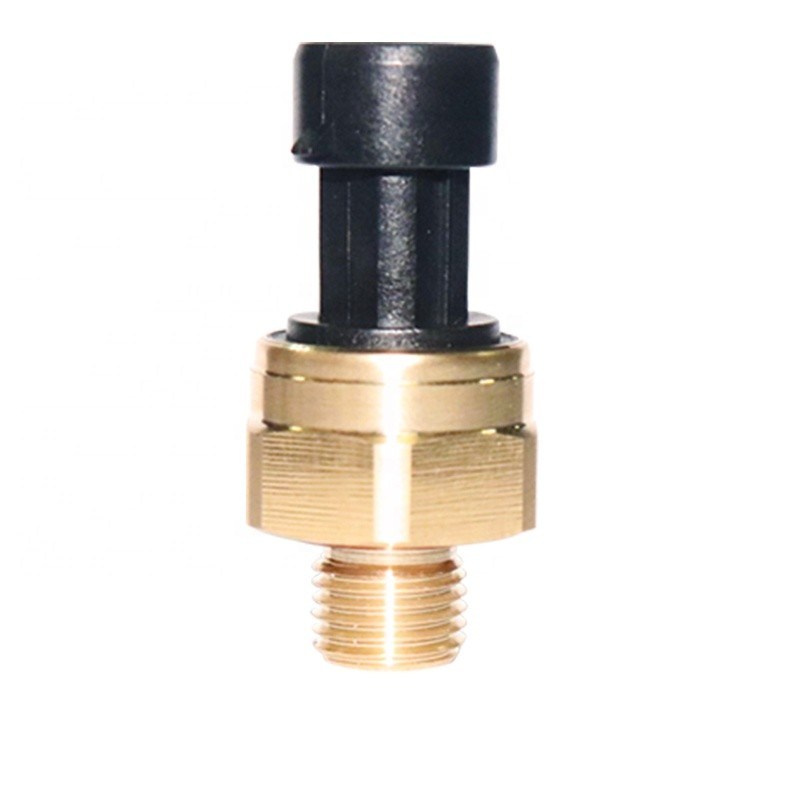

1%FS Brass Pressure Sensor For Water Parkard Electrical Connection
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK83MA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | $6.50/Pieces >=10 Pieces |
| Packaging Details: | standard export carton box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 10000 Piece/Pieces per Month Brass Pressure Sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Output Signals: | 0.5-4.5V |
| Accuracy: | 1%F.S | Pressure Range: | 10bar, 20bar |
| Protection Class: | IP65 | Housing Material: | Brass |
| Power Supply: | 5V | Product Name: | 0.5-4.5V Low Cost Brass Water Pressure Sensor For Water Treatment |
| Mechanical Connection: | G1/4 | Pressure Measurment: | Gauge Pressure, Sealing Pressure |
| Port: | Shanghai, Ningbo, Shenzhen Etc | ||
| High Light: | 1%FS Pressure Sensor For Water,Brass Pressure Sensor For Water,Parkard Electrical Connection water pressure sensor |
||
Product Description
0.5-4.5V Low Cost Brass Pressure Sensor For Water Treatment
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-2MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply |
4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Working temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Parkard |
| Mechanical connection | G1/4 |
| Housing material | Brass |
Product Show
Company Information
Exhibition
Certification
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
Want to Know more details about this product
