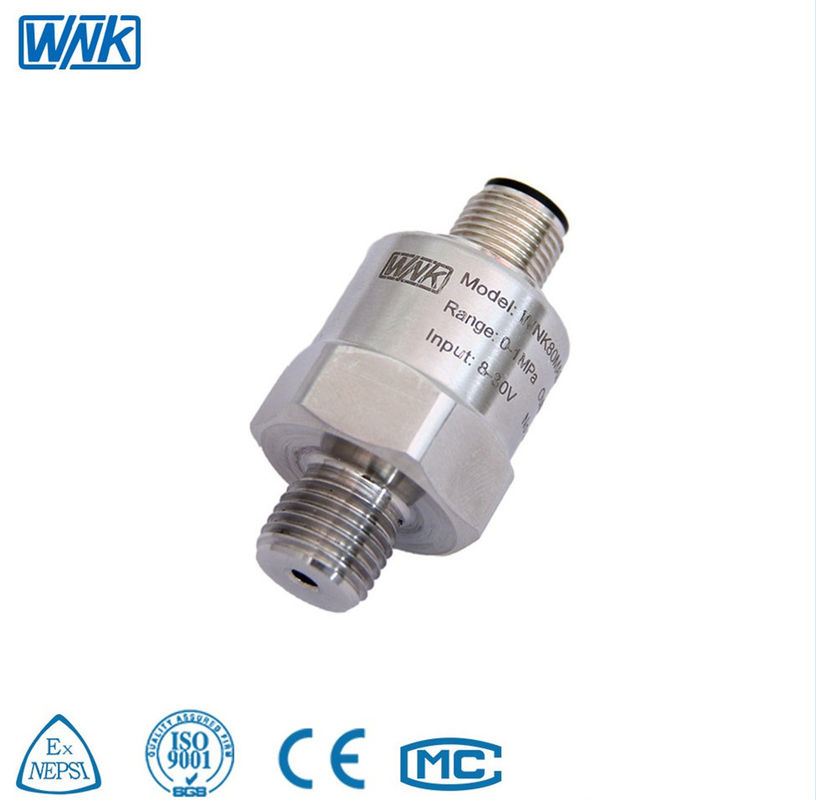

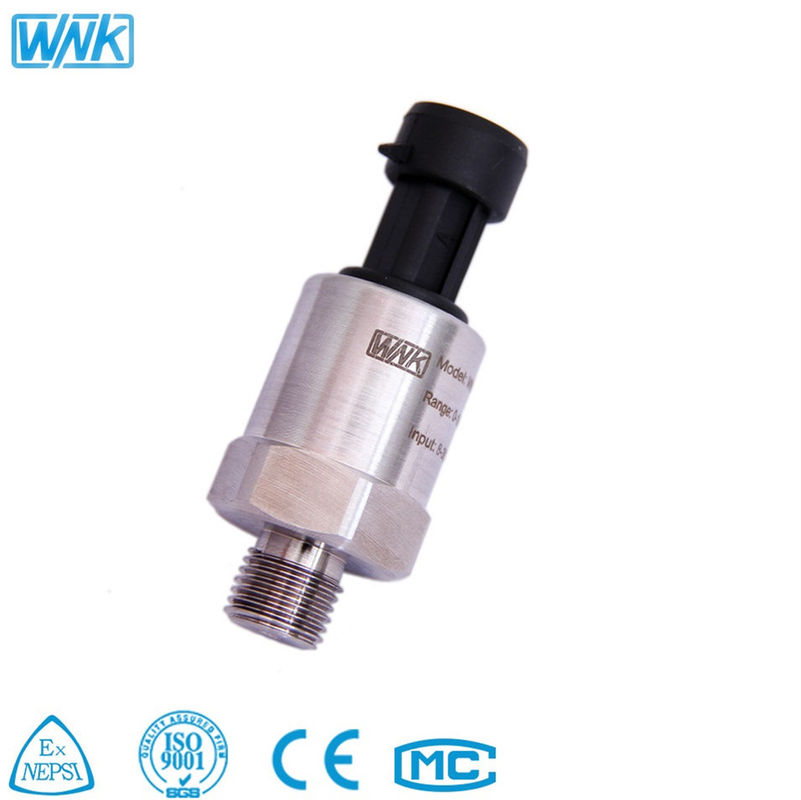

Px10 316L Electronic Pressure Transmitter For Liquid Gas And Steam
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE, ROHS |
| Model Number: | WNK80mA |
Payment & Shipping Terms:
| Price: | $12.00 - $19.00/Pieces |
|---|---|
| Packaging Details: | each pc product in one individual bag with protection. |
| Supply Ability: | 2000 Set/Sets per Week |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Interface Type: | I2C, SPI |
| Output: | 4-20mA/0-5V/0-10V/0.5-4.5vdc | Accuracy: | ±0.5%, ±1%, |
| Total Error Band: | ±1.0% | Pressure Range: | 0-200Kpa~150bar |
| Burst Pressure: | P*10 | Housing Material: | 316L |
| Power Supply: | 3.3V, 5V, 12V, 24V | Product Name: | 0.5-4.5V I2C Pressure Transducer For Liquid Gas And Steam |
| Port: | Shanghai Port | ||
| High Light: | Px10 Electronic Pressure Transmitter,316L Electronic Pressure Transmitter,Liquid Gas Steam Pressure Transmitter |
||
Product Description
0.5-4.5V I2C Pressure Transducer For Liquid Gas And Steam
Features:

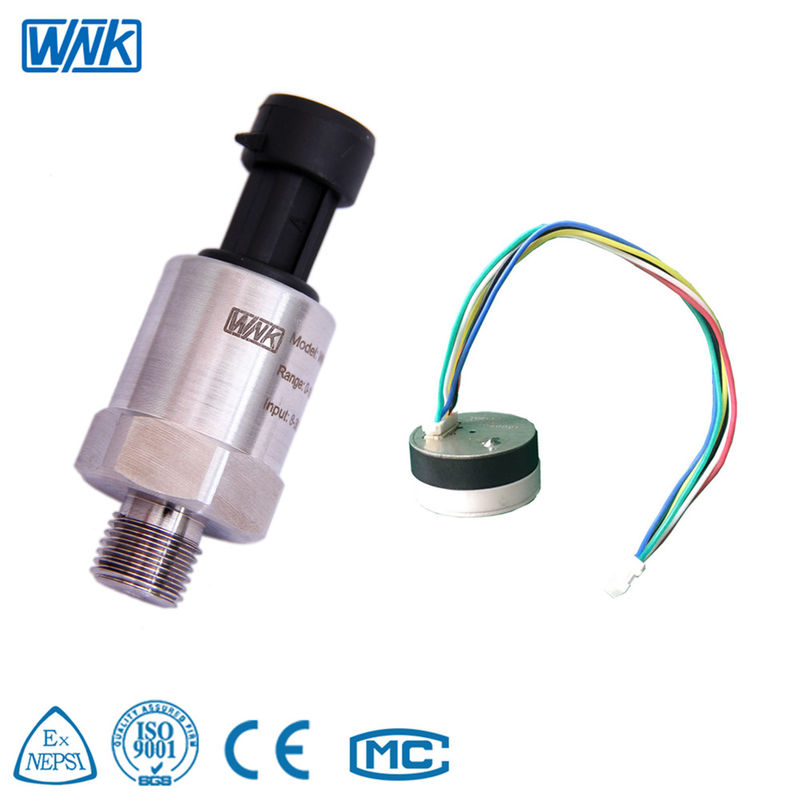

• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;
•Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;
Applications:
• pressure measurement of gases, vapors or liquids in all areas;
• Liquid level, volume or mass measurement;
• Can be integrated into a variety of user-defined solutions.
Product Spec
|
|
|
|
|
||
|
Sensor material
|
AL2O3 Ceramic Capacitive
|
|
|
||
|
Applicable media
|
Liquid, Gas
|
|
|
||
|
Pressure range
|
0-500kPa~100bar
|
|
|
||
|
Pressure measurment
|
Gauge, Absolute, Sealing
|
|
|
||
|
Output
|
4-20mA, 1-5V, I2C , 0.5-4.5V, 0-10V, 0-5V
|
|
|
||
|
Accuracy
|
0.5%, 1%
|
|
|
||
|
Power supply
|
5V, 3.3V, 12V, 24V (based on output)
|
|
|
||
|
Electrical connection
|
Packard, M12*1P, Cable, DIN43650, Customization
|
|
|
||
Dimension
