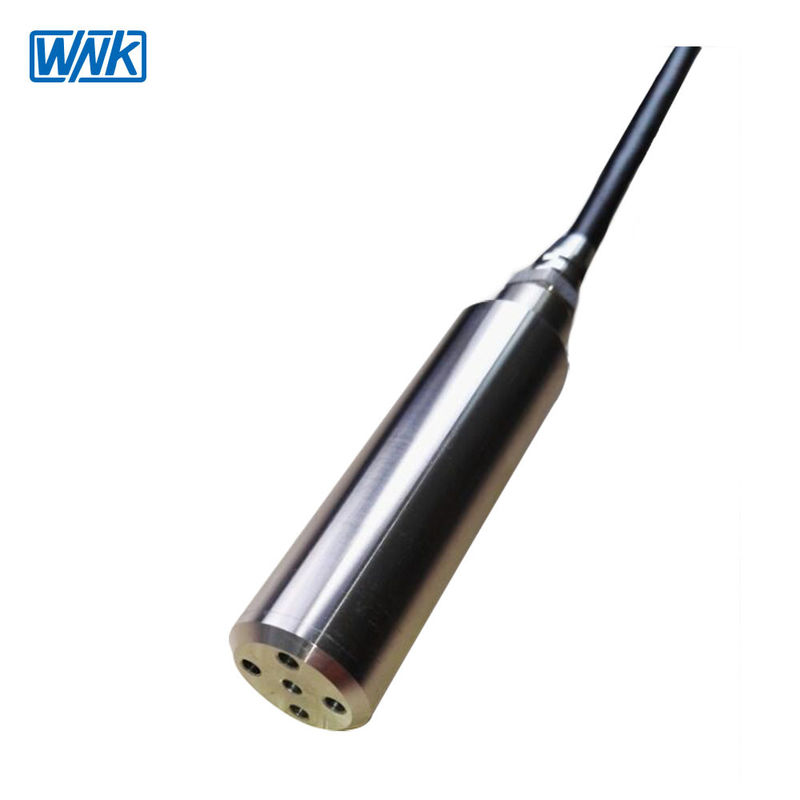

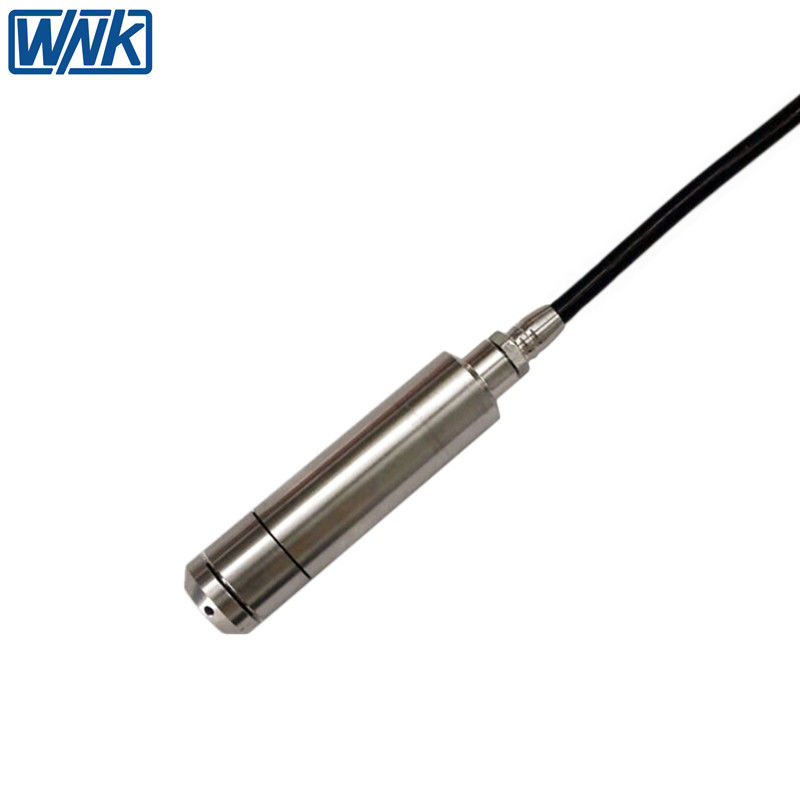

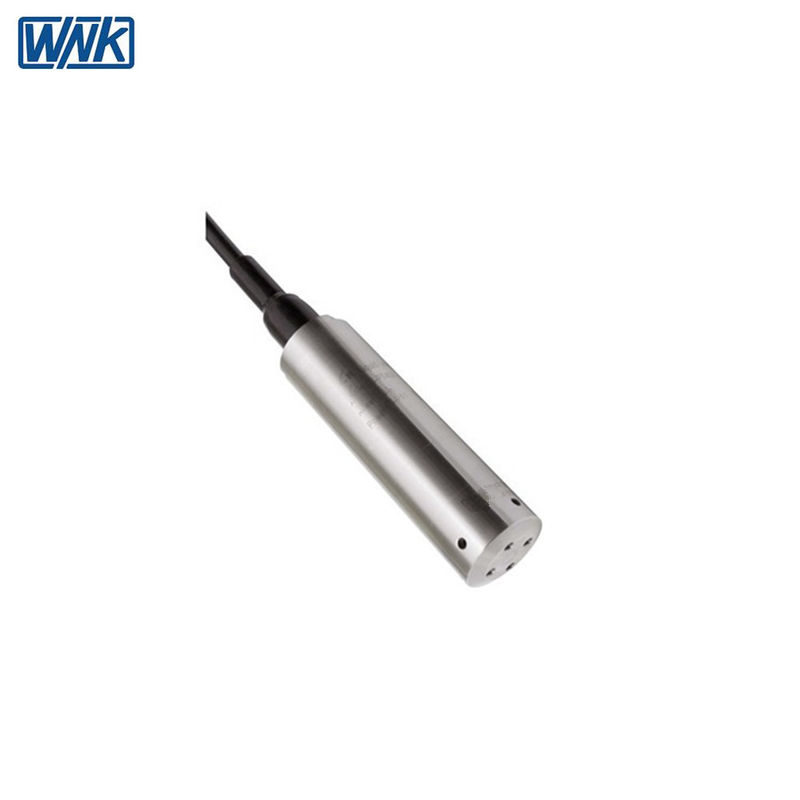

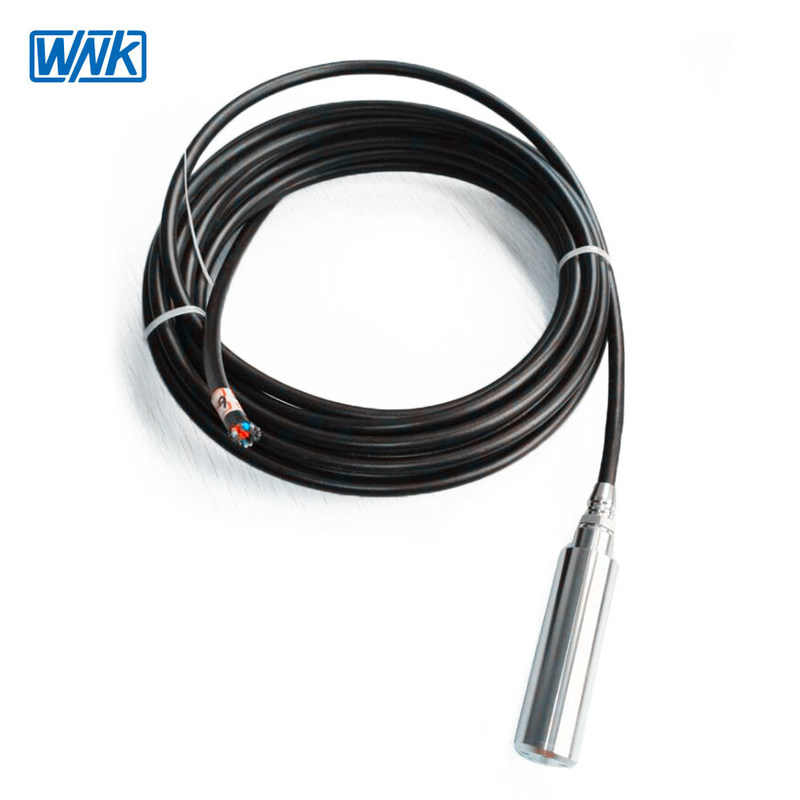

0-200m Submersible Level Sensor , WNK8010 liquid Water Level Sensor Probe
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK8010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $55.00 - $70.00/Sets |
| Packaging Details: | Each set in one individual carton packing with protection |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200 Set/Sets per Day Submersible pressure sensor |
|
Detail Information |
|||
| Grade: | DIY, Industrial | Warranty: | 1 YEAR |
|---|---|---|---|
| Customized Support: | OEM, ODM | Pressure Type: | Gauge |
| Measured Media: | Liquid, Water | Measured Range: | 0-200 Meters |
| Accuracy: | 0.2% FS, 0.5%FS | Output Signals: | 4~20mA, 1-5V, 0-5V |
| Protection Class: | IP68 | Power Supply: | 12~36V DC |
| Working Temperature: | -40 To 85 ℃ | Housing Material: | Stainless Steel |
| Product Name: | Submersible 4-20mA Liquid Pressure Sensor /Water Level Sensor Probe | Port: | Shanghai |
| High Light: | 200m Submersible Level Sensor,WNK8010 Water Level Sensor Probe,Submersible Water Level Sensor Probe |
||
Product Description
Submersible 4-20mA Liquid Pressure Sensor /Water Level Sensor Probe
1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
2. With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
3. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
|
Output signals |
|
|
Output |
4-20mA, 0-10mA, 0-5V, 1-5V |
|
|
customization |
|
Measured range |
|
|
Measured range |
0-0.5~200mH2O |
|
Max overload |
150% of sensor range |
|
|
|
|
Parameters |
|
|
Applicable media |
Liquid, Water |
|
Accuracy |
±0.2% FS/year, ±0.5% FS/year |
|
Stability |
±0.25% FS/year |
|
Housing material |
Stainless steel |
|
Cable material |
Polyvinyl Fluoride, PTFE |
|
Power supply |
24V DC |
|
Ambient temperature |
-20~85℃ |
|
Process temperature |
-20~85℃ |
|
Compensation temperature |
-20~85℃ |
|
Protection class |
IP68 |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
