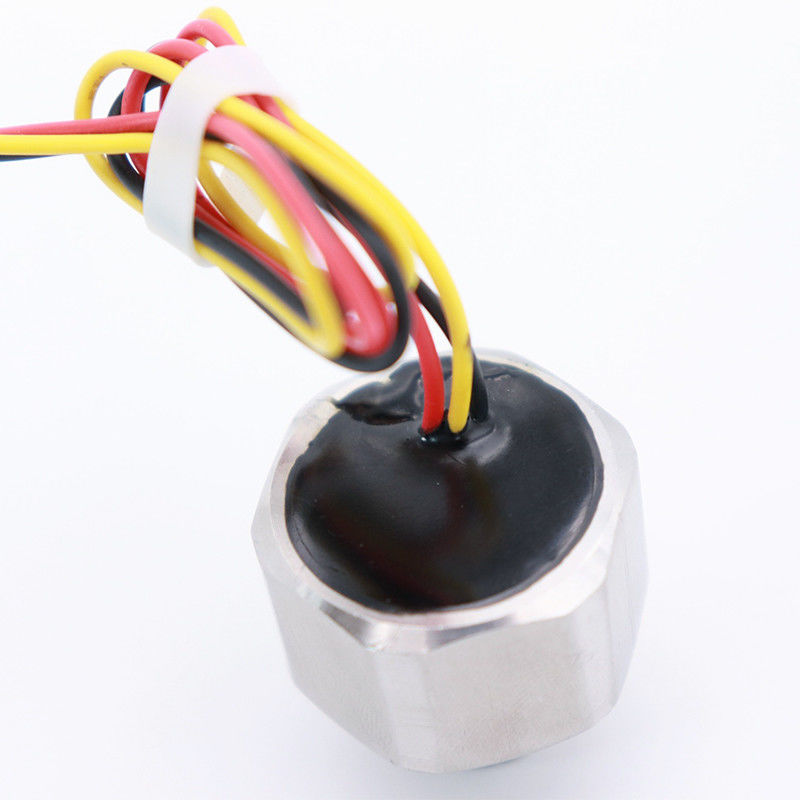

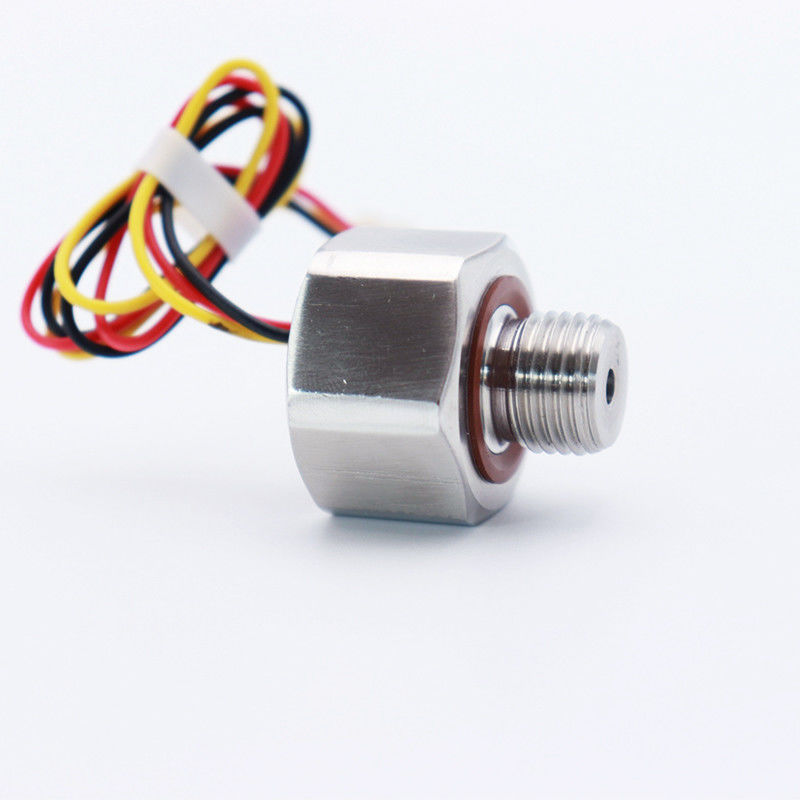

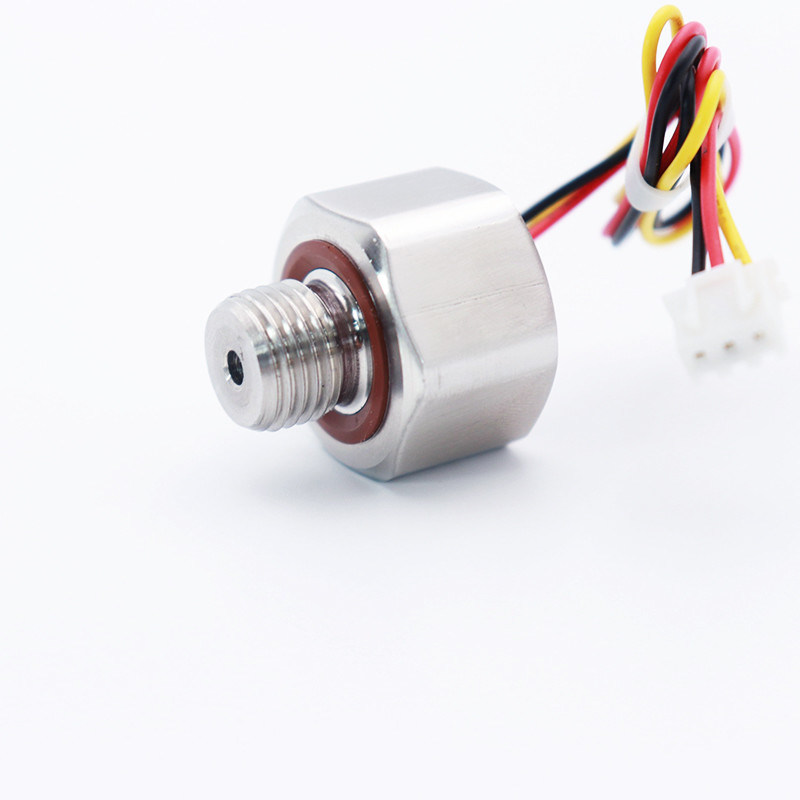

ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer

ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK, WNK
Certification: CE, ROHS
Model Number: WNK80MA, WNK811-1

Payment & Shipping Terms:

Price: $10.00 - $35.00/Pieces
Packaging Details: each product in one inner paper box with protection
Supply Ability: 2000 Set/Sets per Week
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Measured Media: Liquid, Gas And Steam Output Signals: 4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy: 0.2%F.S, 0.5%F.S Pressure Range: -100kPa~0, 0-10kPa, 100kPa, 1MPa, 5MPa, 10MPa, 20MKPa, 50MPa
Protection Class: IP65 Housing Material: 304SST
Power Supply: 24VDC/12VDC/5VDC/3.3V Electrical Connection: Cable Outlet, Connector
Port: Shanghai Port
High Light:

ODM Electronic Pressure Sensor

,

ODM Oil Filled Pressure Transducer

,

Piezoresistive Oil Filled Pressure Transducer

Product Description

China oil filled piezoresistive diffused silicon pressure sensor 0.5-4.5V 0-5V 4-20mA I2C


WNK811 is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and piezoresistive diffused silicon oil filled pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 3 times of the range, and with a wide of abosulte and gauge pressure.

With high output and wide ranges, WNK811 also provide with wide range customization.



ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 0












Product Spec
WNK811 diffused silicon oil filled pressure sensor with customization

Applicable media
Liquid, Gas

Pressure range
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)

Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Customization Connector, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT,  M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65




Process Connection
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 2
About us
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 4
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 6
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 8
Related Products
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 10
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 12
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 14
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 16
Our Quality Control
ODM Electronic Pressure Sensor Piezoresistive Oil Filled Pressure Transducer 18

Our product quality is guaranteed

1. 100%  of all products we do temperature compensation and aging test before shipment.

2. Our products are all calibrated and shipped with certificate.
