Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WD19

Payment & Shipping Terms:

Price: $10.00 - $15.00/Pieces
Packaging Details: each pc product in one individual plastic bag with protection.
Supply Ability: 2000 Set/Sets per Week
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Measured Media: Liquid, Gas And Steam Interface Type: I2C, SPI
Accuracy: ±0.2% Total Error Band: ±1.0%
Pressure Range: 0-40Kpa~7Mpa Housing Material: 316L
Power Supply: 3.3V, 5V Keywords: Piezoresistive Pressure Sensor/ I2C Pressure Transducer
MOQ: 1 Brand: WNK
Port: Shanghai Port
High Light:

I2C Interface Piezoresistive Pressure Transducer

,

Stainless Piezoresistive Pressure Transducer

,

Automation Control stainless steel pressure transducer

Product Description

High Quality Stainless I2C Interface Piezoresistive Pressure Sensor



High Quality Stainless I2C Interface Piezoresistive Pressure Sensor

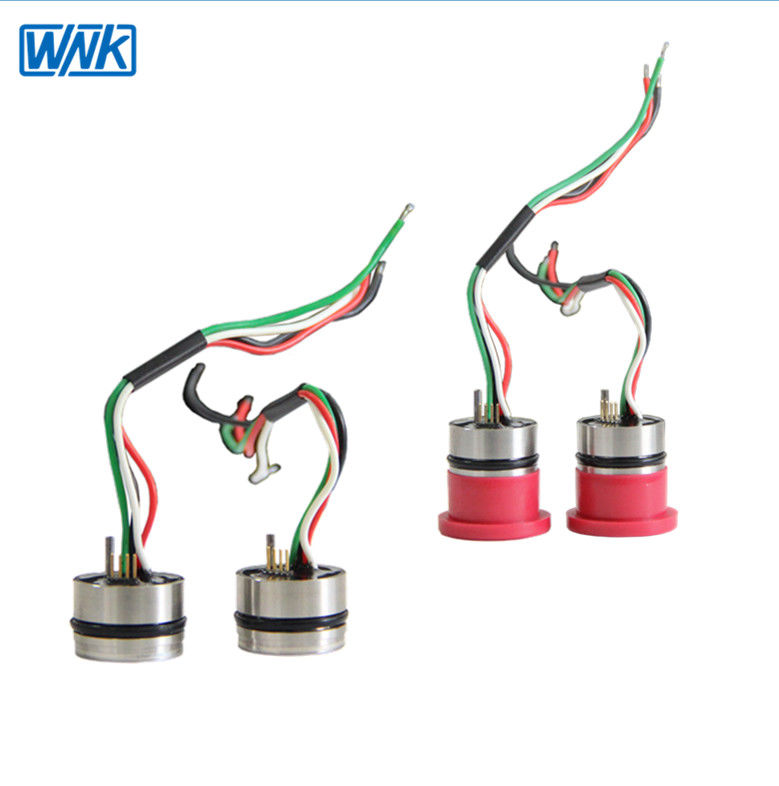

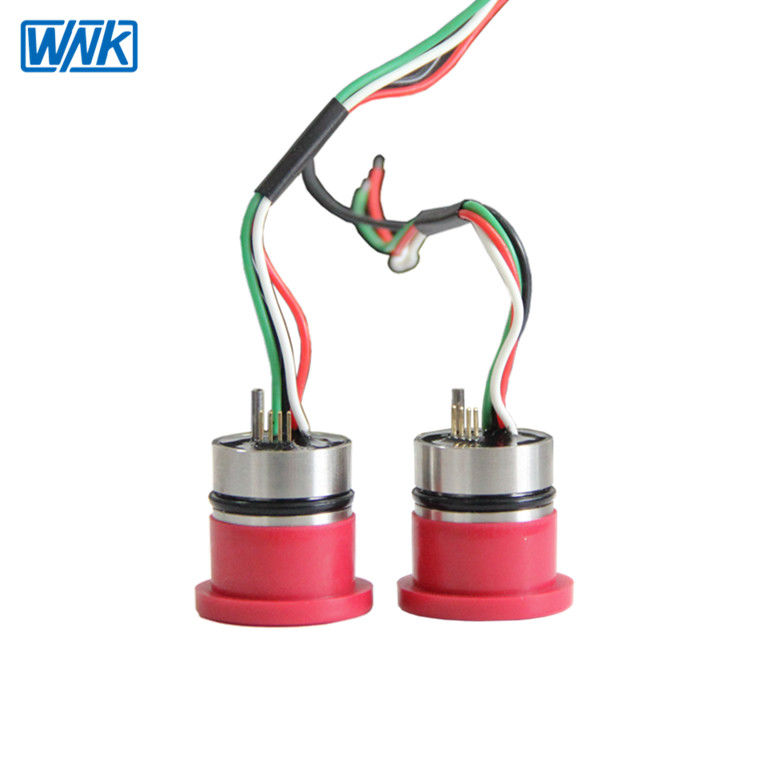

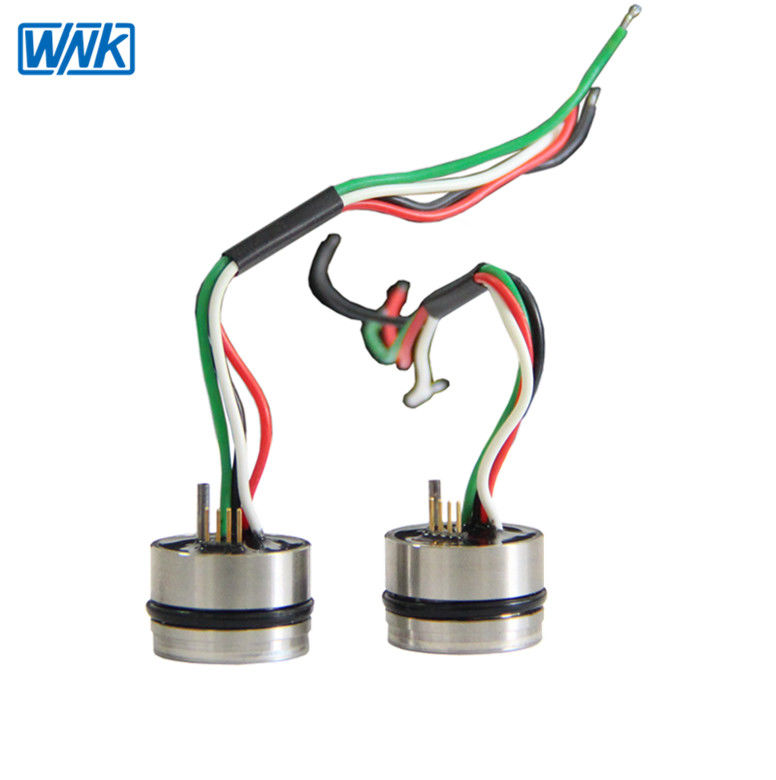

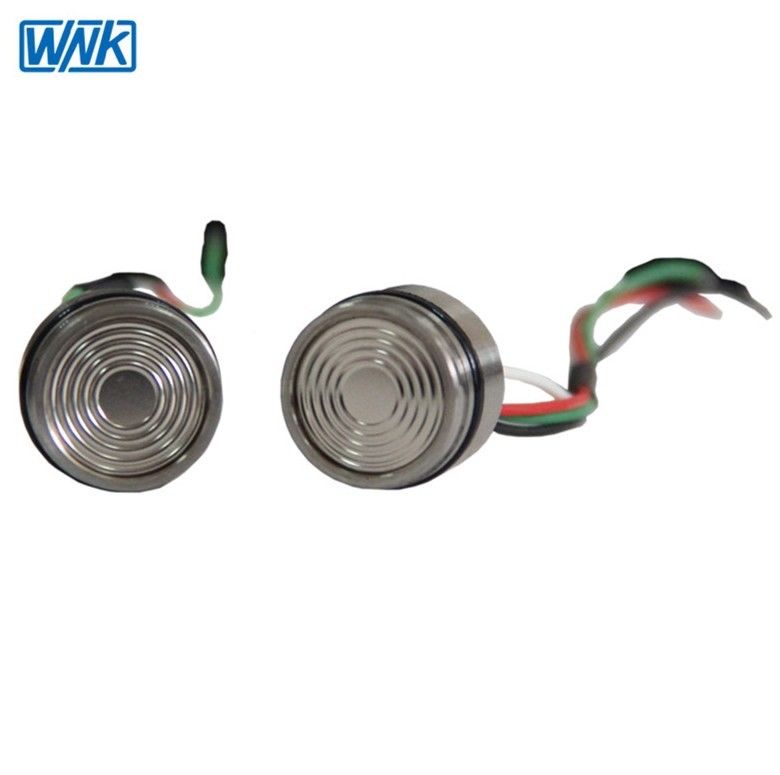

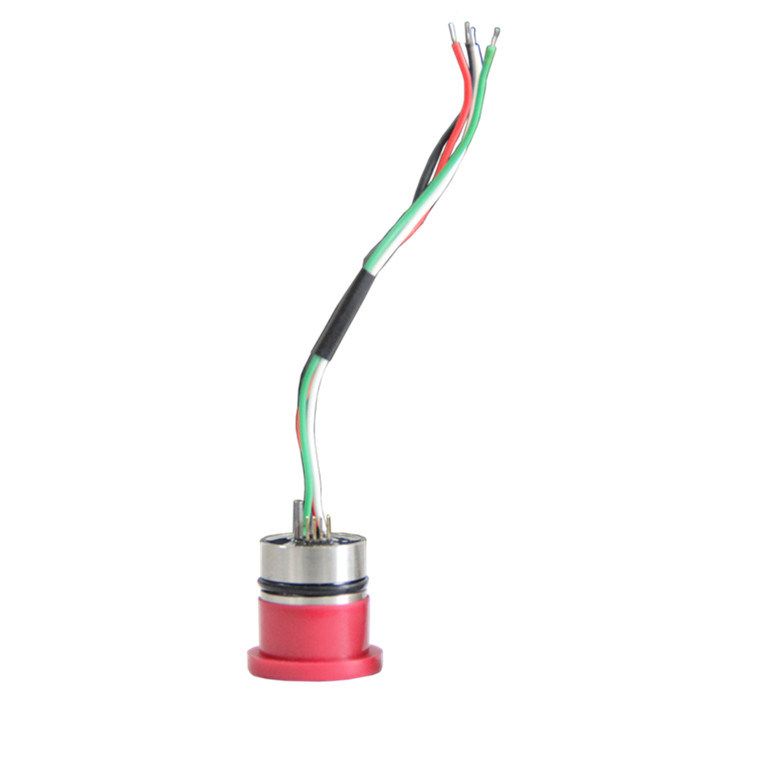

D19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.



Features:

High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI



Applications:

Automation control

Pressure instruments
Level measurement
Pressure transmitters







Product Spec
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 0





Dimension
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 2
Hot Products

Packing&Shipping
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 4
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 6
Our Company
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 8
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 10
Stainless Steel Piezoresistive Pressure Transducer I2C Interface For Automation Control 12
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
