Anti Corrosion 1 5v Pressure Sensor With M12x1.5 Quick Connection
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK811 |
Payment & Shipping Terms:
| Price: | $9.00 - $16.00/Pieces |
|---|---|
| Packaging Details: | paper carton or as per clients' requirement |
| Supply Ability: | 2000 Piece/Pieces per Month Pressure Sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Output Signals: | 4~20mA, 1-5V, 0-5V, 0-10V, 0.5V-4.5V, I2C | Pressure Range: | -100kPa~0, 0-10kPa, 100kPa, 1MPa, 5MPa |
| Housing Material: | 304SST | Measured Media: | Liquid, Gas And Steam |
| Accuracy: | 0.5%F.S | Protection Class: | IP65 |
| Power Supply: | 24VDC/12VDC/5VDC/3.3V | Product Name: | 1-5V Anti-corrosion Pressure Sensor With M12*1.5 Quick Connection |
| Application: | Water Oil Air Pressure Measurement | Process Connection: | G1/8, G1/4, 1/4NPT |
| Port: | Shanghai | ||
| High Light: | Anti Corrosion 1 5v Pressure Sensor,M12x1.5 1 5v Pressure Sensor |
||
Product Description

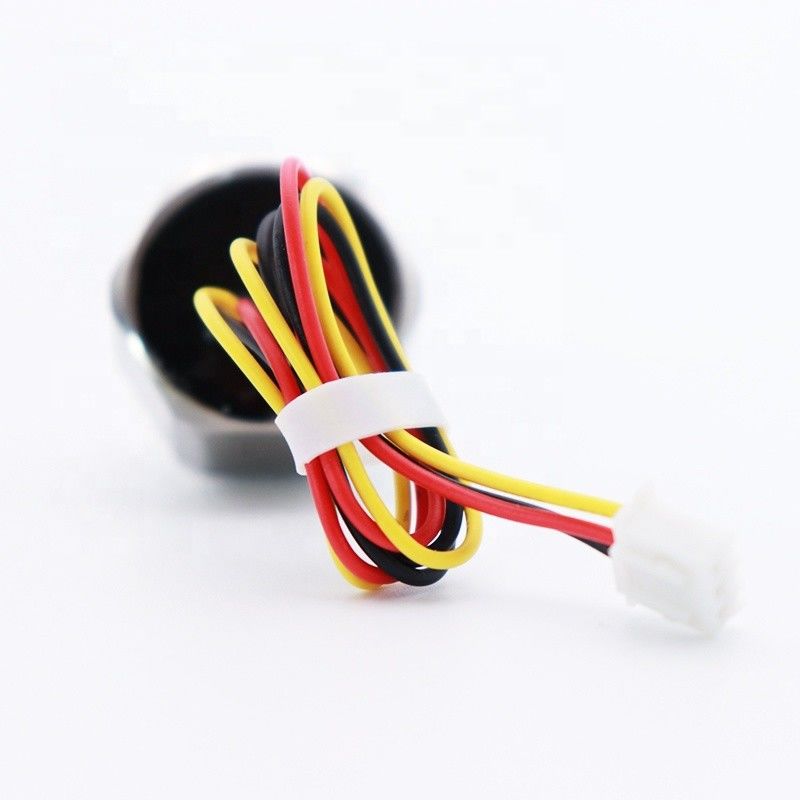

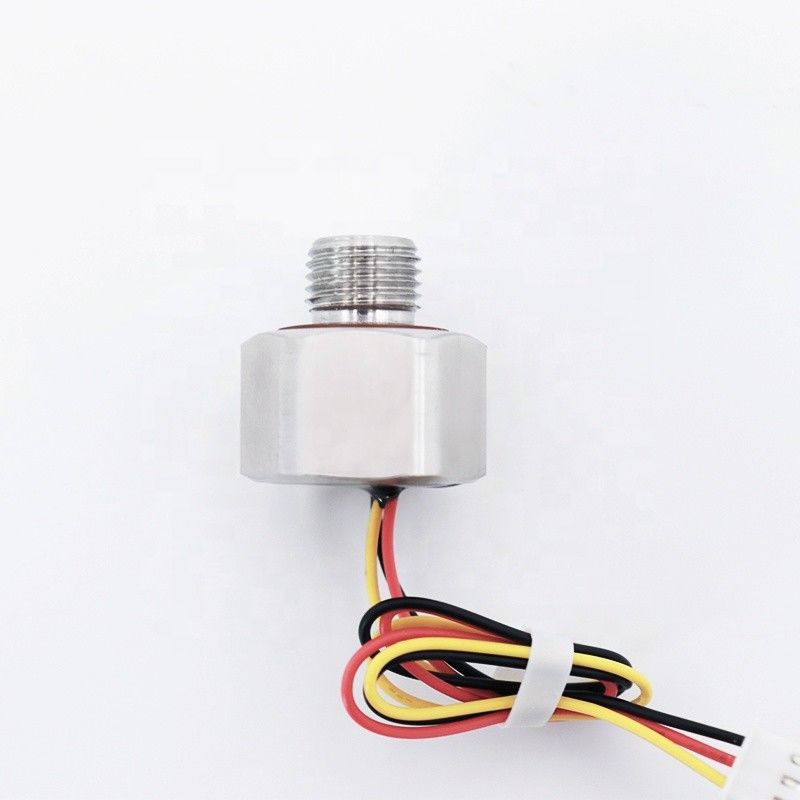

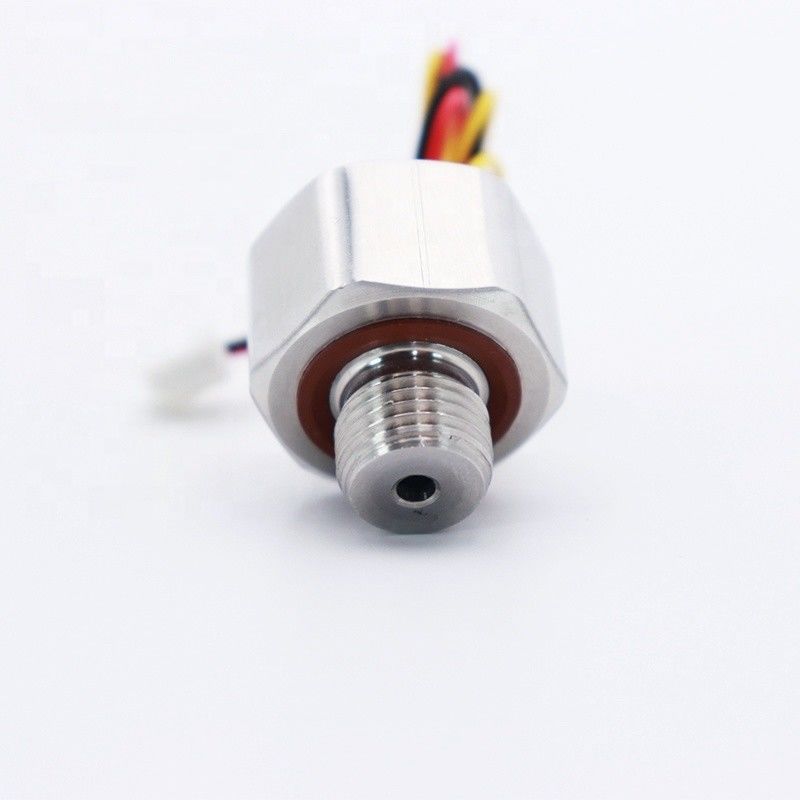

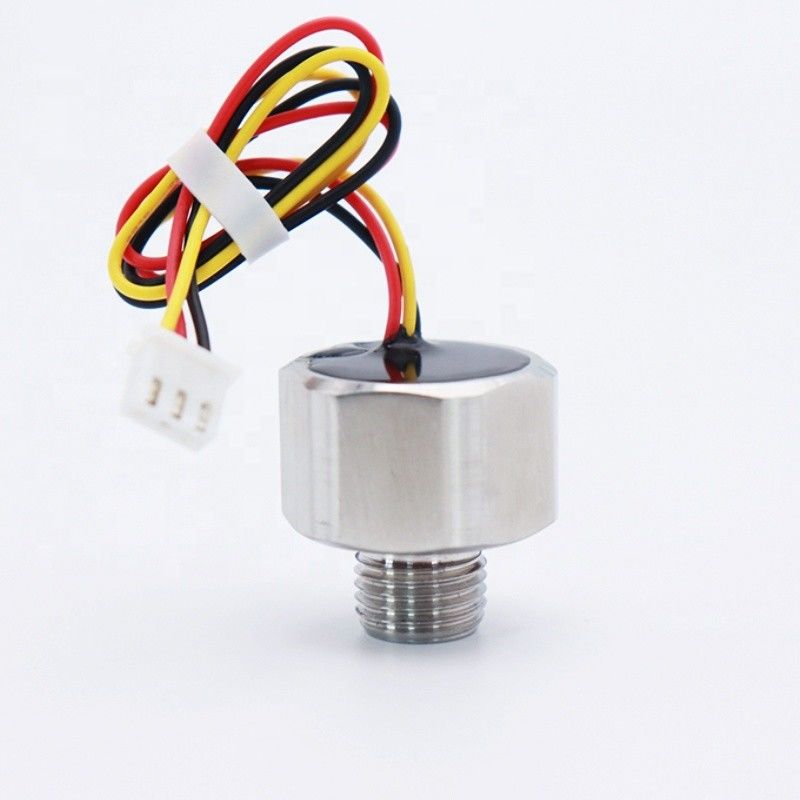

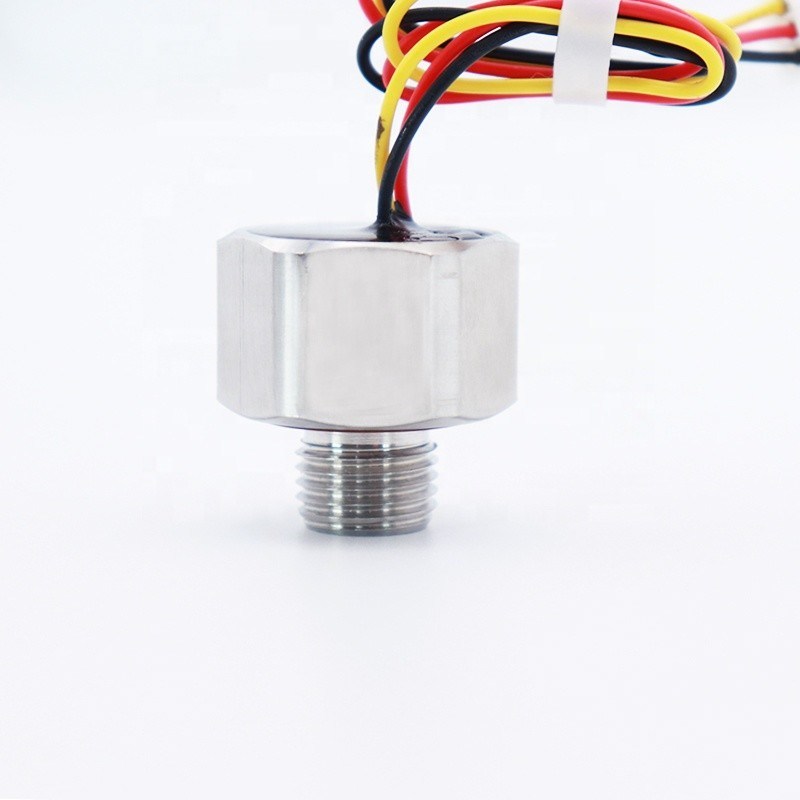

1-5V Anti-corrosion Pressure Sensor With M12*1.5 Quick Connection
WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.
Application
WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;
•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc
|
1-5V Anti-corrosion Pressure Sensor With M12*1.5 Quick Connection
|
|
|
|
Applicable media
|
Liquid, Gas
|
|
|
Pressure Range
|
-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa,
60MPa(bar and psi unit available) |
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
|
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
|
Compensation temperature
|
-20~85ºC
|
|
|
Ambient temperature
|
-40~125ºC
|
|
|
Working temperature
|
-40~125ºC
|
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
|
power(electrical) connect
|
Customization Connector, Cable outlet
|
|
|
Mechanical connection
|
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
|
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
|
Protection
|
IP65
|
|
Process Connection
Ordering Sheet
|
Model
|
Product description
|
|
|
WNK811
|
Pressure Transducer
|
|
|
Code
|
Pressure type
|
|
|
A
|
Absolute pressure
|
|
|
G
|
Gauge pressure
|
|
|
S
|
Sealing pressure
|
|
|
Code
|
Accuracy
|
|
|
F
|
0.5%
|
|
|
O
|
1%
|
|
|
Code
|
Sensor range
|
|
|
A1
|
0-1.0~10KPa
|
|
|
A2
|
0-10~35KPa
|
|
|
A3
|
0-35~100KPa
|
|
|
A4
|
0-100~400KPa
|
|
|
A5
|
0-400~600KPa
|
|
|
A6
|
0-0.6~1.0MPa
|
|
|
A7
|
0-1.0~2.5MPa
|
|
|
A8
|
0-2.5~6.0MPa
|
|
|
A9
|
0-6.0~10MPa
|
|
|
A10
|
0-10~25MPa
|
|
|
A11
|
0-25~40MPa
|
|
|
Code
|
Output
|
|
|
O1
|
4…20mA
|
|
|
O2
|
1-5V
|
|
|
O3
|
0.5-4.5V
|
|
|
O4
|
I2C
|
|
|
O5
|
0-5V
|
|
|
O6
|
0-10V
|
|
|
Code
|
Process connection
|
|
|
P1
|
G1/8 male
|
|
|
P2
|
G1/4 male
|
|
|
P3
|
1/4 NPT male
|
|
|
P4
|
M10*1
|
|
|
P5
|
Customization
|
|
|
Typical model:WNK811 GFA6O3P1
|
|
|
