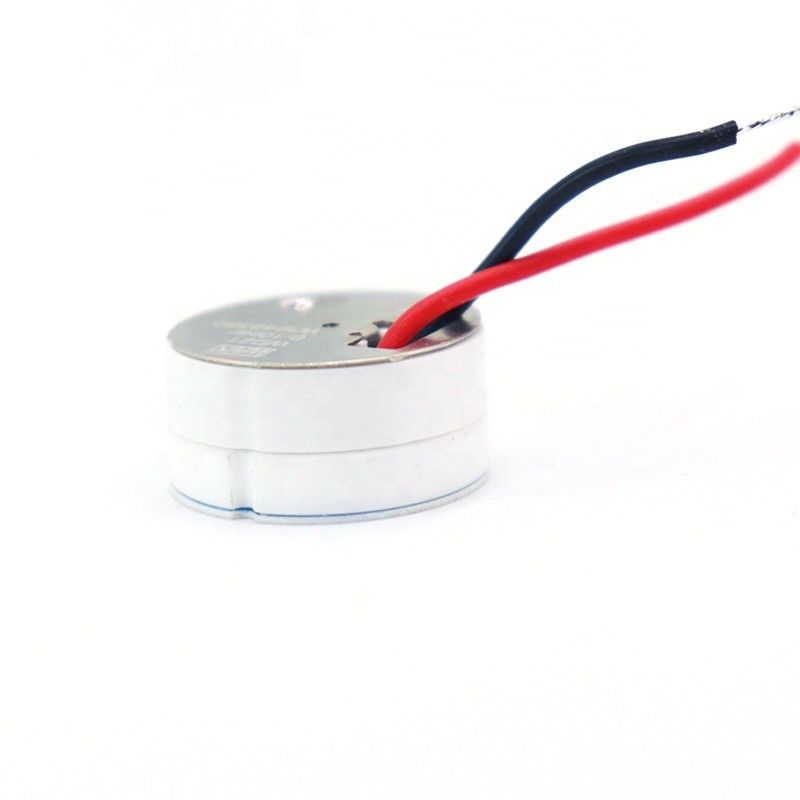

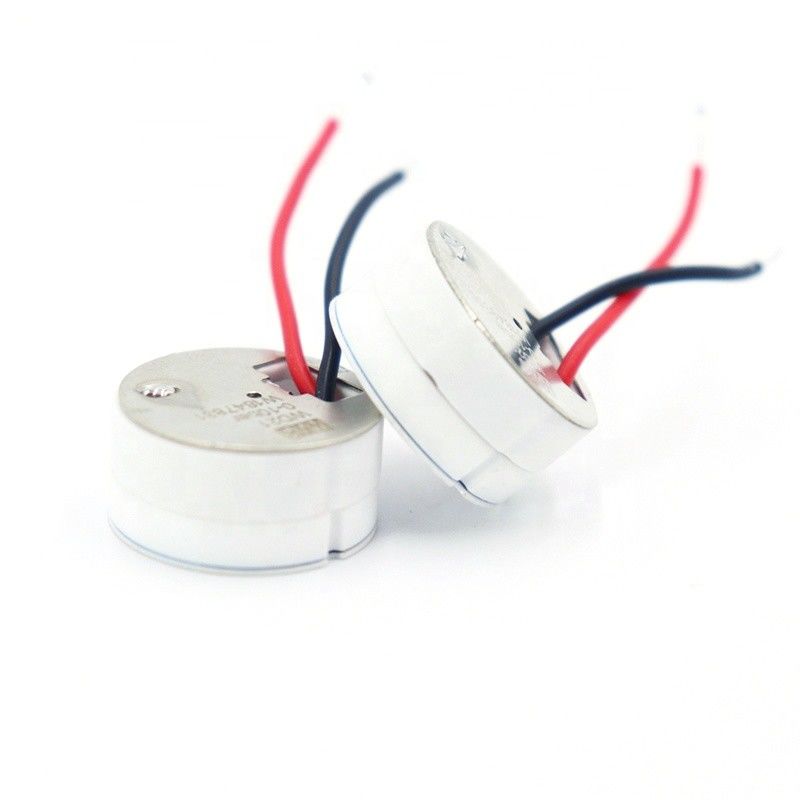

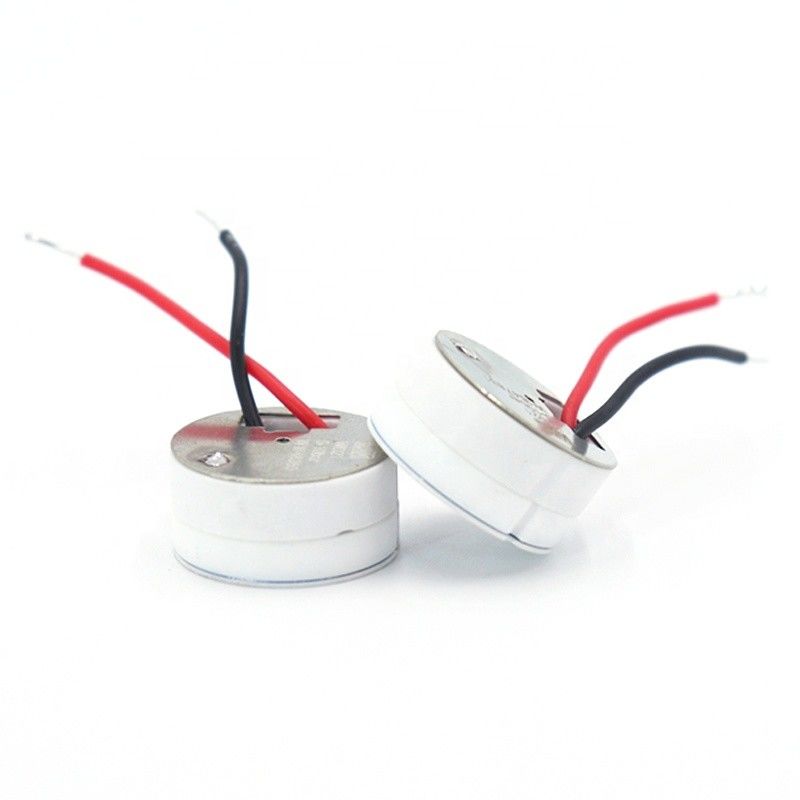

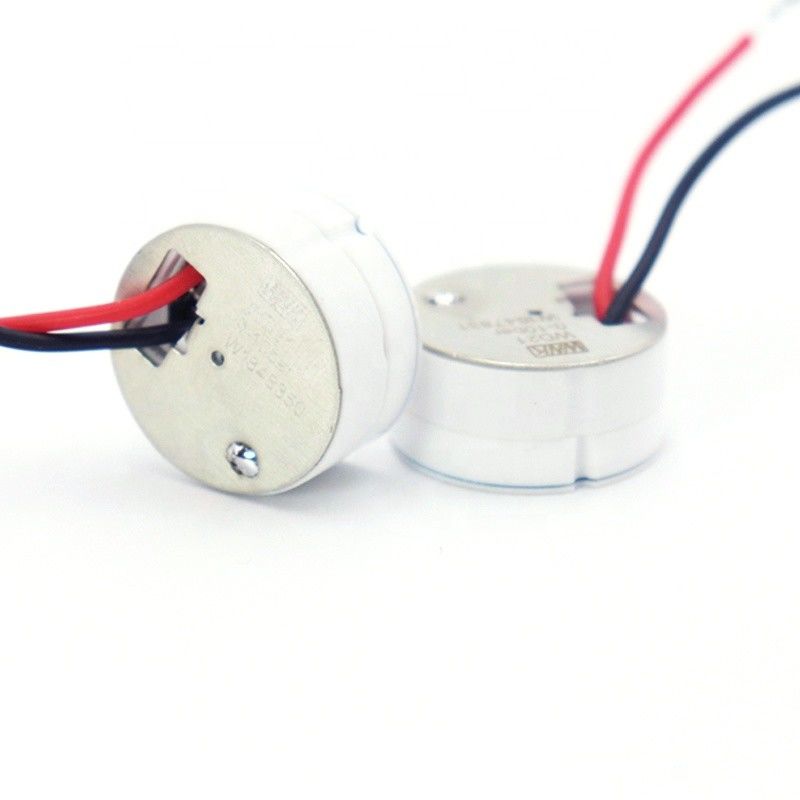

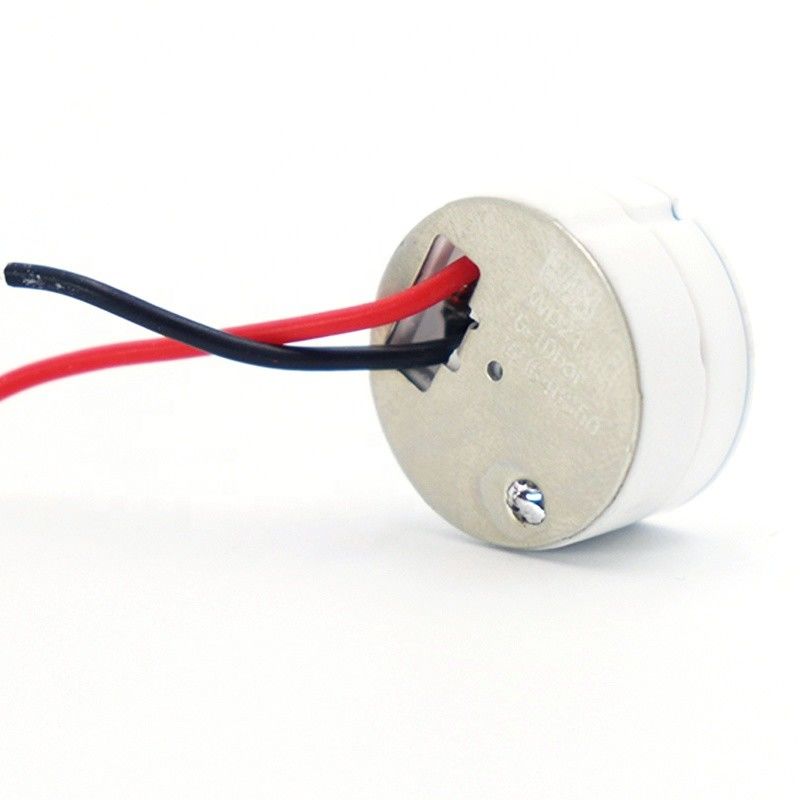

WD21 Electronic Pressure Sensor , 1% dry Ceramic Pressure Transmitter
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WD21 |
Payment & Shipping Terms:
Price: | $6.00 - $15.00/Pieces |
---|---|
Packaging Details: | 100 pcs per master carton; |
Supply Ability: | 2000 Piece/Pieces per Month |
Detail Information |
|||
Interface Type: | I2C, SPI | Accuracy: | ±0.5%, ±1%, |
---|---|---|---|
Pressure Range: | 0-400Kpa~10MPa | Sensor Material: | Al2O3 |
Power Supply: | 3.3V, 5V, 12V, 24V | Measured Media: | Liquid, Gas And Steam |
Output: | 4-20mA/0-5V/0-10V/0.5-4.5vdc | Total Error Band: | ±1.0% |
Burst Pressure: | P*10 | Housing Material: | 316L |
Port: | Shanghai | ||
High Light: | WD21 Electronic Pressure Sensor,Dry Ceramic Pressure Transmitter,1% Ceramic Pressure Transmitter |
Product Description
WD21 Digital I2C/SPI Output Pressure Sensor
W21 series pressure sensor core is a dry ceramic capacitive pressure sensor which is made of special method by using ceramic material. The ceramic is a recognized material with high elasticity, corrosion resistance, abrasion resistance, impact resistance and vibration. The thermal stability of the ceramic can make its operating temperature range up to -40 to 135 ℃, and has a high precision measurement, high stability. Its anti-overload capacity of up to 100 times the range, completely solve the other types of sensors in the small range of poor overload capacity of the shortcomings, which in addition to the general sensor range, the most characteristic is its positive and negative gauge pressure function, Such as: ± 10kPa, ± 1MPa and so on. Ceramic capacitive pressure sensor with high output, wide range, especially suitable for the manufacture of high-performance industrial control pressure transmitter and adapt to the harsh environment of the pressure measurement.
Features
• Dry ceramic capacitive pressure sensor;
• Rugged ceramic capacitor sensitive diaphragm;
•Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;
• Rugged ceramic capacitor sensitive diaphragm;
•Excellent resistance to corrosion and abrasion resistance;
• Adapt to pollution and corrosive environments;
• Flat large round diaphragm, easy to install;
• Rapid response, no hysteresis;
• Wide operating temperature range;
• Sensor-specific signal conditioning;
• 0.5 ... 4.5V voltage output or I2C digital output, 4-20mA output;
• Accurate, stable and reliable;
Specifications





Product Show



WNK Pressure Sensor Series
WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor
Hot Products

Our Company


Packing&Shipping


FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery?
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery?
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
