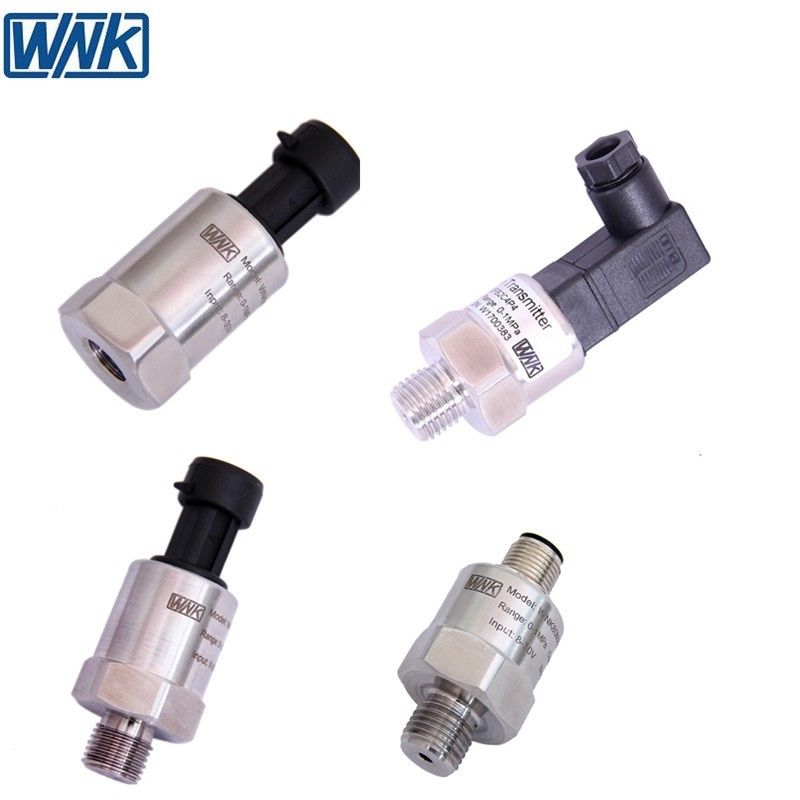

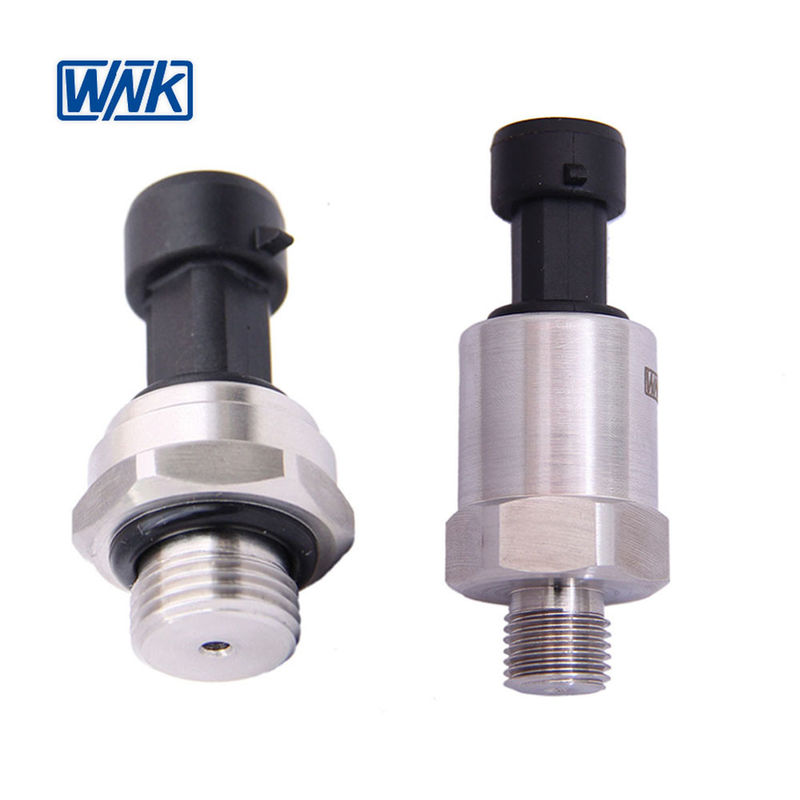

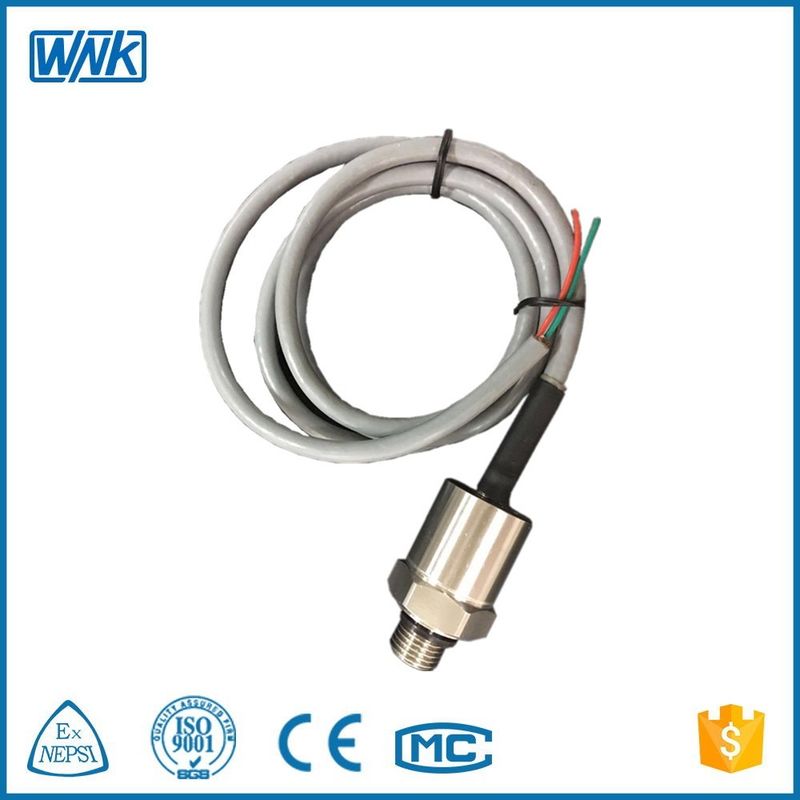

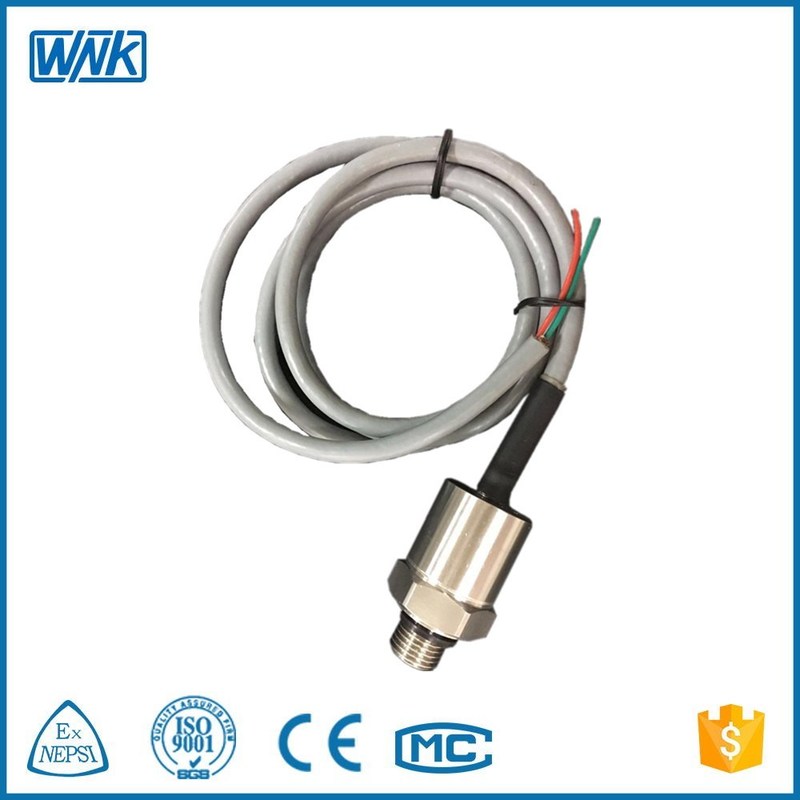

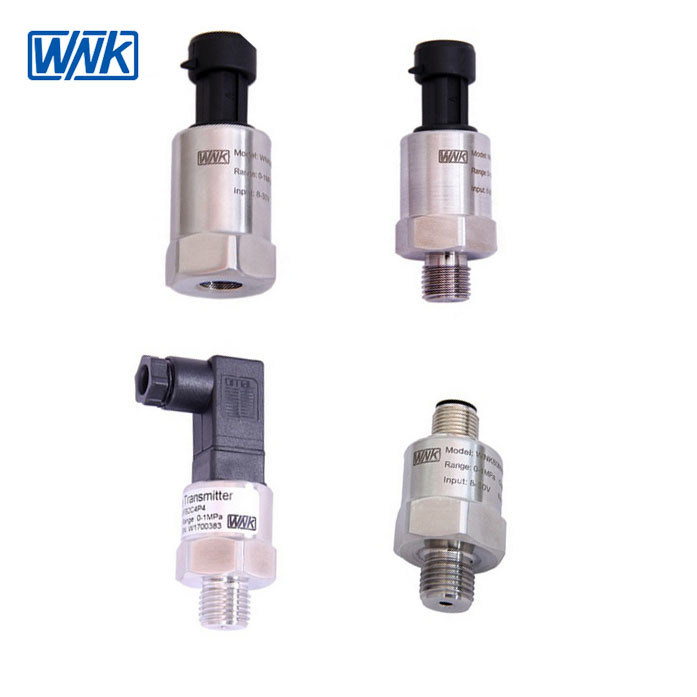

IP67 3.3 V Pressure Sensor For IOT Digital SPI IIC I2C Output
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK811 |
Payment & Shipping Terms:
| Price: | $8.90 - $29.90/Pieces |
|---|---|
| Packaging Details: | paper carton or as per clients' requirement |
| Supply Ability: | 30000 Piece/Pieces per Month 3.3V pressure transducer |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Pressure Range: | -100kpa ~ 10MPa | Accuracy: | 0.5%FS, 1%FS |
| Output: | I2C, SPI, 0.2-2.9V, 4~20mA, 0.5-4.5V And Etc | Operation Temperature: | -40~130C |
| Electrical Connector: | DIN, Packard, Direct Cable, M12X1, Deustch | Ingress Protection: | IP67 |
| Respond Time: | ≥1ms | Overload: | 2x FS |
| Proof Pressure: | 3x FS | Pressure Port: | G1/4, G1/2 ,1/8NPT, 1/4NPT, Other |
| Port: | Shanghai, Tianjin, | ||
| High Light: | IOT 3.3 V Pressure Sensor,IIC 3.3 V Pressure Sensor,SPI 3.3 v pressure transducer |
||
Product Description
Low Cost Digital SPI IIC I2C Output 3.3V Pressure Sensor For IOT

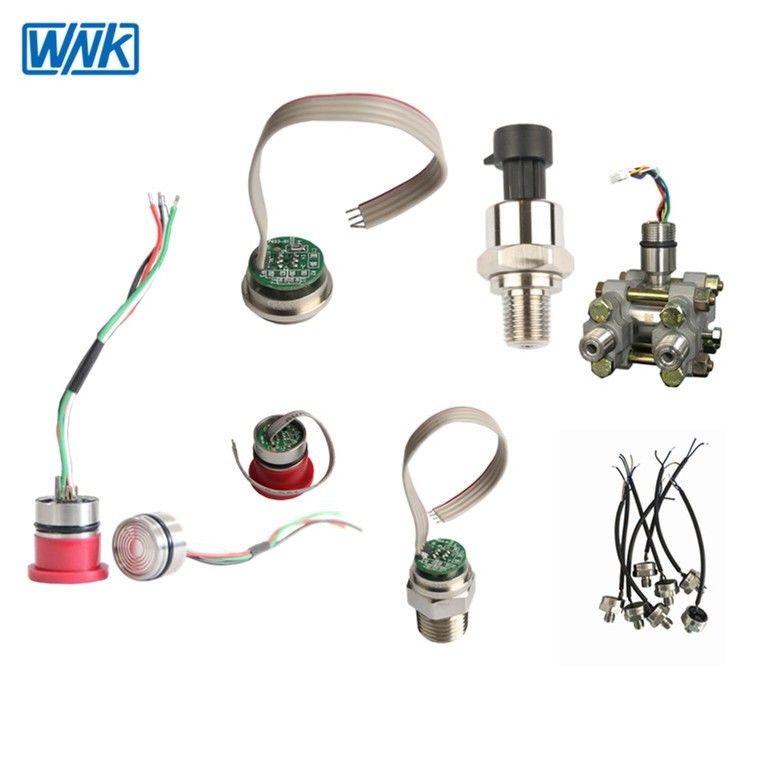

WNK811 is a series of high performance compact pressure transducer, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 10 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Specifications
| Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
| Pressure Range | -100Kpa - 60Mpa |
| Accuracy | 0.2%, 0.5%, 1.0% FS |
| Power Supply | 5VDC, 12-32VDC |
| Measuring Media | Gas, Steam, Liquid, Oil |
| Output | |
| Analog | 4-20mA, 0.5-4.5V, Other |
| Digital | I2C, SPI |
| Operation Condition and Temperature | |
| Compensation Temperature | -40...75℃ |
| Medium Temperature | -45 ... 85℃ |
| Storage Temperature | -45 ... 85℃ |
| Material and Protection | |
| Ingress Protection | IP65, IP67 |
| Housing Material | 304SS, 316L |
| - Automobile, Compressor and Refrigeration Industry |
| - Engineering machinery |
| - Pressure control and monitor |
| - Water treatment system |
| - Hydraulic and Pneumatics |

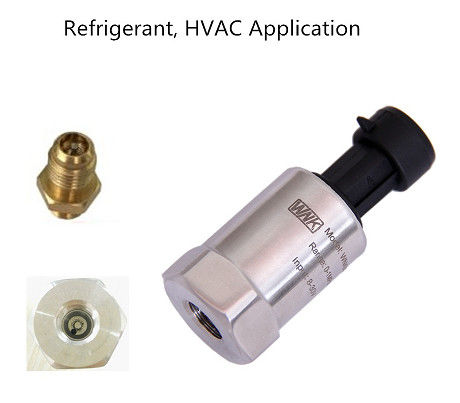

| - HAVC and BAS Control |
| - Pump, fitness equipment, household appliances |
| - Factory Automation |
| - Fluid Control and Instrumentation Systems |
Pressure Port
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
If any other customized pressure applications or custom specifications required, please contact us
