316L Electronic Pressure Sensor , WNK Diffused Silicon SPI Pressure Transducer
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WD19 |
Payment & Shipping Terms:
| Price: | $10.00 - $15.00/Pieces |
|---|---|
| Packaging Details: | Each piece into individual carton with foam protection<br>Or as per client's request |
| Supply Ability: | 5000 Piece/Pieces per Month mems pressure sensor |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Medea: | Air, Gas, Steam, Water, Liquid | Output Signal: | I2C, SPI, 0.5-4.5V, 4-20ma, Customization |
| Accuracy: | ±0.25%, ±0.5% FS, ±1.0% FS, | Pressure Range: | 0- 10KPa ~60 MPa |
| Total Error Band: | ±1.0% | Burst Pressure: | 10xP |
| Power Supply: | 3.3V, 5V, 12V, 24V | Housing Material: | 316L Stainless Steel |
| Sensor Contact: | 316L | Sensor Type: | Silicon Pressure Sensor Mems Pressure Sensor |
| Port: | Shanghai, Ningbo, Guangzhou, Shenzhen | ||
| High Light: | 316L Electronic Pressure Sensor,WNK SPI Pressure Transducer,Diffused Silicon SPI Pressure Transducer |
||
Product Description
0.5-4.5V 4-20mA I2C SPI Diffused Silicon Oil Filled Pressure Sensor

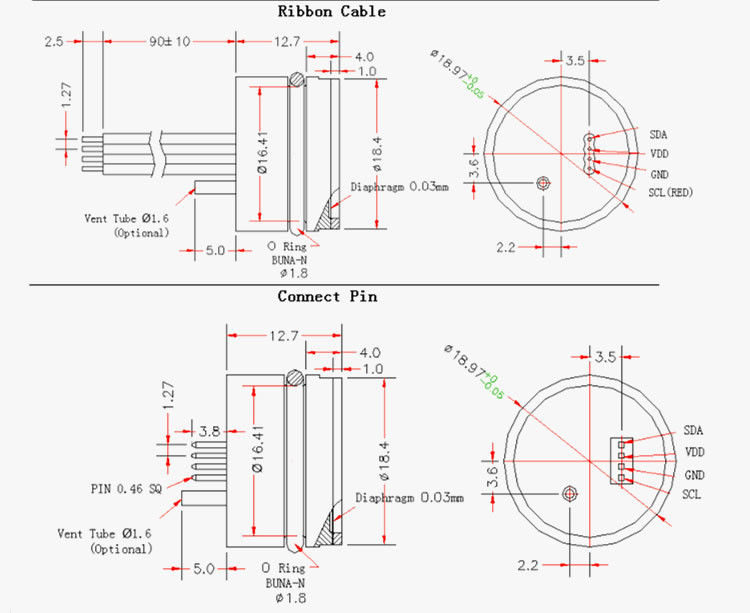

WD19 series is a 14-bits digital output pressure sensor, supporting I2C interface protocol. The external pressure is passed to sensitive elements through 316L stainless steel diaphram and internal silicon oil. Thus WD19 sensors can be used to measure all pressure media compatible with 316L stainless steel.
The series sensor realizes pressure and temperature calibration and compensation via a specially customized integrated circuit. It outputs 10%-90% digital signal as well as digital output of temperature signal.
- Applications with limited mounting space
- Design-in solutions
- For pressure measurement of gases, steam or liquids and water in all areas
- Liquid level, volume or mass measurement
- Can be integrated into a variety of user-defined solutions.
• The pressure sensor can be delivered either with or without linear temperature compensation.
•Excellent resistance to corrosion and abrasion resistance;
• Rapid response, no hysteresis;
• Wide operating temperature range: -20C ~ 85C
• Multiple output:I2C, SPI, and 0.5-4.5VDC, 4-20ma for option
• Accurate, Stable and Reliable
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
