Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WD19

Payment & Shipping Terms:

Price: $10.00 - $15.00/Pieces
Packaging Details: Each piece into individual carton with foam protection <br>Or as per client's request
Supply Ability: 2000 Piece/Pieces per Week i2c pressure sensor
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Accuracy: 0.1, 0.25, 0.5, 1.0 Power Supply: 10.5-55V DC, 10.5-30V DC
Output: 4~20mA, 0~20mA, 0~10mA, 0~20V, 1~5V Media: Liquid, Gas, Steam
Type: Gauge, Absolute, Vacuum, Negative Pressure Range: 0-10Kpa~7Mpa
Operating Temperatures: -20~85 ℃ Product Name: Low Cost I2C SPI Output Digital Pressure Sensor For Water Gas
Port: Shanghai
High Light:

SPI Digital Water Pressure Sensor

,

I2C Digital Water Pressure Sensor

Product Description

Specifications

Low Cost I2C SPI Output Digital Pressure Sensor For Water Gas

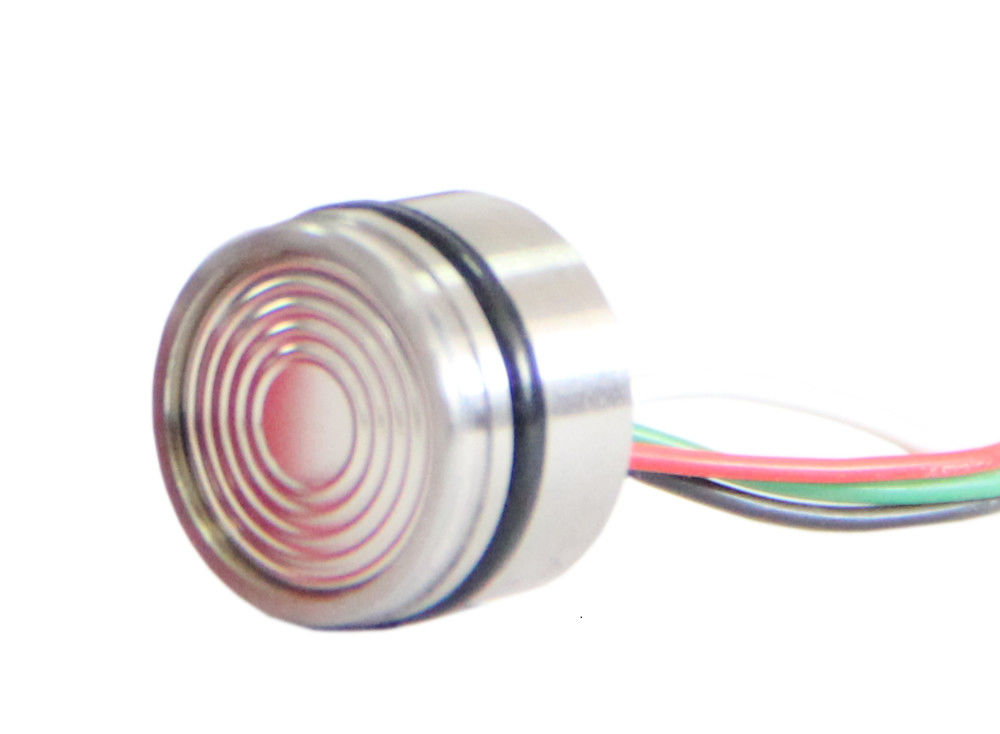

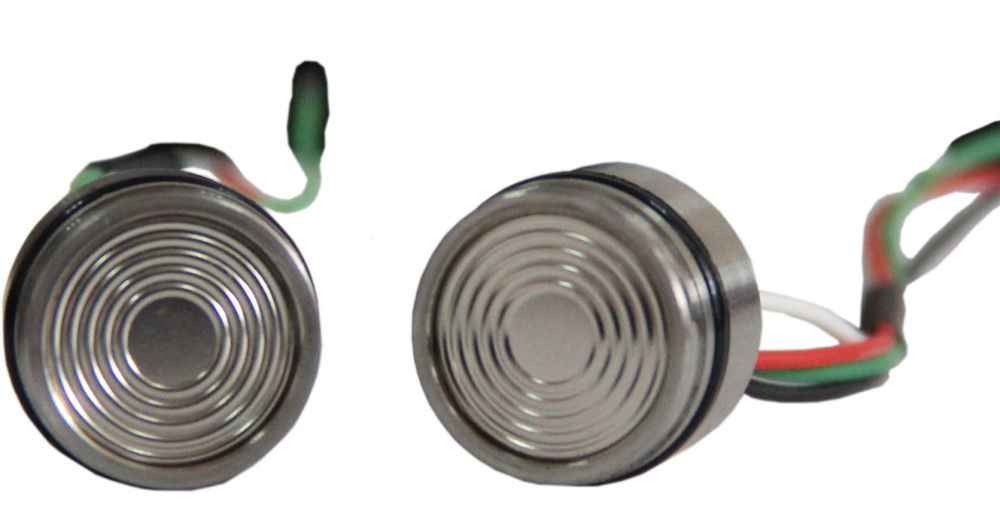

D19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing.

The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.



Features

High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI



WNK Pressure Sensor Series


WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor

Technical Data

Digital  i2c pressure sensor for gas liquid steam pressure transmitter



I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 0

 Dimensional Drawing
 I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 2
I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 4I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 6I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 8I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 10

Hot Product



I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 12





Company Information

I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 14I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 16I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 18I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 20I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 22I2C SPI Output Digital Water Pressure Sensor Standard Mounting Size 24




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
