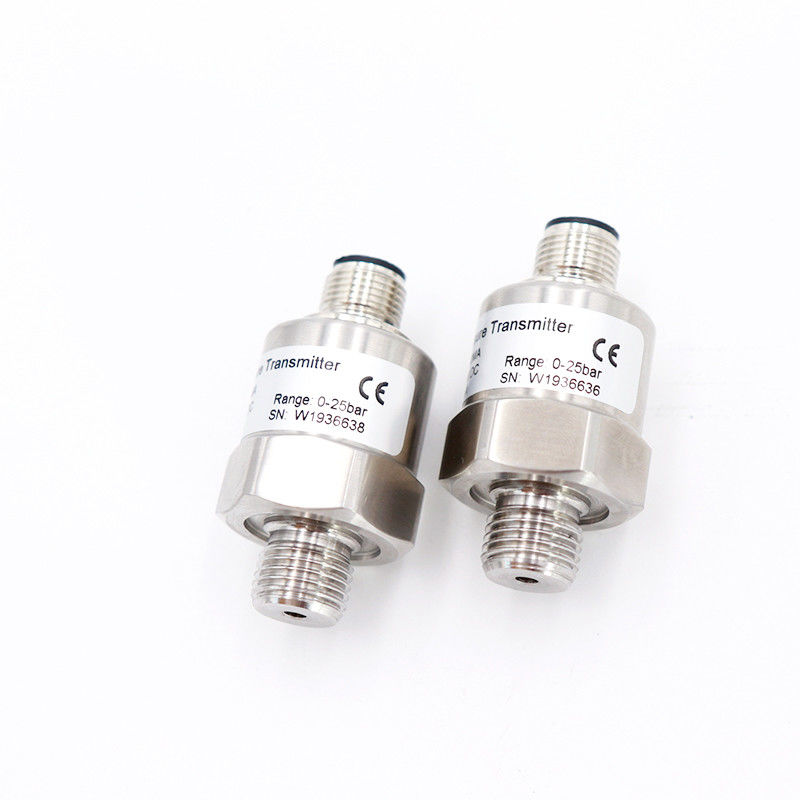

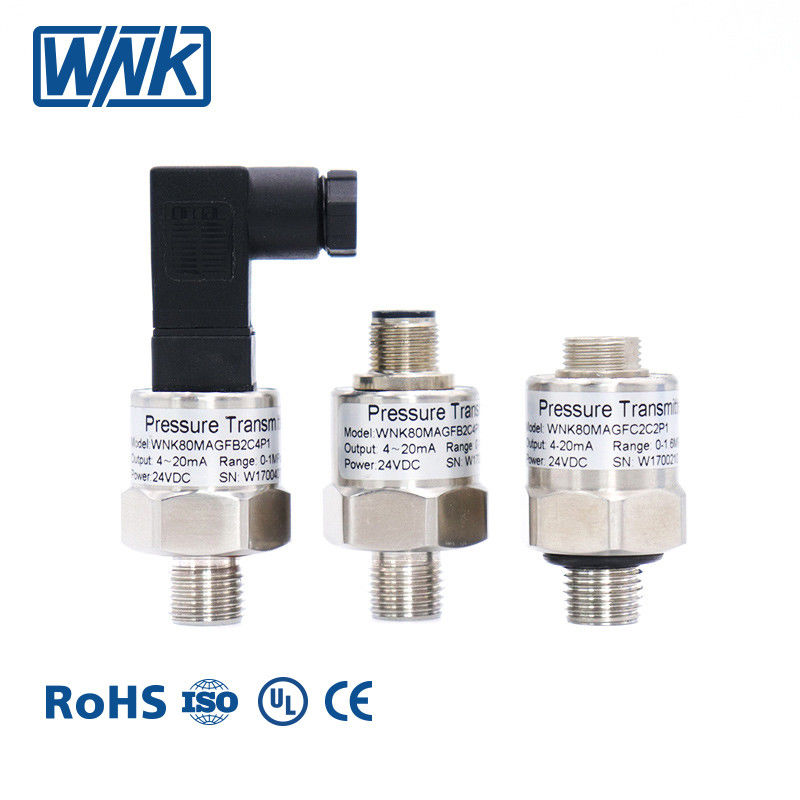

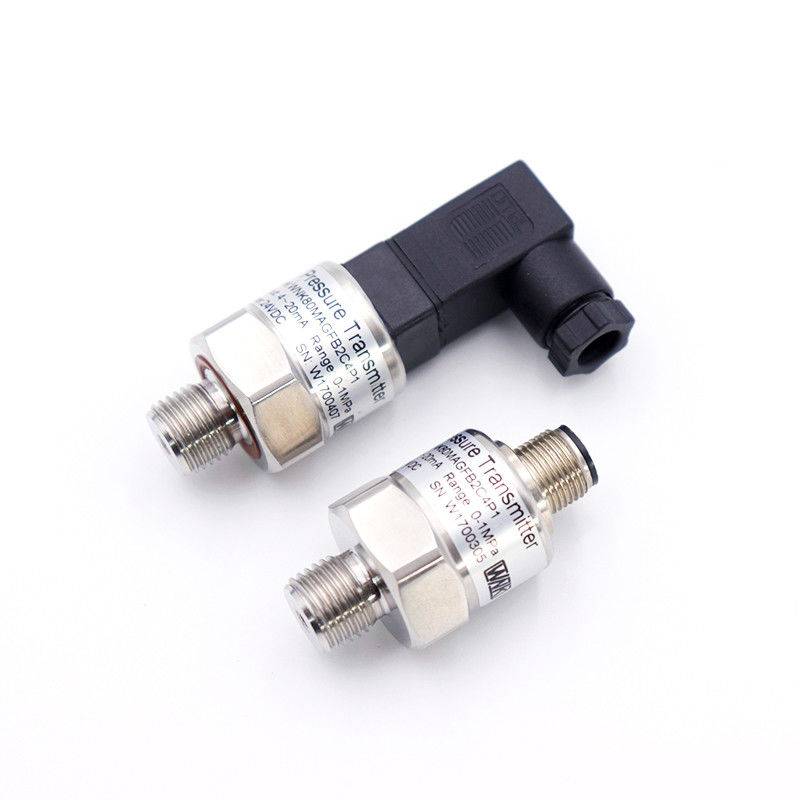

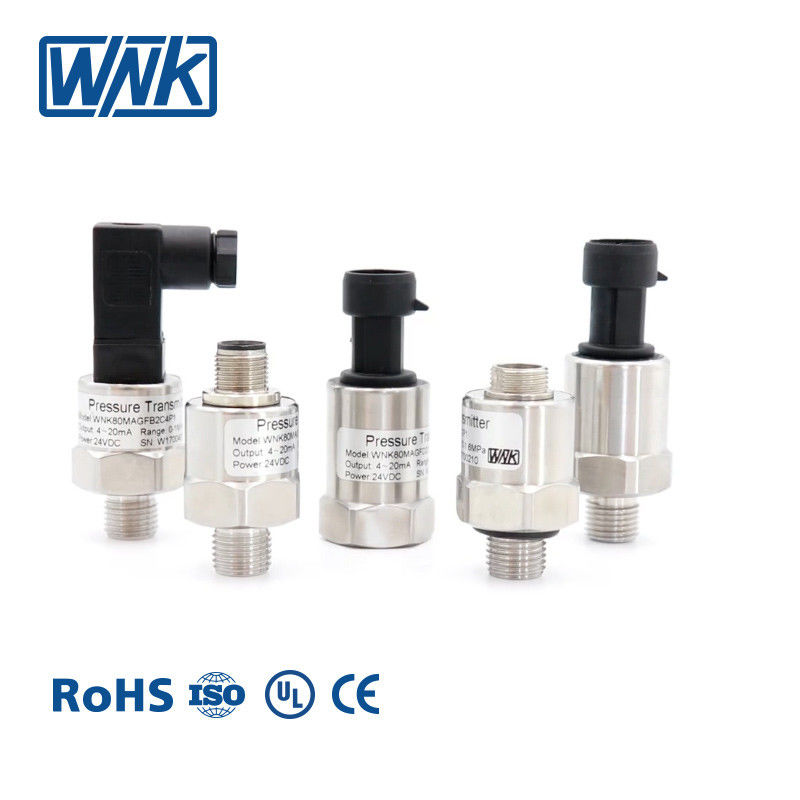

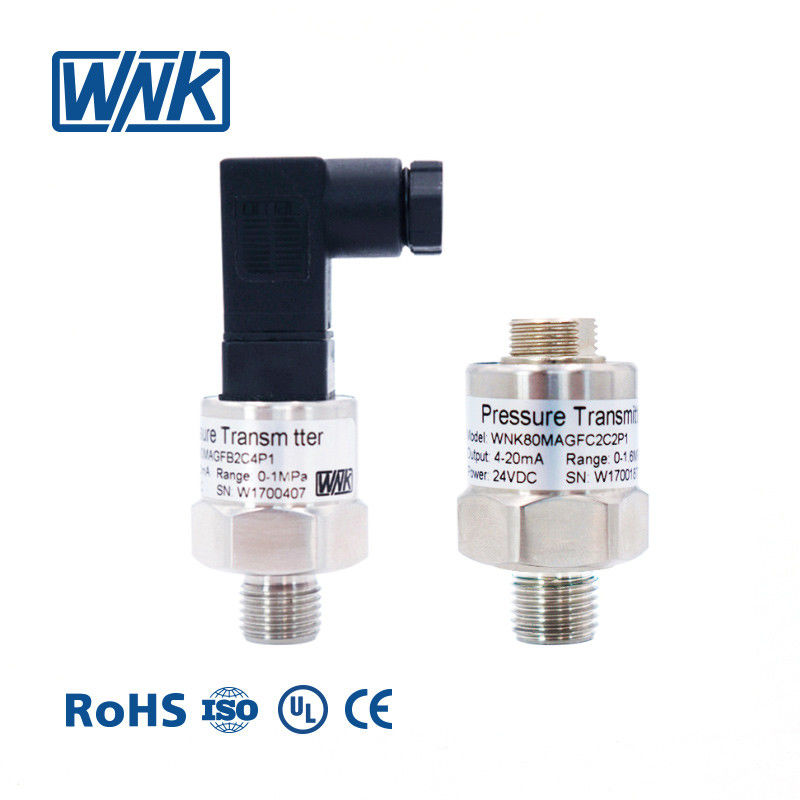

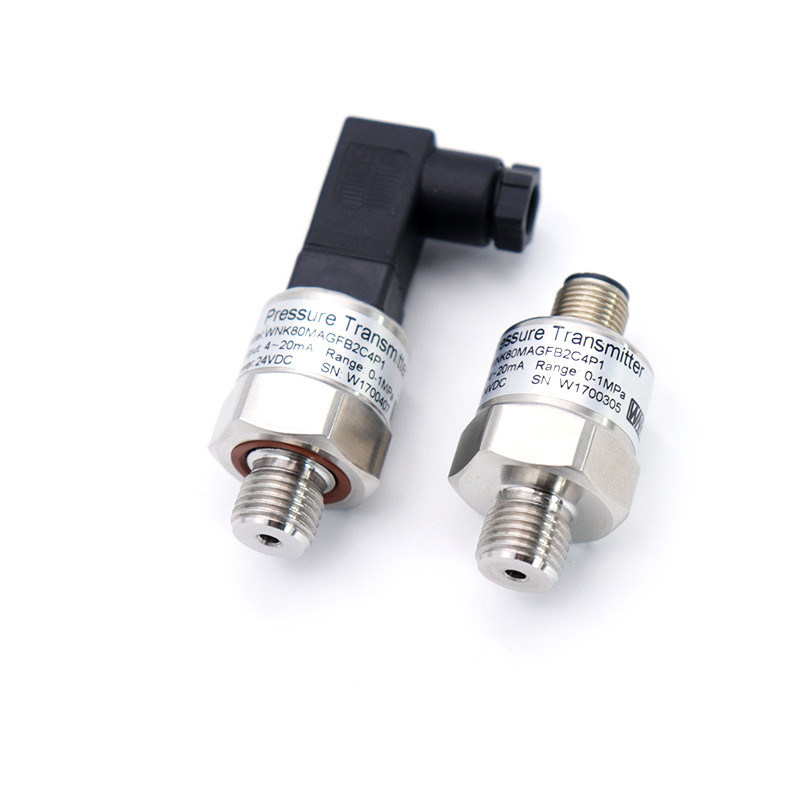

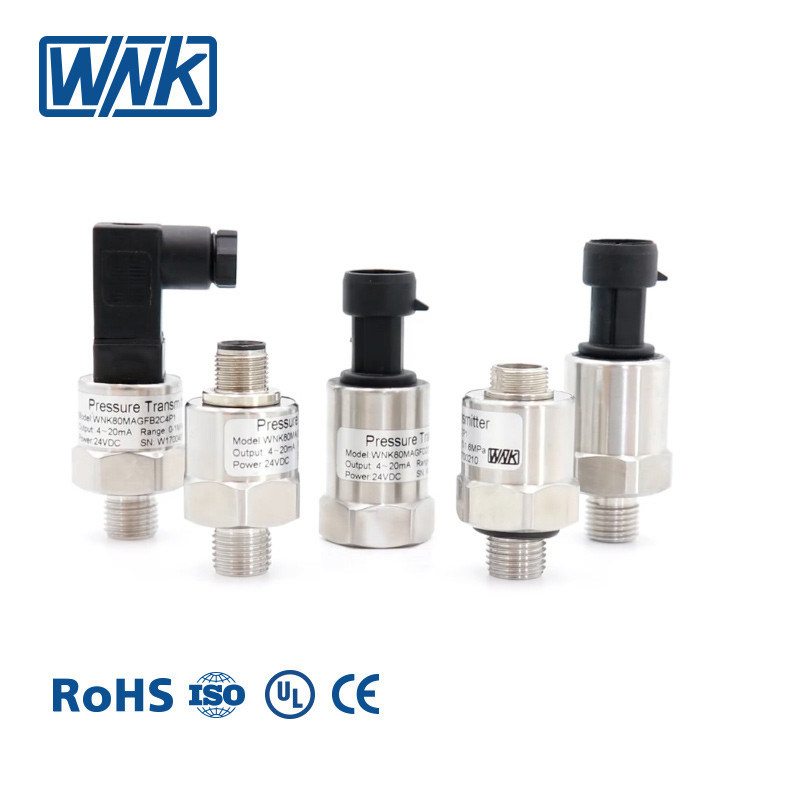

CE Electronic Water Pressure Sensor / Absolute Pressure Transmitter
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE, ROHS |
| Model Number: | WNK80MA |
Payment & Shipping Terms:
| Price: | $12.00 - $26.00/Pieces |
|---|---|
| Packaging Details: | Each waterproof pressure sensor in one inner paper box with foam protection |
| Supply Ability: | 2000 Piece/Pieces per Month Absolute Pressure Transmitter |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Liquid, Gas And Steam | Power Supply: | 3.3V, 12-30V,5V And So On |
| Output Singal: | 0.5-4.5V, 0-5V, 4-20mA, I2c, Customization | Housing Material: | 304SS |
| Operating Temperature:: | -20~85 ℃ | IP Garde: | IP65/IP67 |
| Pressure Range: | -100KPa-0.5-15Mpa-60Mpa | Certificate: | CE |
| OEM Service: | OEM, ODM, Customization Available | Port: | Shanghai, Ningbo, Shenzhen |
| High Light: | CE Electronic Water Pressure Sensor,1%FS Absolute Pressure Transmitter,50MPa Absolute Pressure Transmitter |
||
Product Description
4-20ma 0.5-4.5V Water Pressure Sensor Absolute Pressure Transmitter Price
|
Applicable media
|
Liquid, gas and steam
|
|
Pressure range
|
0-20kPa~50MPa
|
|
Cell
|
Ceramic capacitive pressure sensor
|
|
Pressure measurment
|
Gauge Pressure, absolute pressure and sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
1%F.S.
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
Electrical connection
|
Parkard, Cable outlet, M12, mini DIN43650
|
|
Mechanical connection
|
G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
|
|
Housing material
|
304 stainless steel(316SS for inner core)
|
|
Protection
|
IP65
|
WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dryceramic capacitive pressure sensor. It has features of anti corrosion, anti-wear, shock resistance and vibration resistance. lts anti-overload capacity is 5~10 times of therange, completely solved poor overload in small range of other sensors. ln addition to general ranges of normal sensors, itsmost outstanding characteristic is the positive and negativegauge pressure function. As high output and wide range of itscore ceramic capacitive sensor, WNK8OMA is especially suitablefor harsh industrial environment pressure measurement.

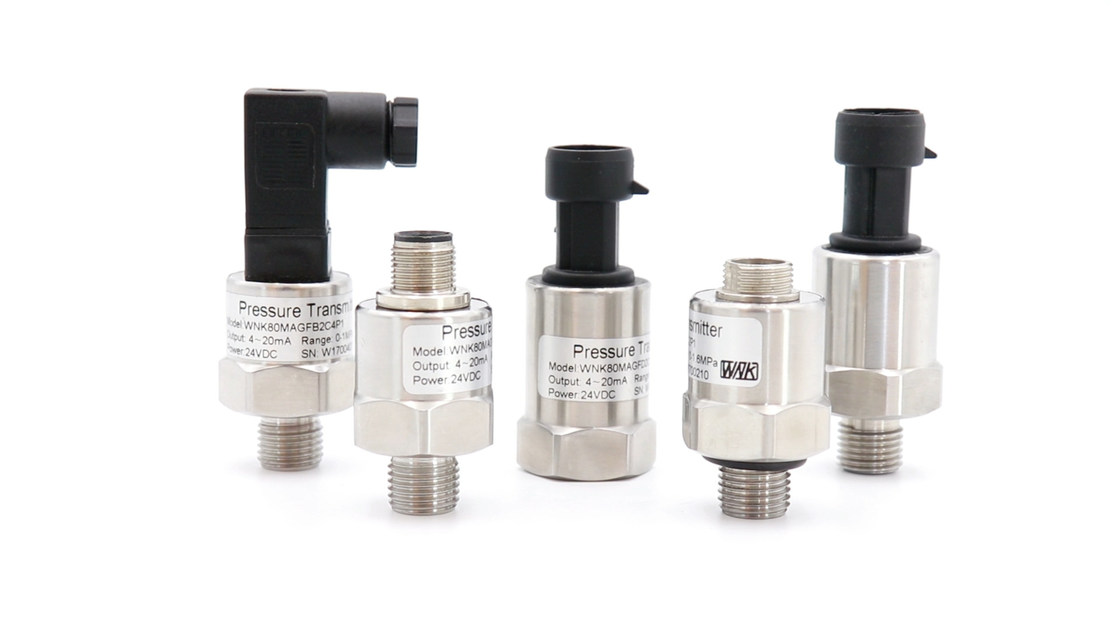

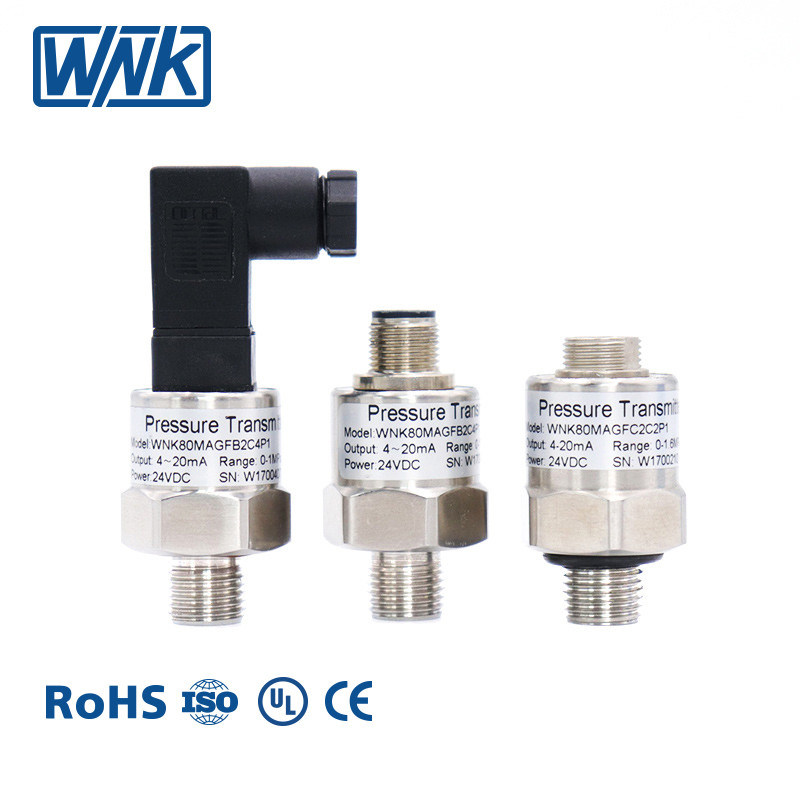

Product Show
