5V 24VDC Oil Fuel Pressure Sensor in automobile high performance ROHS
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE, ROHS |
| Model Number: | WNK80MA |
Payment & Shipping Terms:
| Price: | $19.00/Pieces >=1 Pieces |
|---|---|
| Packaging Details: | paper carton or as per clients' requirement |
| Supply Ability: | 2000 Piece/Pieces per Month pressure sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Pressure Range: | 0.5-15Mpa | Comprehensive Accuracy: | 0.5, 1.0 |
| Output: | 4~20mA; 0-10V; 1~5V | Protection Class: | IP65 |
| Housing Material: | Ss316 | Approvals: | Ex-proof, ISO9001-2015 |
| Pressure Type: | Gauge, Sealing, Negative Pressure | OEM Service: | OEM, ODM, Customization Available |
| Application: | Oil&gas, Petrol, Petrochemical, Chemical Industry | Product Name: | Low Cost 4-20mA 5V/24VDC Auto Engine Oil Fuel Pressure Sensor |
| Port: | Shanghai | ||
| High Light: | 24VDC Oil Fuel Pressure Sensor,5V Oil Fuel Pressure Sensor,ROHS pressure sensor in automobile |
||
Product Description
Low Cost 4-20mA 5V/24VDC Auto Engine Oil Fuel Pressure Sensor
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.
|
Applicable media
|
Liquid, gas and steam
|
|
Pressure range
|
0-15MPa
|
|
Cell
|
Ceramic capacitive pressure sensor
|
|
Pressure measurment
|
Gauge Pressure, absolute pressure and sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
|
|
Power supply
|
24VDC/12VDC/5VDC/3.3V
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
1%F.S.
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
Electrical connection
|
Parkard, Cable outlet, M12, mini DIN43650
|
|
Mechanical connection
|
G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
|
|
Housing material
|
304 stainless steel(316SS for inner core)
|
|
Protection
|
IP65
|

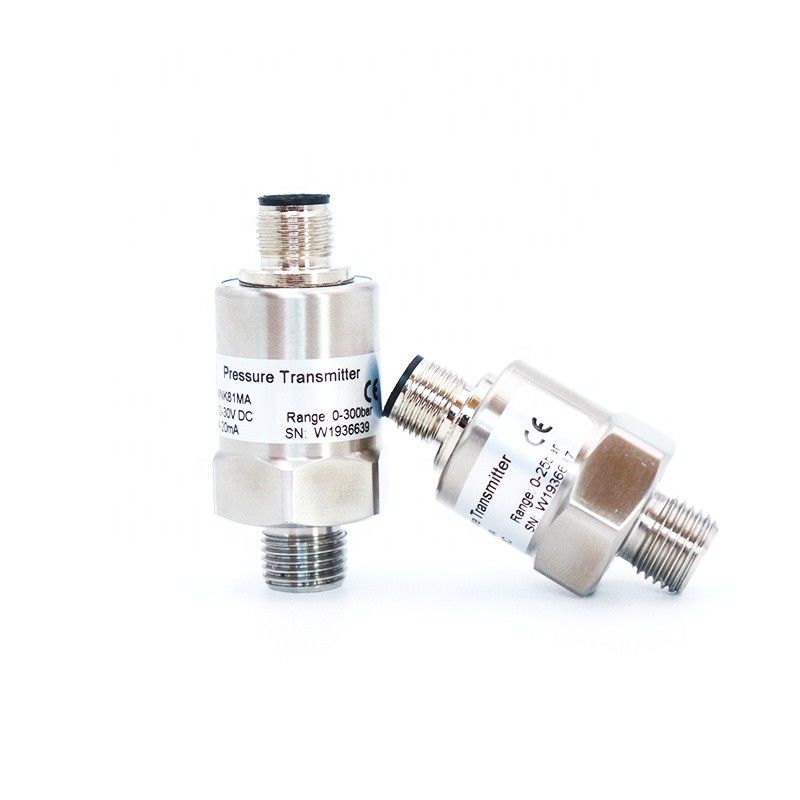

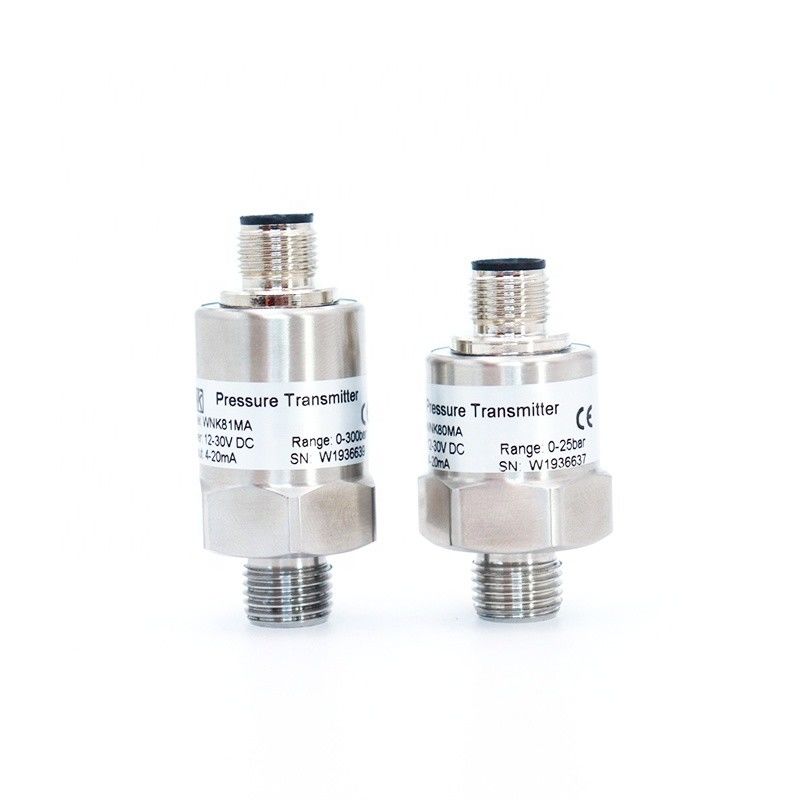

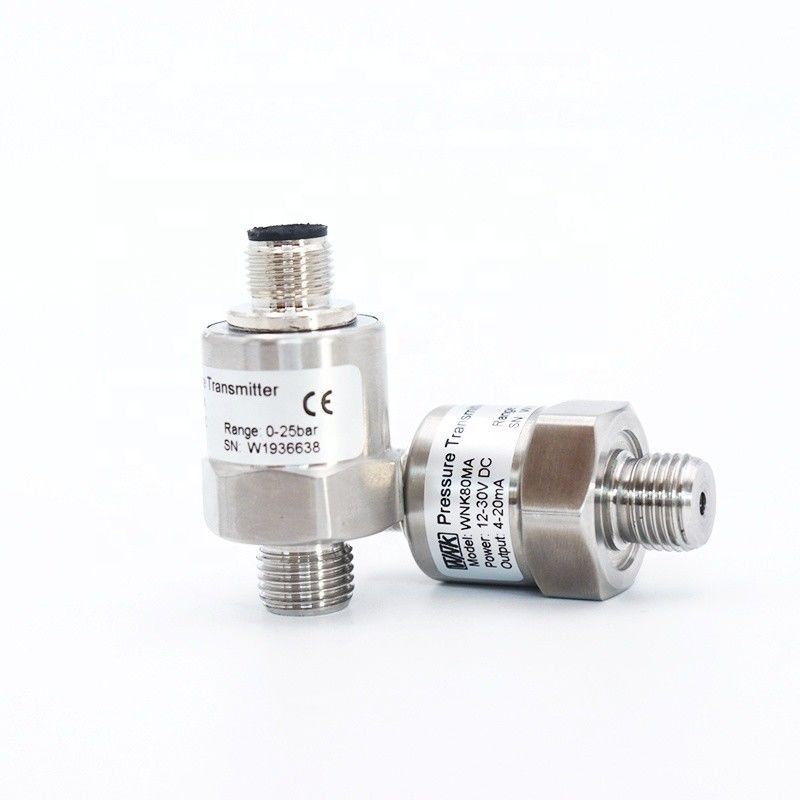

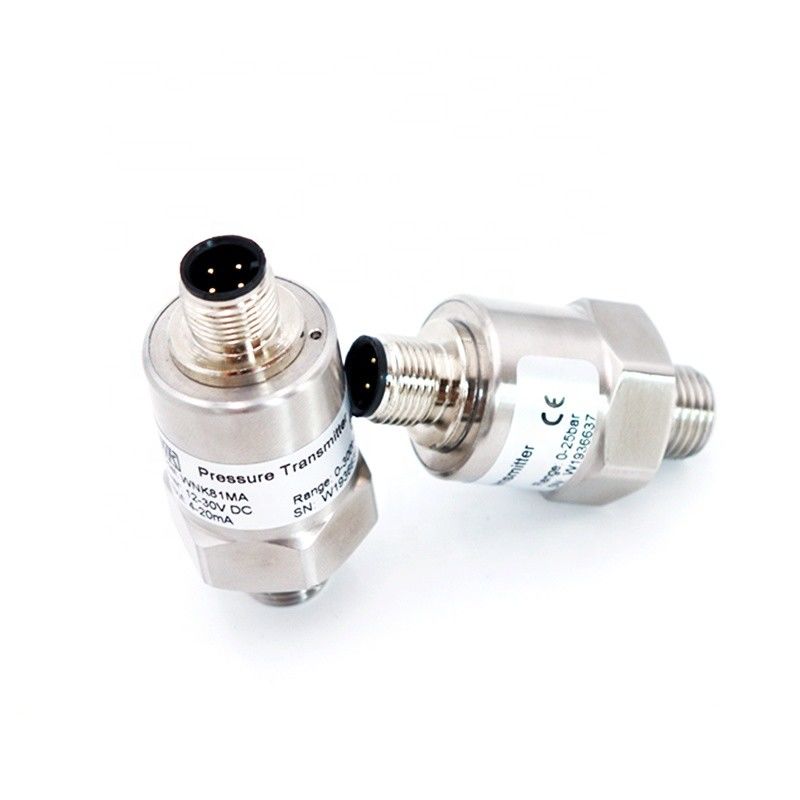

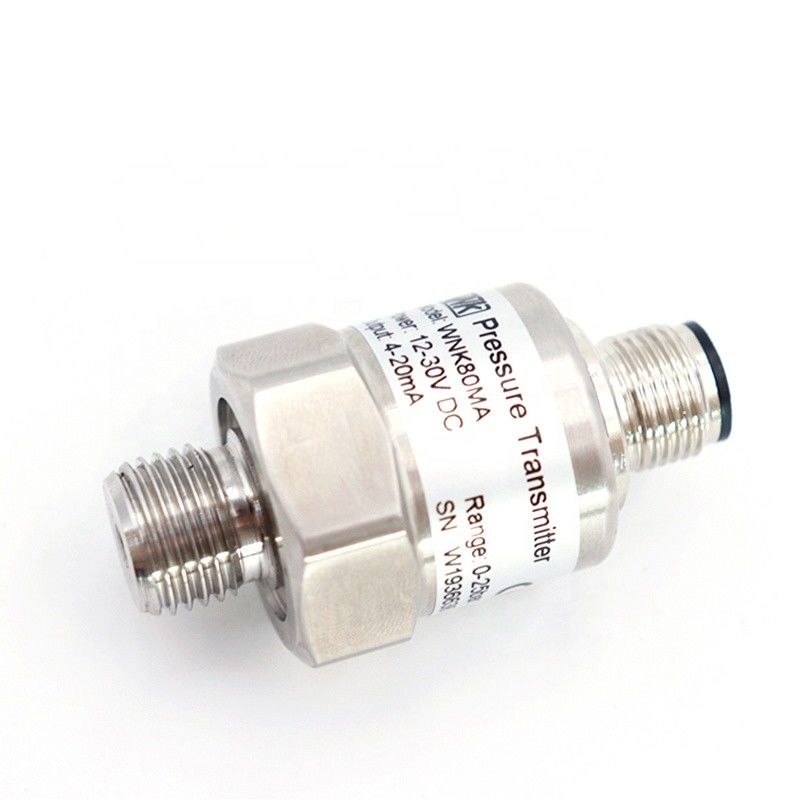

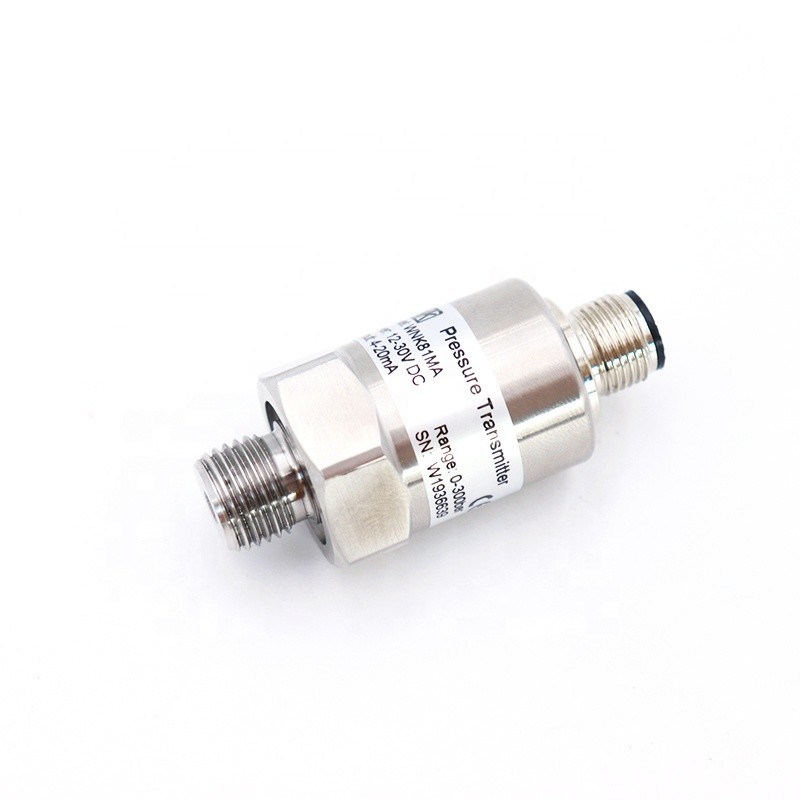

Product Show
Our Company
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
