Diffused Silicon Electronic Air Pressure Sensor I2C SPI Output signal
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WD19 |
Payment & Shipping Terms:
| Price: | $10.00 - $15.00/Pieces |
|---|---|
| Packaging Details: | 100 pcs per master carton; |
| Supply Ability: | 2000 Piece/Pieces per Month 4-20mA pressure sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Output Signal: | I2C, SPI | Pressure Range: | 0- 400 KPa ~10 MPa |
| Burst Pressure: | 10xP | Housing Material: | 316L Stainless Steel |
| Sensor Type: | Diffused Silicon Oil MEMS Pressure Sensor | Measured Medeia: | Air, Gas, Steam, Water, Liquid |
| Accuracy: | ±0.5% FS, ±1.0% FS, | Total Error Band: | ±1.0% |
| Power Supply: | 3.3V, 5V, 12V, 24V | Sensor Contact: | 316L |
| Port: | Shanghai/Ningbo | ||
| High Light: | Diffused Silicon Electronic Air Pressure Sensor,I2C Electronic Air Pressure Sensor,SPI diffused silicon pressure sensor |
||
Product Description

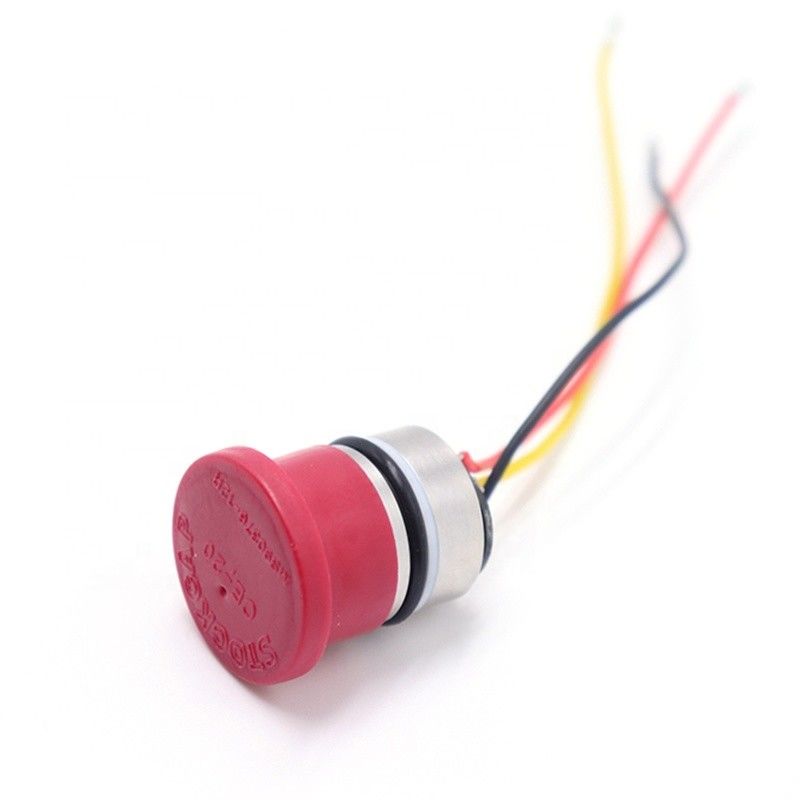

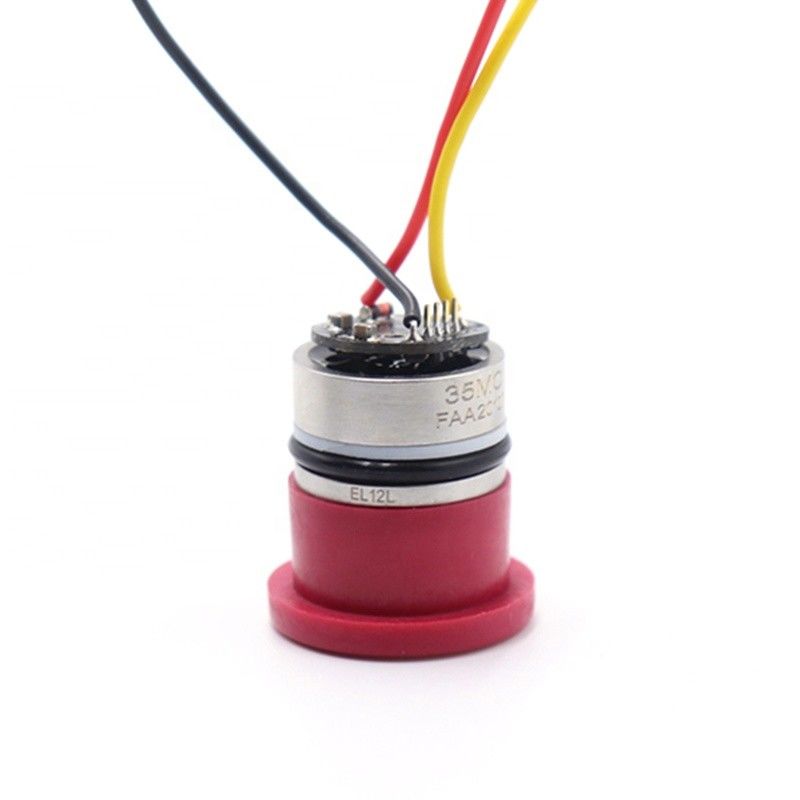

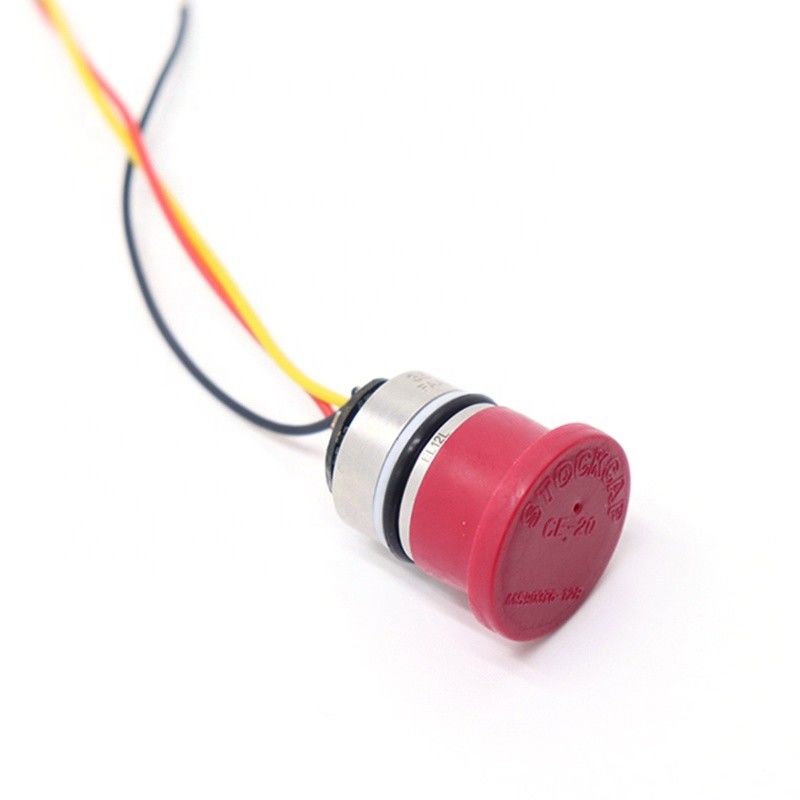

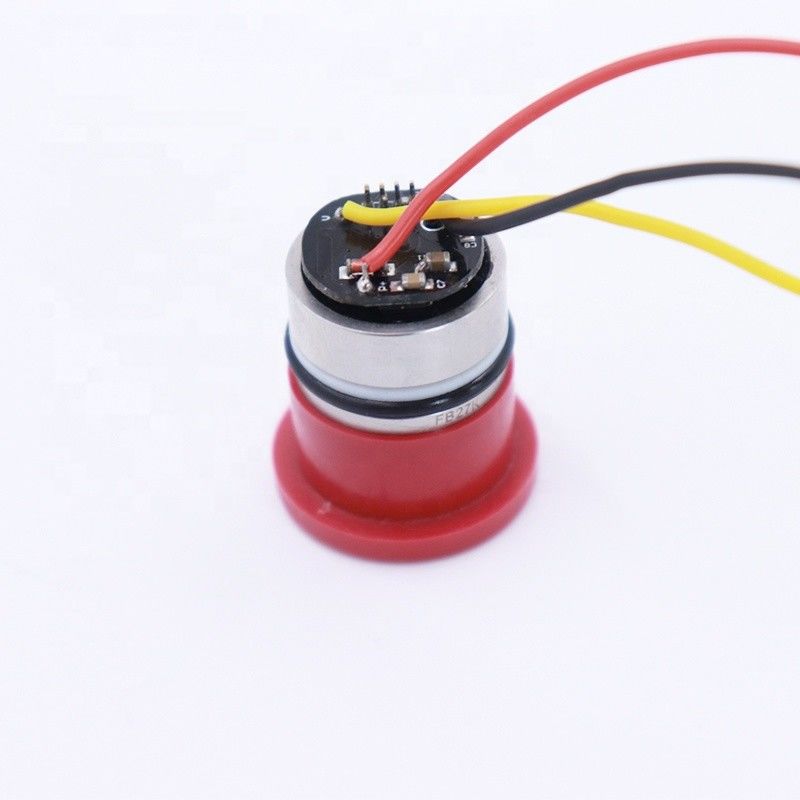

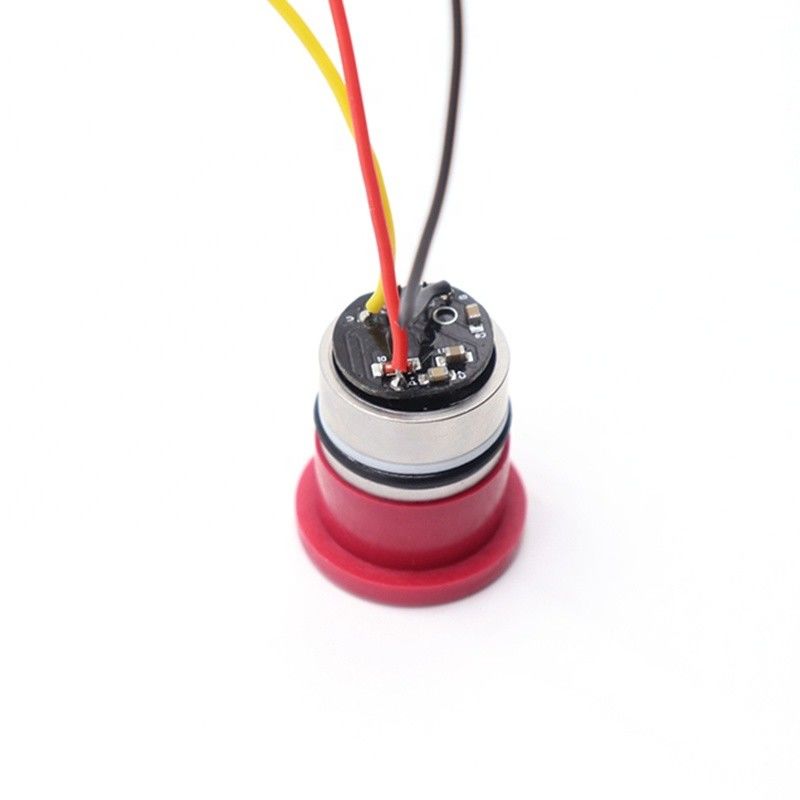

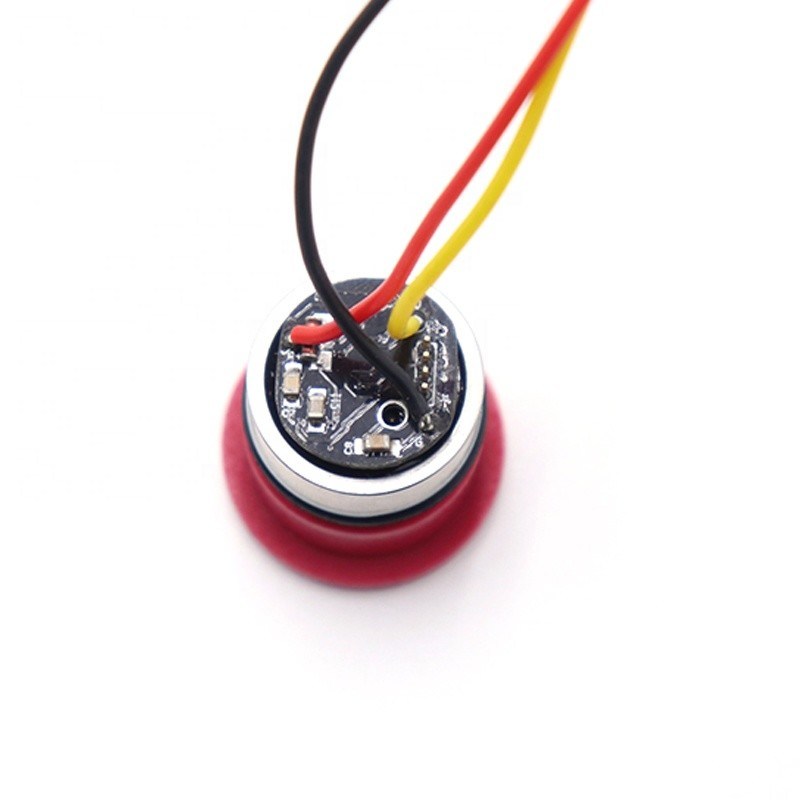

WD19 Digital I2C/SPI Output Pressure Sensor
WD19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.
| Features |
High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI
| WNK Pressure Sensor Series |
WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor
