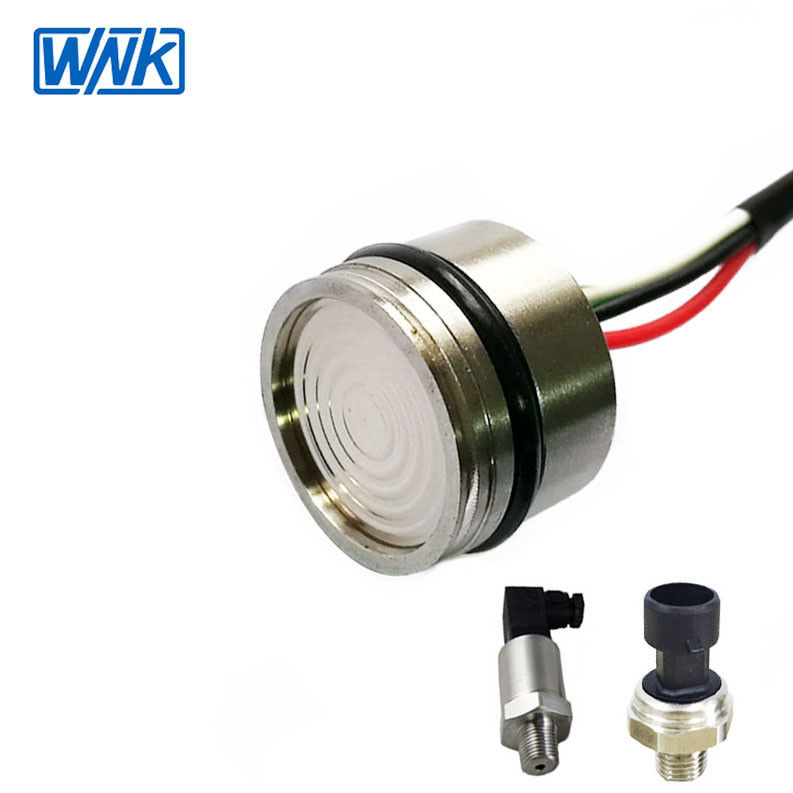

High Overload Electronic Water Pressure Sensor ASIC Signal Conditioning Chip
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK80ma |
Payment & Shipping Terms:
| Price: | $12.00 - $19.00/Pieces |
|---|---|
| Packaging Details: | Each piece into individual carton with foam protection<br>Or as per client's request |
| Supply Ability: | 30000 Piece/Pieces per Month water pump pressure sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Accuracy: | 0.2%, 0.5% , 1.0% FS | Output Signal: | 4- 20mA, 0.5-4.5V, 0-5V, 1-5V, I2c, Spi, Other |
| Operating Temperature: | -40~85 ℃ | Pressure Range: | -100Kpa ~ 60MPa |
| Power Supply: | 24VDC 12VDC 5VDC 8-30VDC | Material: | 304 SS, 316L |
| Media: | Water, Liquid, Gas, Steam, Oil, Lubricant | IP Rating: | IP65, IP67 |
| Type: | Gauge, Absolute, Seal, Vacuum | Product Name: | Water Pump Pressure Sensor Water Pump Pressure Transducer |
| Port: | Shanghai/Ningbo/Shenzhen/Guangzhou | ||
| High Light: | High Overload Electronic Water Pressure Sensor,ASIC Chip Electronic Water Pressure Sensor |
||
Product Description
Low Cost High Overload Water Pump Pressure Sensor/Pressure Transducer
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Specifications
| Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
| Pressure Range | -100Kpa - 60Mpa |
| Accuracy | 0.2%, 0.5%, 1.0% FS |
| Power Supply | 5VDC, 12-32VDC |
| Measuring Media | Gas, Steam, Liquid, Oil |
| Output | |
| Analog | 4-20mA, 0.5-4.5V, Other |
| Digital | I2C, SPI |
| Operation Condition and Temperature | |
| Compensation Temperature | -40...75℃ |
| Medium Temperature | -45 ... 85℃ |
| Storage Temperature | -45 ... 85℃ |
| Material and Protection | |
| Ingress Protection | IP65, IP67 |
| Housing Material | 304SS, 316L |
| - Automobile, Compressor and Refrigeration Industry |
| - Engineering machinery |
| - Pressure control and monitor |
| - Water treatment system |
| - Hydraulic and Pneumatics |
| - HAVC and BAS Control |
| - Pump, fitness equipment, household appliances |
| - Factory Automation |
| - Fluid Control and Instrumentation Systems |

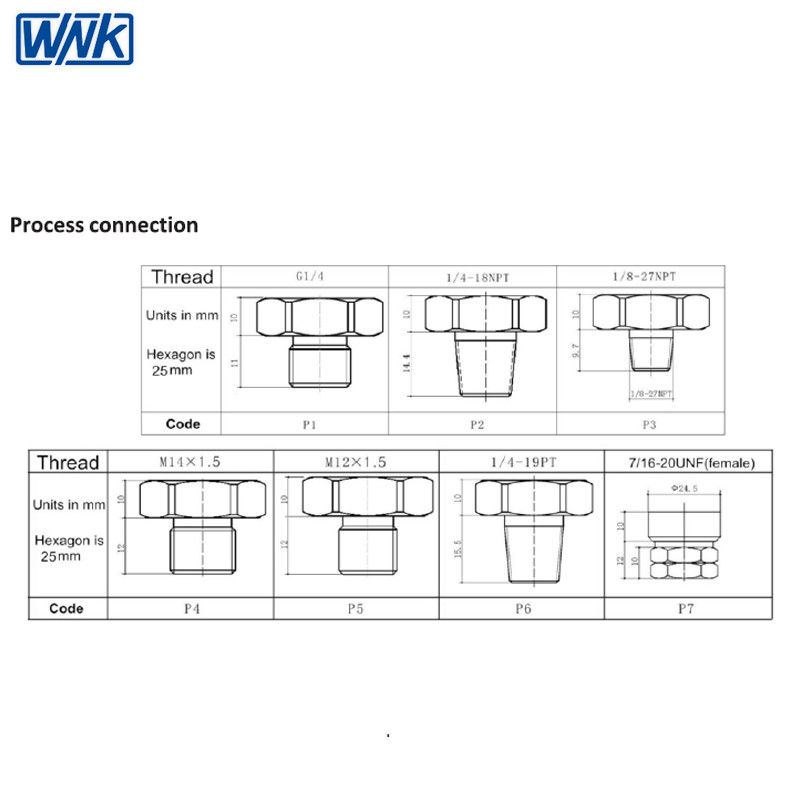

Pressure Port
