1.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor

1.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor

1.5 %FS Electronic Pressure Sensor

5VDC Mems Blood Pressure Sensor

Medical Mems Blood Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK-17

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Pressure Range:
-100kPa~0kPa...1000kPa
Output Signal:
I2c
Accuracy:
1.5 %FS
Power Supply:
5VDC
Application:
Therapy Equipment, Breathing Machine, Oxygen Generating Equipment
Measured Media:
Non-corrosive Gases And Liquids
Sensor Type:
Silicon Piezoresistive Pressure Sensor
Name:
Mems Pressure Sensor For Blood Pressure Monitor
Keyword:
Blood Pressure Sensor/monitor Blood Pressure
Port:
Shanghai
Highlight:

1.5 %FS Electronic Pressure Sensor

,

5VDC Mems Blood Pressure Sensor

,

Medical Mems Blood Pressure Sensor

Payment & Shipping Terms
Price
$4.00 - $5.00/Pieces
Packaging Details
Selling Units:
Single item

Single package size:
2X2X2 cm

Single gross weight:
0.010 kg

Package Type:
Each set into one individual carton, protection with foam,Then into master carton
Supply Ability
20000 Piece/Pieces per Month pressure sensor
Product Description

Mems Medical Pressure Transmitter For Blood Pressure Sensor



-   Perfect Accuracy(±1.5%) of full scale

-  Gage,Vacuum Type

-  For Non-corrosive gas or air and liquid

-  Calibrated,Amplified I2C Signal output

-  Temp. Compensated:0℃~+85℃(32℉~+185℉)

-  Direct application,Low Cost



Applications

 - For Medical equipment field, such as therapy equipment, breathing machine, oxygen
generating equipment,monitor,alcohol tester.etc.
- For Sport and fitness equipment field,such as massage,air spring bed,etc.
- For Home appliance field, such as washing machine,active oxygen water machine beer
machine,coffee machine, etc.
- For Other fields, such as air pump,emergency lamp, dust collector, HVAC and pneumatic
device etc.







1.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 0

1.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 21.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 41.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 6



Features

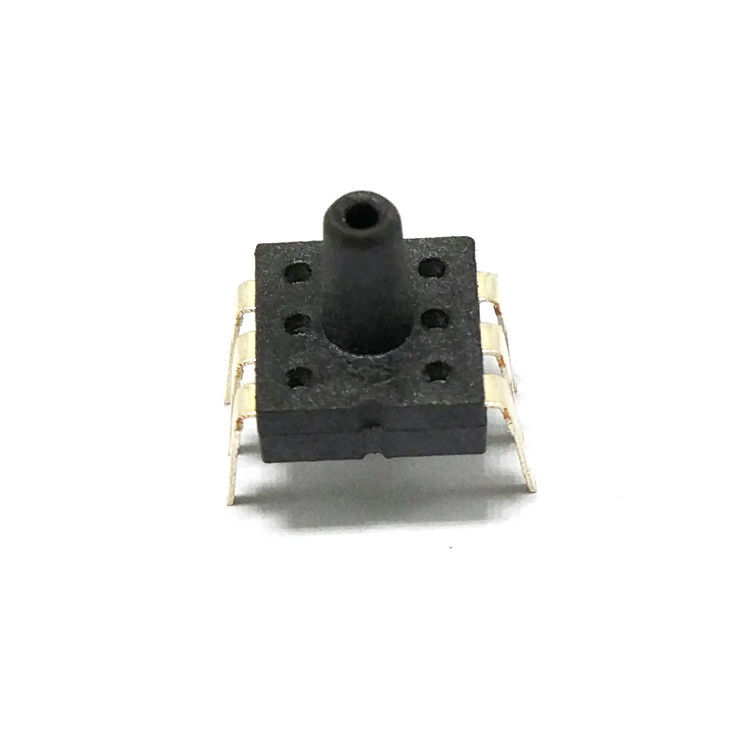

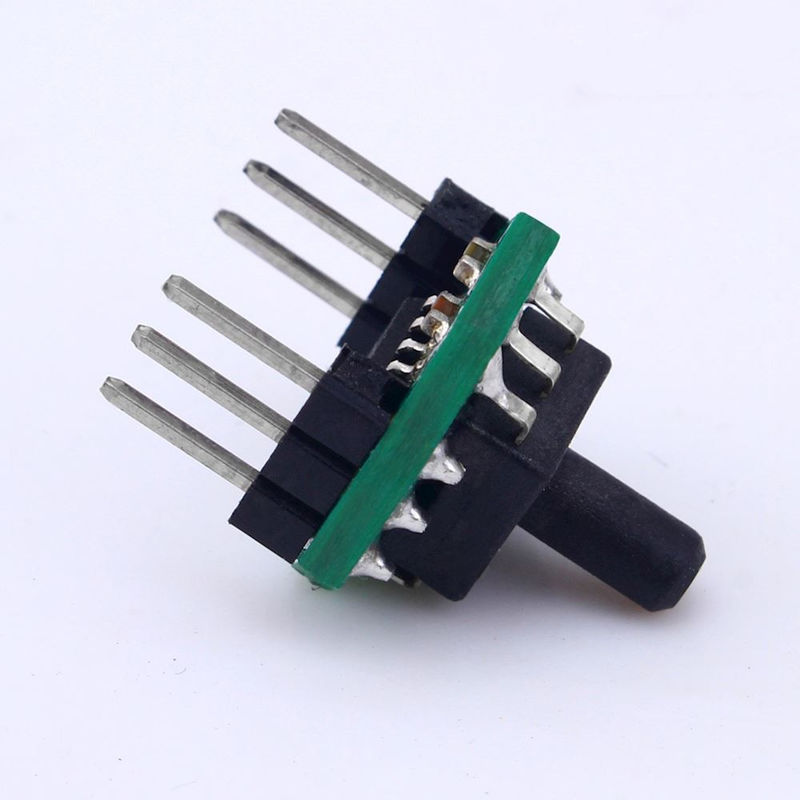

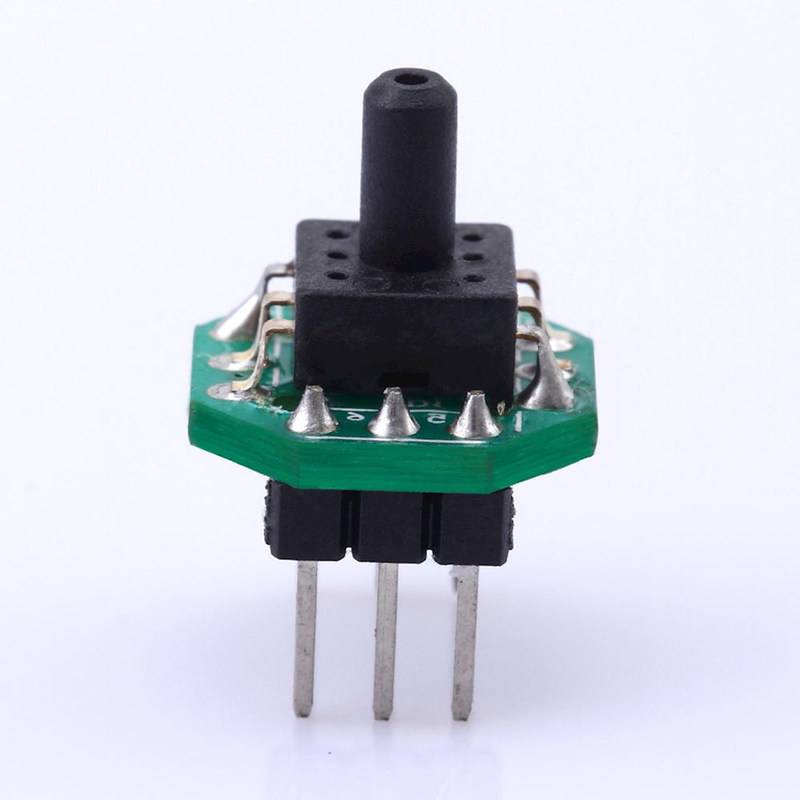

 WNK17 is a prefect silicon pressure sensor module offering a I2C digital interface for reading pressure over the specified full scale pressure span and temp.range. WNK17 incorporates a silicon piezoresistive pressure sensor and an on-board Application Specific Integrated Circuit(ASIC) under PC board in a DIP8 package. WNK17 is fully calibrated and temperature compensated for offset,sensitivity, temperature and non-linearity,so WNK17 pressure sensor module satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machine,home electronics,and other pneumatic devices etc. WNK17 pressure sensor module is for high volume application at an affordable cost and perfect performance. Custom calibrations(excitation voltage and pressure range) are available.



Specifications

 1.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 81.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 10





About us

 1.5 %FS Electronic Pressure Sensor , 5VDC Medical Mems Blood Pressure Sensor 12





FAQ

 Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory
address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we
also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For
more goods we can arrange by air or by Sea.
