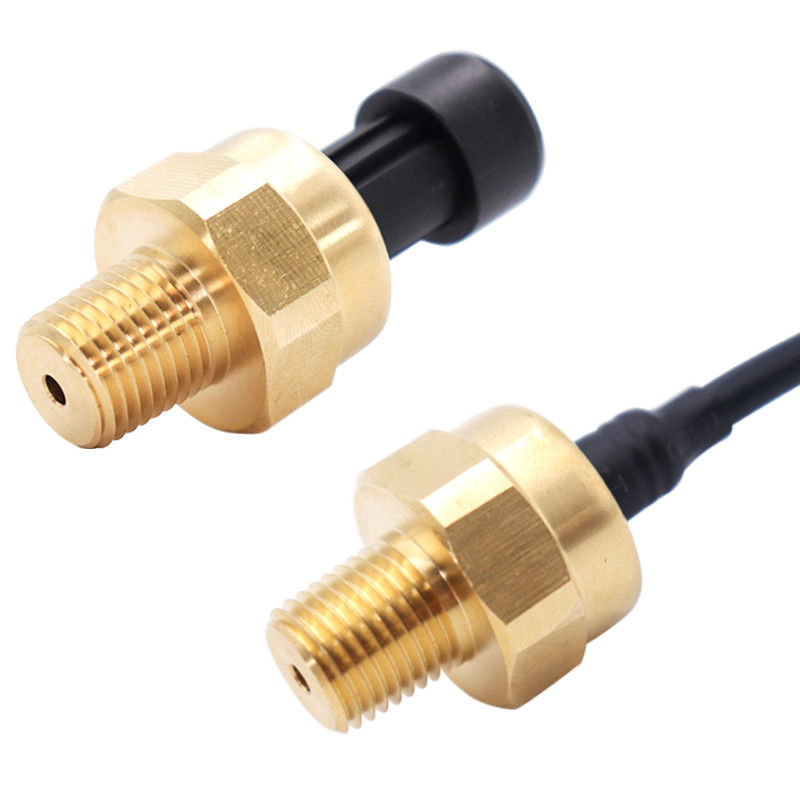

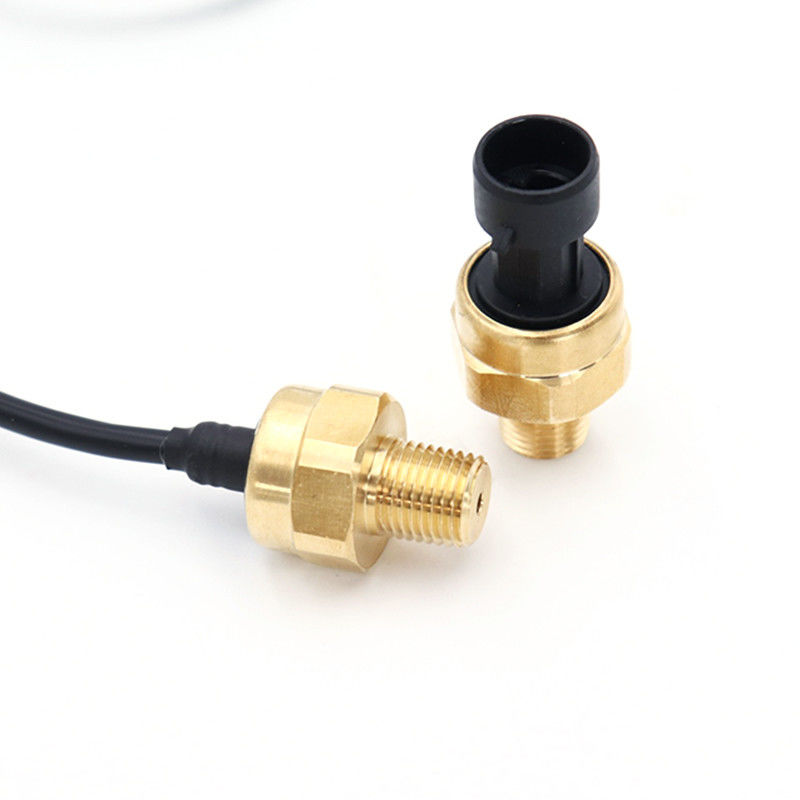

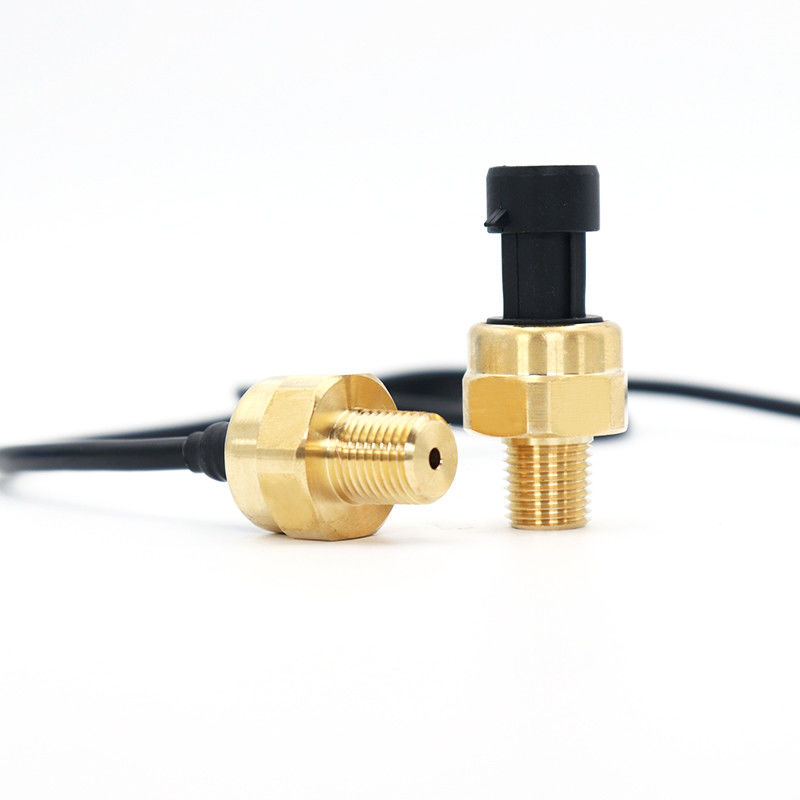

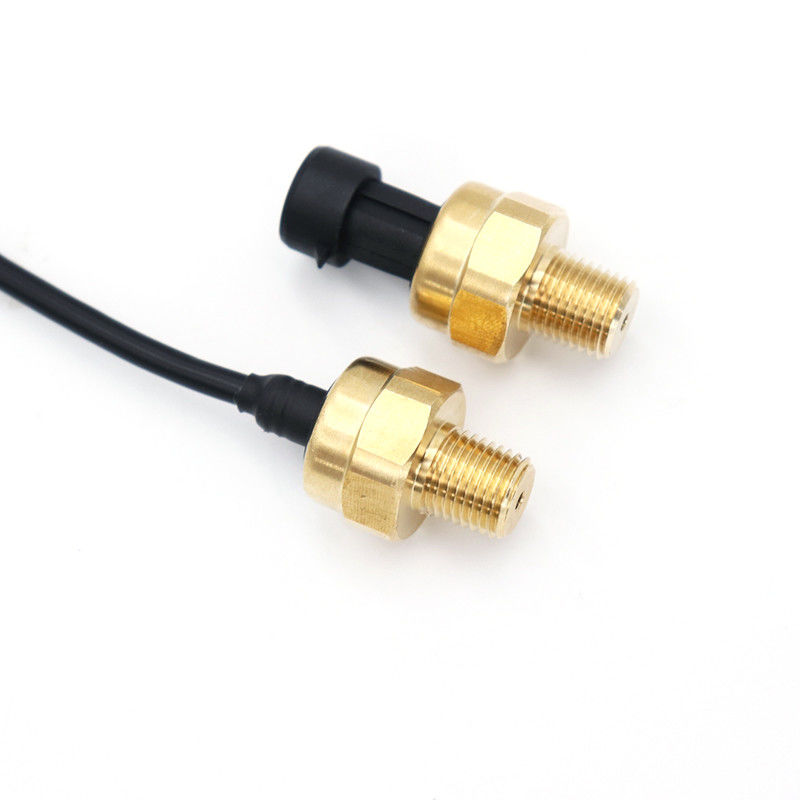

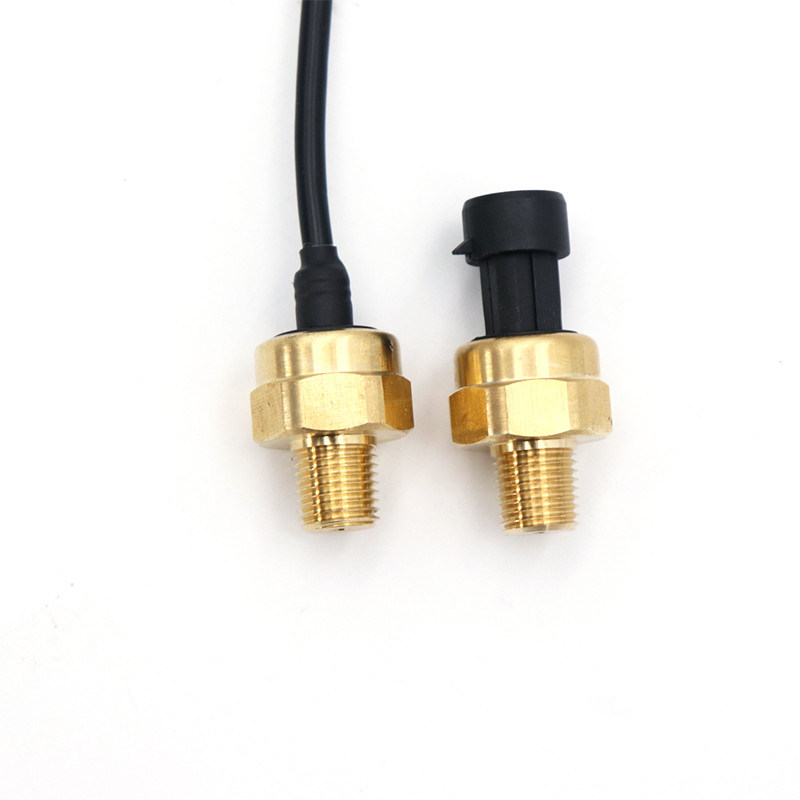

4.5v Brass Electronic Air Pressure Sensor , Capacitive ceramic pressure transmitter
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK83mA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $6.50/Pieces >=1 Pieces |
| Packaging Details: | Each five pcs in one paper box 100 pcs in one carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 Piece/Pieces per Month Pressure Sensor/ Hvac Pressure Sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Pressure Type: | Gauge, Sealing, Absolute Pressure | Measure Range: | 0-2MPa |
| Analog: | 0.5-4.5v | Accuracy: | 1% |
| Supply Voltage: | 4.75-5.25 VDC | Electrical Connection: | Packard |
| Process Connection: | NPT | Material: | Brass |
| Cell: | Ceramic Capacitive Pressure Sensor | IP Rate: | IP65 |
| Port: | Shanghai | ||
| High Light: | 4.5v Brass Electronic Air Pressure Sensor,Capacitive Electronic Air Pressure Sensor,Capacitive ceramic pressure transmitter |
||
Product Description
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
| Applicable media | Liquid, gas, steam |
| Pressure range | 0-10bar, 0-20bar |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurement | Gauge pressure, sealing pressure |
| Output | 0.5-4.5VDC |
| Power supply | 4.75-5.25VDC |
| Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
| Work temperature | -20~70ºC |
| Ambient temp | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) |
±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable outlet |
| Mechanical connection | 1/4NPT |
| Housing material | Brass |
solutions;
pump, valve and etc;
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
