Digital Blood Pressure Monitoring Pressure Sensor For Medical Blood Pressure Transmitter
|Place of Origin:||Anhui, China|
Payment & Shipping Terms:
|Price:||$4.00 - $5.00/Pieces|
|Packaging Details:||Selling Units:<br> Single item<br><br>Single package size: <br> 2X2X2 cm <br><br>Single gross weight:<br> 0.010 kg<br><br>Package Type:<br> Each set into one individual carton, protection with foam,Then into master carton|
|Supply Ability:||20000 Piece/Pieces per Month pressure sensor|
|Warranty:||1 YEAR||Customized Support:||OEM, ODM|
|Pressure Range:||-100kPa~0kPa...1000kPa||Output Signal:||I2c|
|Accuracy:||1.5 %FS||Power Supply:||5VDC|
|Application:||Therapy Equipment, Breathing Machine, Oxygen Generating Equipment||Measured Media:||Non-corrosive Gases And Liquids|
|Sensor Type:||Silicon Piezoresistive Pressure Sensor||Name:||Mems Pressure Sensor For Blood Pressure Monitor|
|MOQ:||1 PC||Keywords:||Monitoring Pressure Sensor/ Pressure Sensor Blood|
- Perfect Accuracy(±1.5%) of full scale
- Gage,Vacuum Type
- For Non-corrosive gas or air and liquid
- Calibrated,Amplified I2C Signal output
- Temp. Compensated:0℃~+85℃(32℉~+185℉)
- Direct application,Low Cost
- For Medical equipment field, such as therapy equipment, breathing machine, oxygen
generating equipment,monitor,alcohol tester.etc.
- For Sport and fitness equipment field,such as massage,air spring bed,etc.
- For Home appliance field, such as washing machine,active oxygen water machine beer
machine,coffee machine, etc.
- For Other fields, such as air pump,emergency lamp, dust collector, HVAC and pneumatic

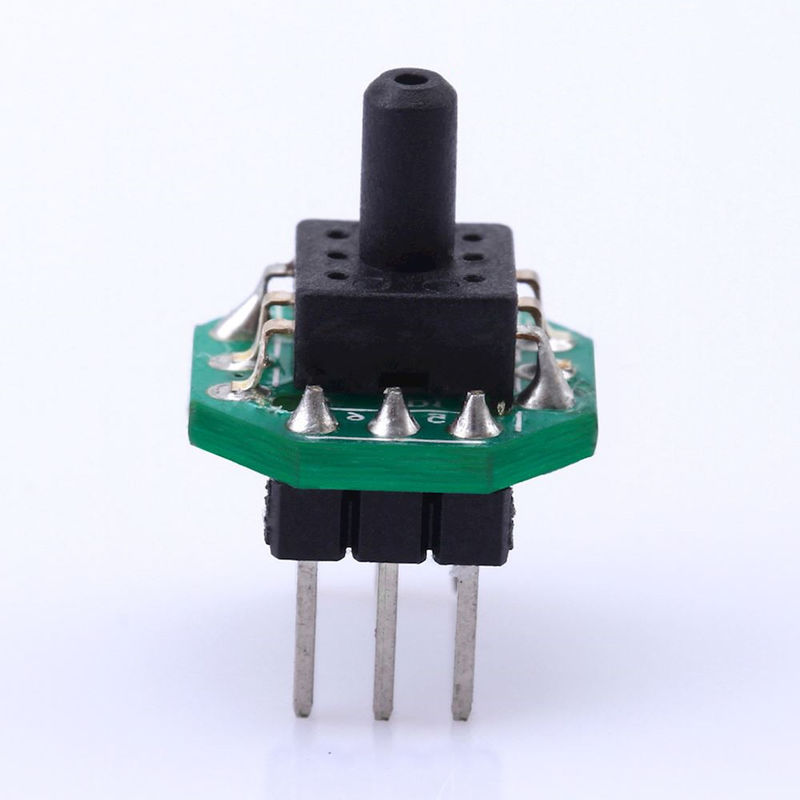

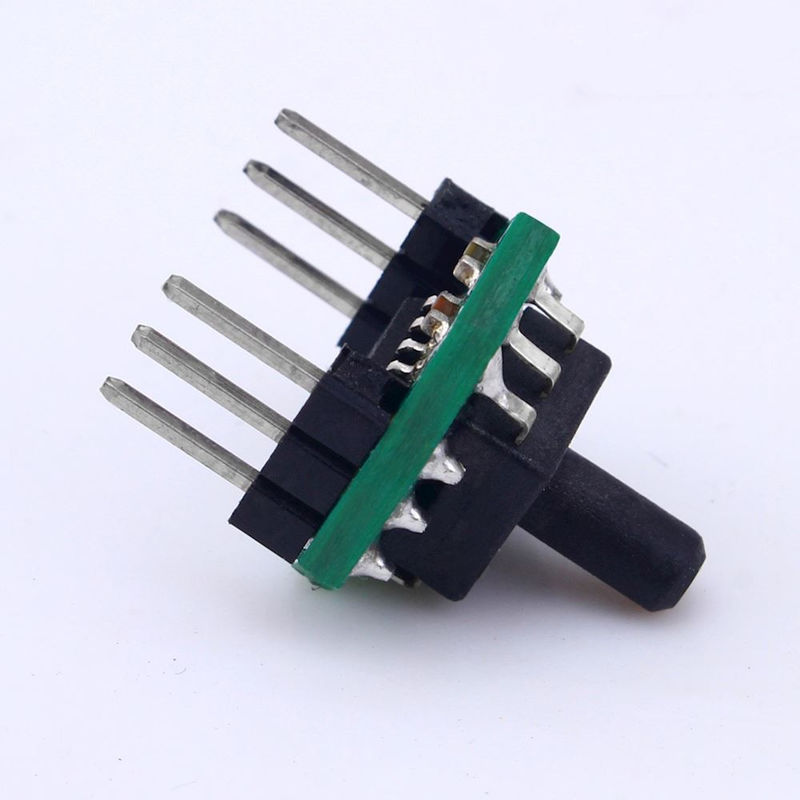

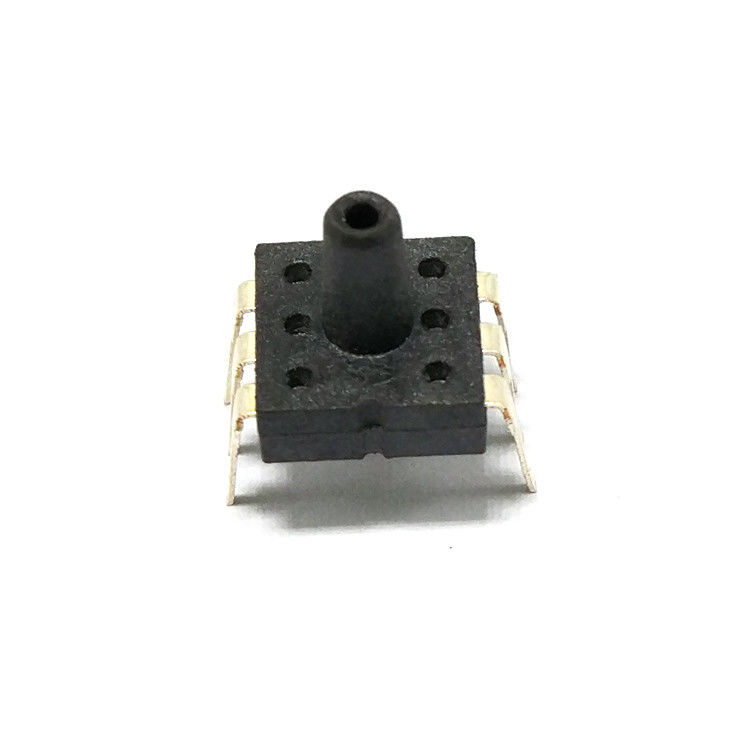

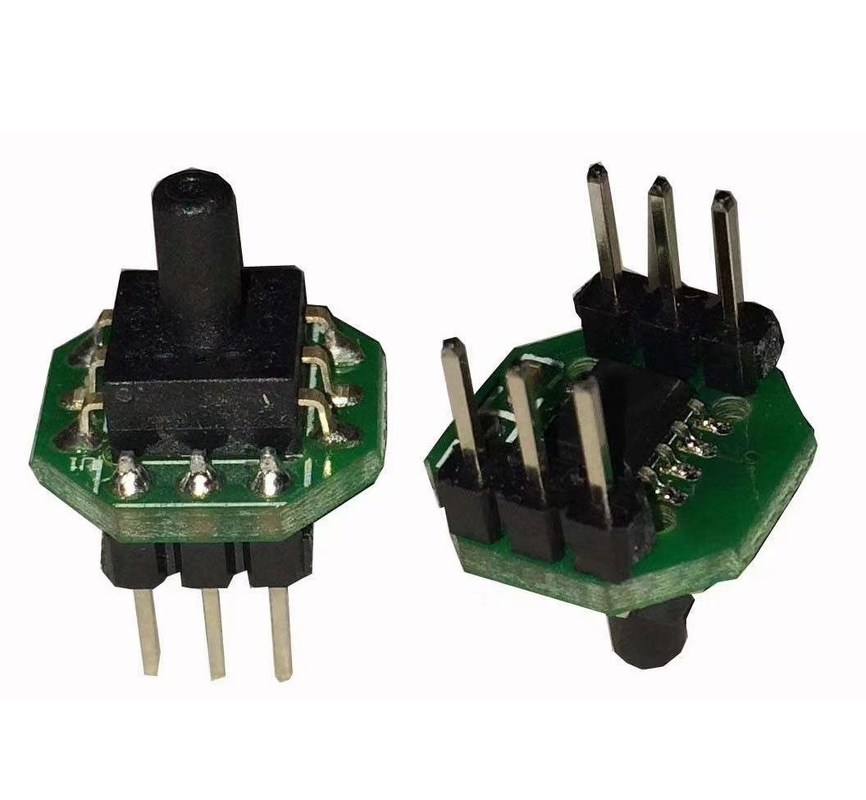

WNK17 is a prefect silicon pressure sensor module offering a I2C digital interface for reading pressure over the specified full scale pressure span and temp.range. WNK17 incorporates a silicon piezoresistive pressure sensor and an on-board Application Specific Integrated Circuit(ASIC) under PC board in a DIP8 package. WNK17 is fully calibrated and temperature compensated for offset,sensitivity, temperature and non-linearity,so WNK17 pressure sensor module satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical equipment, fitness machine,home electronics,and other pneumatic devices etc. WNK17 pressure sensor module is for high volume application at an affordable cost and perfect performance. Custom calibrations(excitation voltage and pressure range) are available.
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory
address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we
also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For
more goods we can arrange by air or by Sea.
