4-20MA Output 5V DC Electronic Water Level Pressure Sensor Transducer

4-20MA Output 5V DC Electronic Water Level Pressure Sensor Transducer

Place of Origin:

China

Brand Name:

WNK

Certification:

CE, SGS, ISO9001

Model Number:

WNK80MA

Contact Us
Request A Quote
Product Details
Pressure Range:
0-6MPA
Output:
I2C, SPI, 0.5-4.5V, 4-20ma And Customization
Respond Time:
≥1ms
Overload Pressure:
3-5 Times
Working Temperature:
-40 -135°C
Warranty:
12 Months
Ingress Protection:
IP65
Accuracy:
1%
Compensation Temperature:
-20 -70°C
Housing Material:
Stainless Steel 304
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiation
Packaging Details
Neutral carton packing or as per your requirement.
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000/ Piece/ Month
Product Description

Product Description

WNK80MA pressure transmitter adopts ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. The features of WNK80MA is anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement, because of high output and wide range.

Product Spec



Applicable media Liquid, Gas, Steam
Pressure range 0-15Mpa
Cell Ceramic Capacitive Pressure Sensor
Pressure measurement Gauge Pressure, AbsolutePressure, Sealing Pressure
Output 4-20ma/0.5-4.5v/1-5v/0-5v/0-10v/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy 1%F.S.
Compensation temperature -20-85C
Working temperature -40-125C
Ambient temperature -40-125C
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Protection IP65







Application:



WNK80MA is solution for below applications:

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;



Product Show

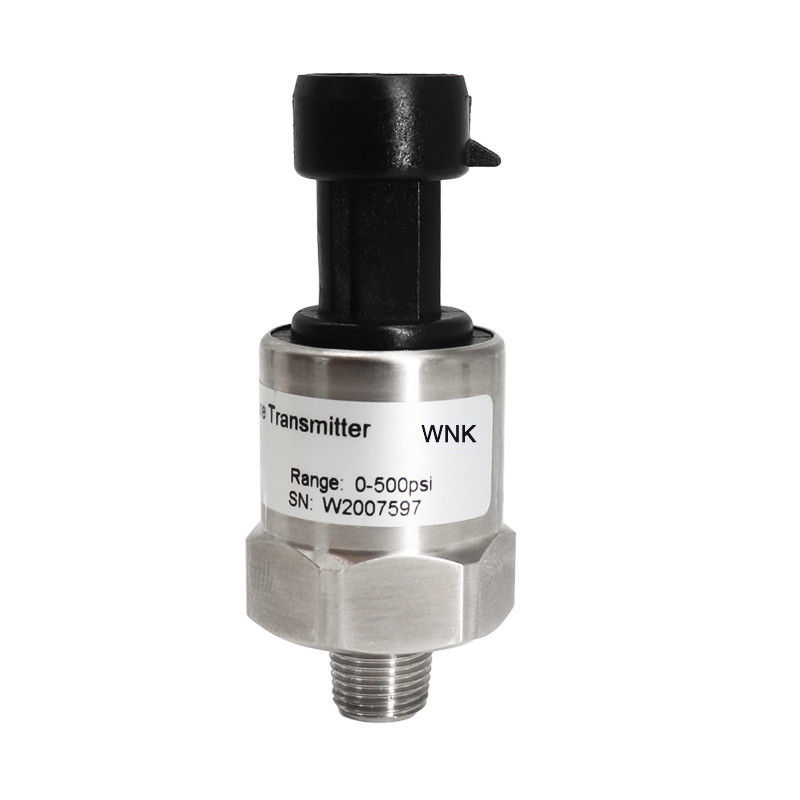

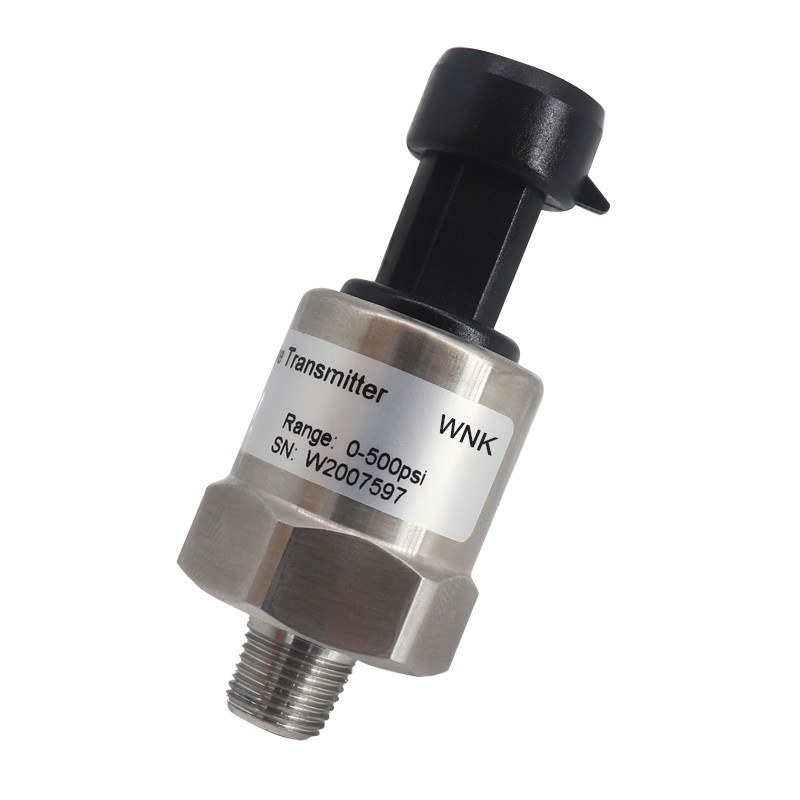

4-20MA Output 5V DC Electronic Water Level Pressure Sensor Transducer 04-20MA Output 5V DC Electronic Water Level Pressure Sensor Transducer 1





About Us

4-20MA Output 5V DC Electronic Water Level Pressure Sensor Transducer 2



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
