Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity

Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity

Product Details:

Place of Origin: China
Brand Name: WNK
Certification: CE
Model Number: WNK80MA

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Neutral carton packing or as per your requirement.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000/ Piece/ Month
Get Best Price Contact Now

Detail Information

Pressure Type: Gauge Pressure,sealing Pressure Measure Range: 0-6MPA
Analog Output: 0.5...4.5V,4...20mA ,O..10 V,1...5V,0 ...5V Digital Output: I2C
Compensation Temperature: -20-70c Housing Material: Stainless Steel 304
Ingress Protection: IP65/ IP67 Supply Voltage: 5V /24VDC Regulated Power Supply
Applicalbe Media: Liquid, Gas, Steam
High Light:

Female Thread AC Refrigerant Pressure Sensor

,

24VDC AC Refrigerant Pressure Sensor

Product Description

7/16-20UNF Female Thread Factory Price 4-20mA 0.5-4.5V Refrigerant Pressure Sensor



Product description



       WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-weaιshock resistance and vibration resistance. Its anti-overload capacity is over 10 times of the range,completely solved poor overload in small range of other sensors. In addition to general ranges of normal sensors,its most outstanding characteristic is the positive and negative gauge pressure function. As high output and wide range of its core ceramic capacitive sensor,WNK80MA is especially suitable for harsh industrial environment pressure measurement.



Specification



Applicalbe media liquid, gas, steam
Supply voltage 5V /24VDC regulated power supply
Ingress protection IP65/ IP67
Housing material Stainless steel 304
Compensation Temperature -20-70c
Digital output I2C
Analog output 0.5...4.5V,4...20mA ,O..10 V,1...5V,0 ...5V
Measure range 0-6MPA
Pressure type Gauge pressure,sealing pressure
MOQ 1



Product show

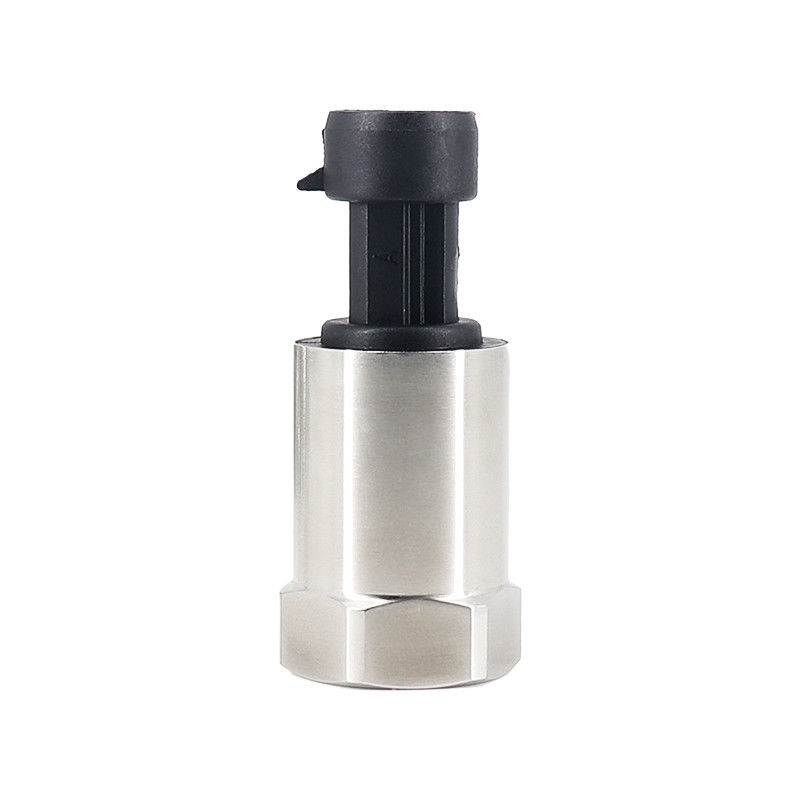

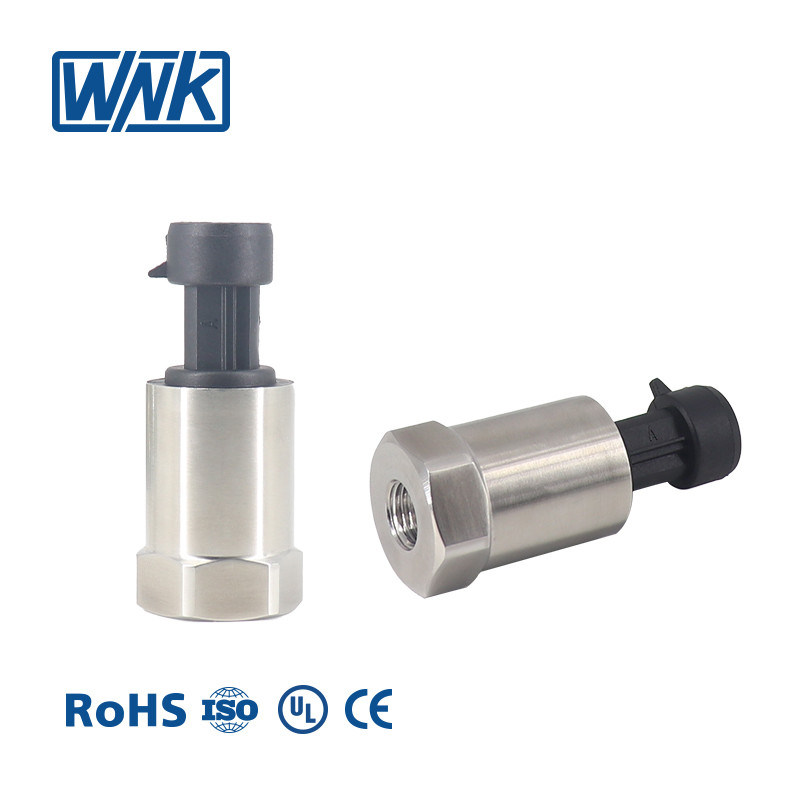

Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 0Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 1

Company information

Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 2Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 3Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 4Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 5Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 6Female Thread AC Refrigerant Pressure Sensor 24VDC 10 times anti overload capacity 7

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
