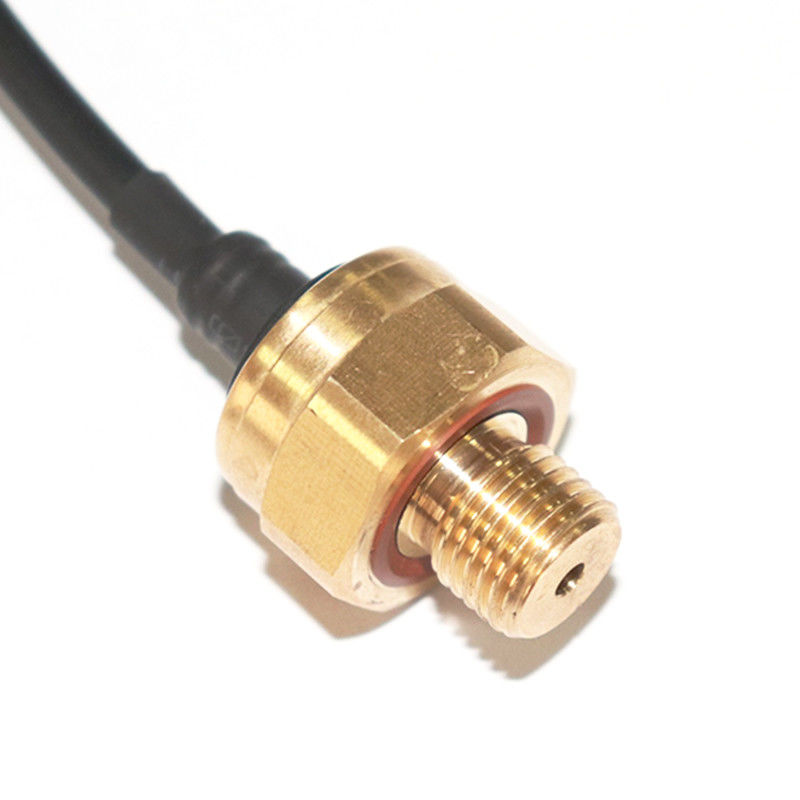

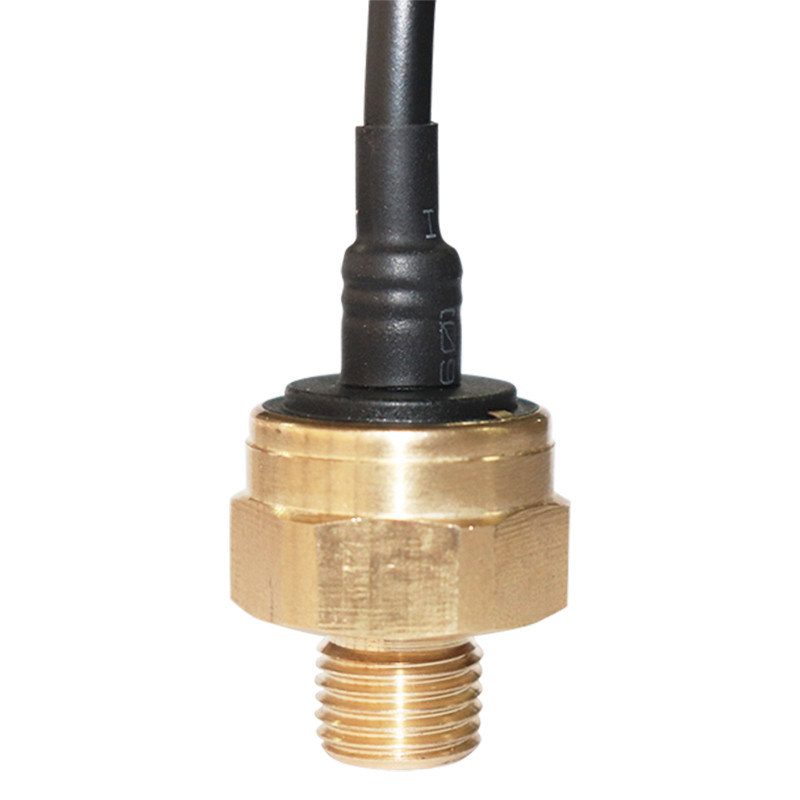

G1/4 Cable Outlet Brass Miniature Pressure Sensor For Smart Fire Controlling

G1/4 Cable Outlet Brass Miniature Pressure Sensor For Smart Fire Controlling

Product Details:

Place of Origin: China
Brand Name: WNK
Model Number: WNK83ma

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: 6.5 USD
Packaging Details: Neutral carton packing or as per your requirement.
Delivery Time: 5-8 work days
Payment Terms: Western Union, T/T
Supply Ability: 10000/Piece/Month
Get Best Price Contact Now

Detail Information

Accuracy: 1%FS Measured Media: Liquid, Gas And Steam
Output: 0.5-4.5VDC Input: 4.75-5.25VDC
Storage Temperature: -40~110°C Work Temperature: -20~70°C
Electrical Connection: Cable Outlet Mechanical Connection: G1/4
Housing Material: Brass

Product Description

G1/4 Cable Outlet Brass Miniature Pressure Sensor For Smart Fire Controlling

Product Description

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.



Applicable media Liquid, gas, steam
Pressure range 0-10bar, 0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurement Gauge pressure, sealing pressure, absolute pressure
Output 0.5-4.5VDC
Power supply 4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability) 1%F.S.
Work temperature -20~70ºC
Ambient temp -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet
Mechanical connection G1/4
Housing material Brass







Mechanical Dimension



npt cable



Product Show



_01_02_03_04_05
