Low Cost Consumption 0.5-4.5V 0-5V Pressure Sensor For Gas Water Fuel

Low Cost Consumption 0.5-4.5V 0-5V Pressure Sensor For Gas Water Fuel

Place of Origin:

CHINA

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK80MA

Contact Us
Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 Prices
Price
Negotiation
Packaging Details
Neutral carton packing or as per your requirement.
Delivery Time
5-8 work days
Payment Terms
Western Union, T/T
Product Description







Low Cost Consumption 0.5-4.5V 0-5V Pressure Sensor For Gas Water Fuel

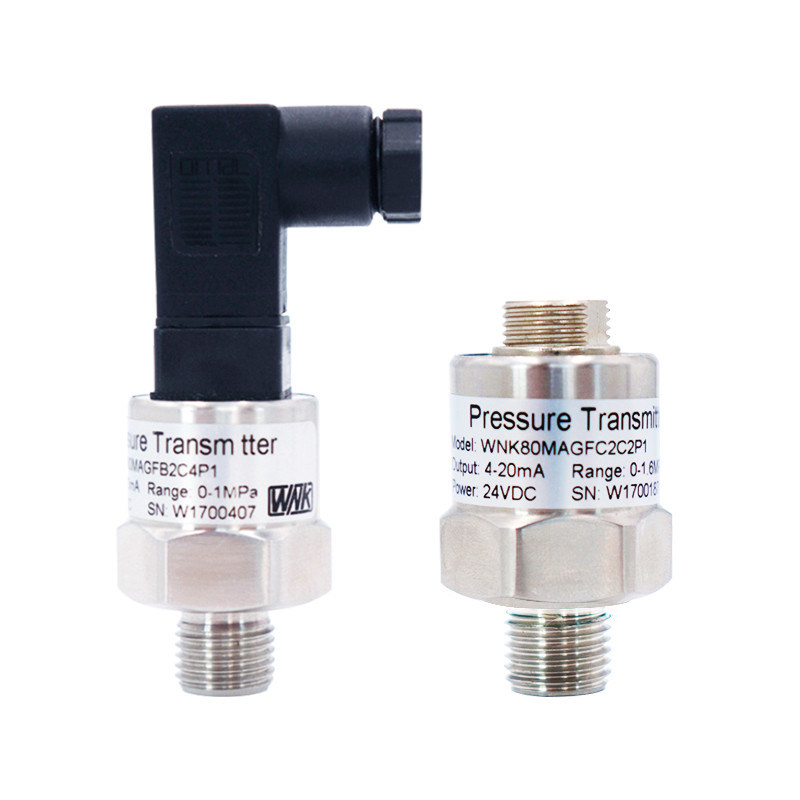

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65



>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery

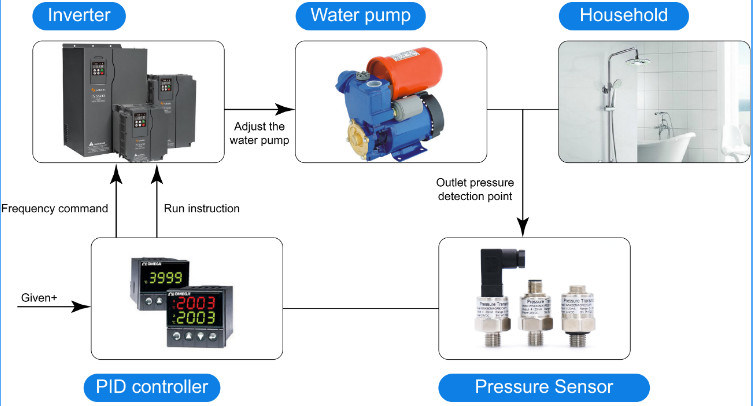

- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems

80mA specs 2.png

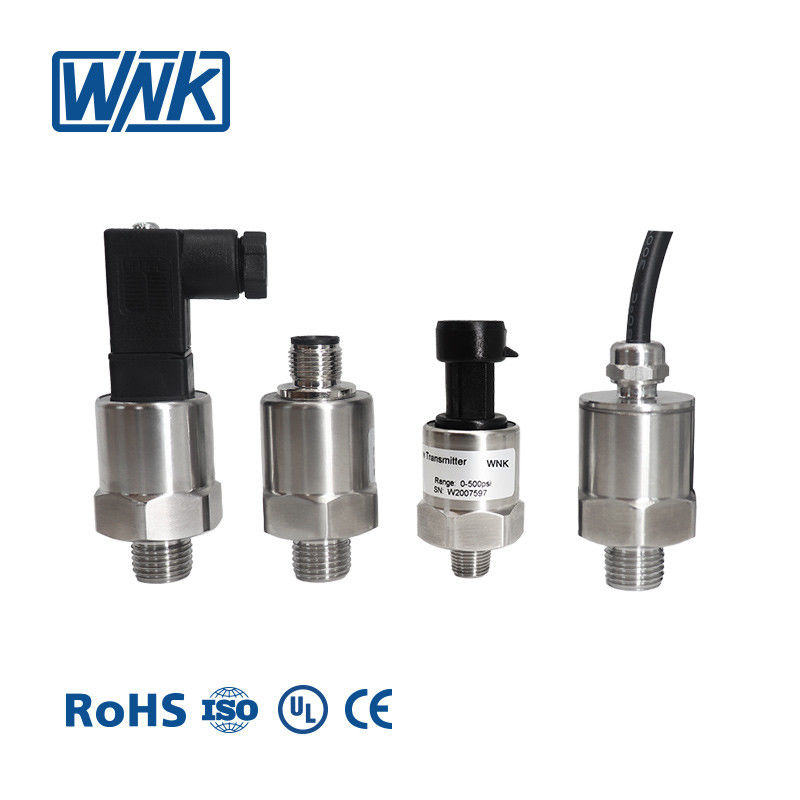

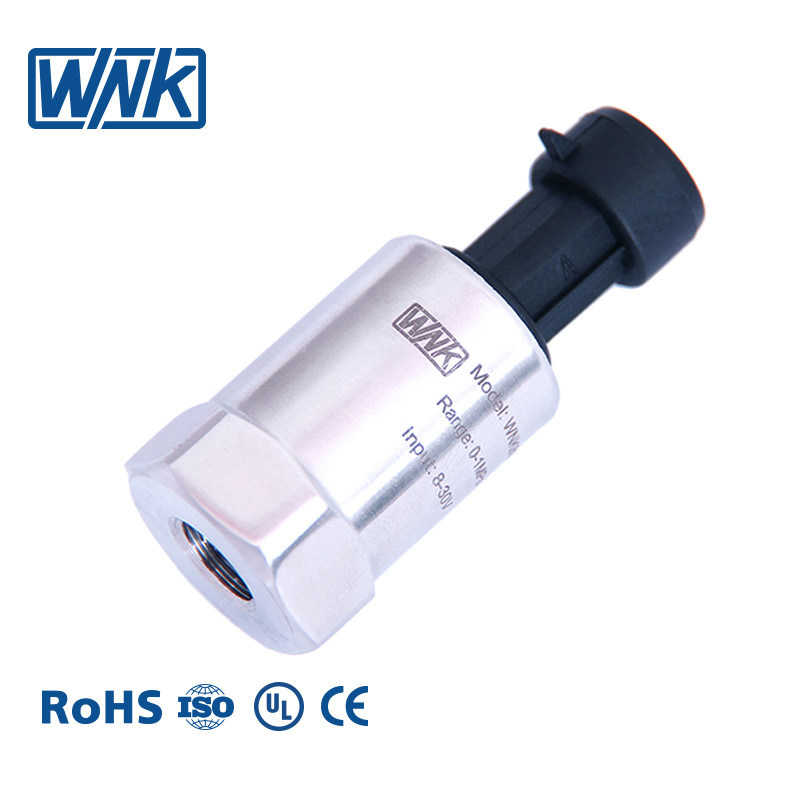

Product Show

80ma



Low Cost Consumption 0.5-4.5V 0-5V Pressure Sensor For Gas Water Fuel 2Low Cost Consumption 0.5-4.5V 0-5V Pressure Sensor For Gas Water Fuel 3Low Cost Consumption 0.5-4.5V 0-5V Pressure Sensor For Gas Water Fuel 4
