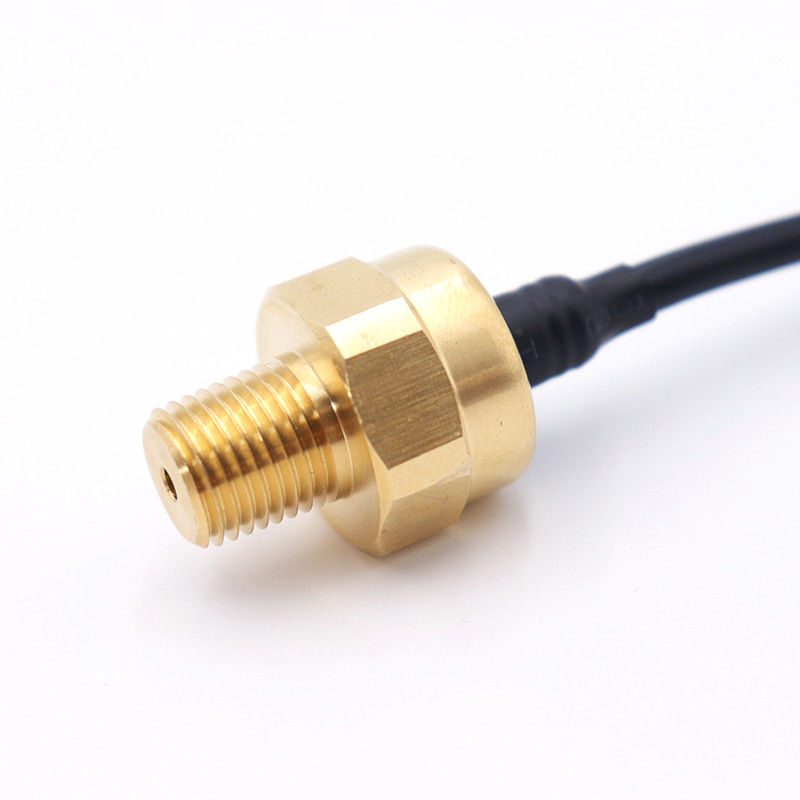

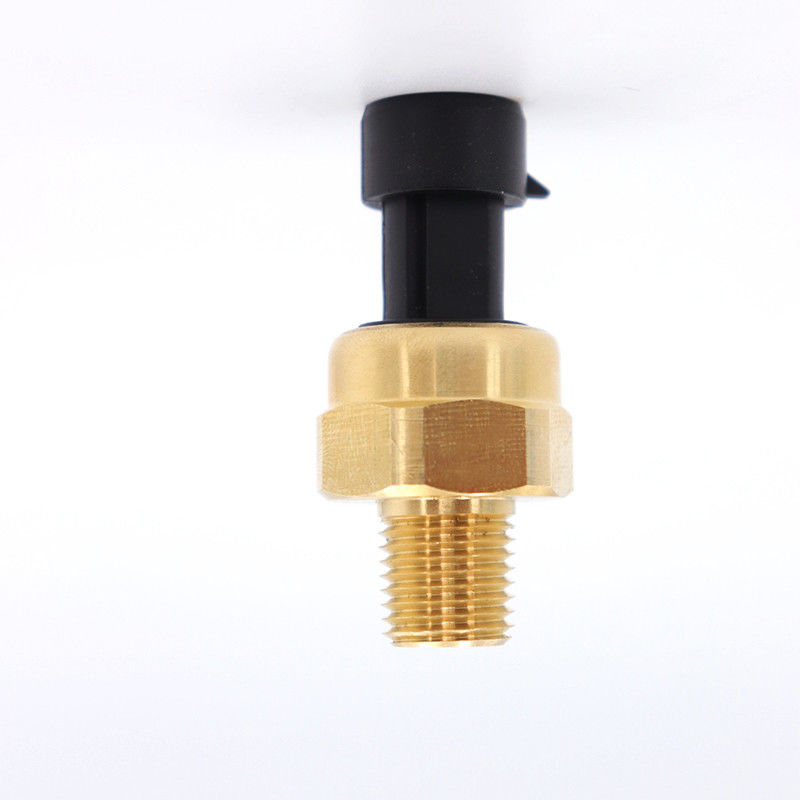

10bar Ceramic Pressure Sensor

10bar Ceramic Pressure Sensor

Product Details:

Place of Origin: China
Brand Name: WNK
Model Number: WNK83ma

Payment & Shipping Terms:

Minimum Order Quantity: 1 Price
Price: 6.5 US
Packaging Details: Neutral carton packing or as per your requirement.
Delivery Time: 5-8 work days
Payment Terms: Western Union, T/T
Supply Ability: 10000
Get Best Price Contact Now

Detail Information

Accuracy: 1%FS Measured Media: Liquid, Gas And Steam
Output: 0.5-4.5VDC Input: 4.75-5.25VDC
Storage Temperature: -40~110°C Work Temperature: -20~70°C
Electrical Connection: Cable Outlet Mechanical Connection: NPT
Housing Material: Brass
High Light:

10bar Ceramic Pressure Sensor

,

20bar Ceramic Pressure Sensor

,

10bar Electronic Air Pressure Sensor

Product Description

Low Cost 0.5-4.5V Ceramic Pressure Sensor For Industrial Water Air Gas Liquid



Product Description





Applicable media Liquid, gas, steam
Pressure range 0-10bar, 0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurement Gauge pressure, sealing pressure, absolute pressure
Output 0.5-4.5VDC
Power supply 4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability) 1%F.S.
Work temperature -20~70ºC
Ambient temp -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable outlet
Mechanical connection 1/4NPT
Housing material Brass







Mechanical Dimension:



npt cablepaste-pic-dp_uuid_o9kpc

_01_02_03_04_05



FAQ



Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
