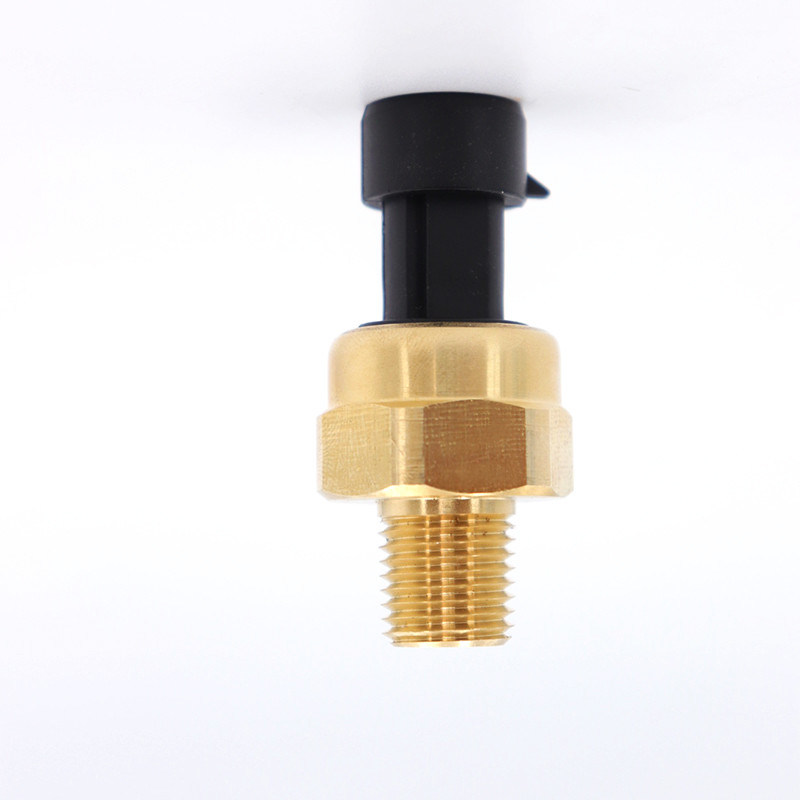

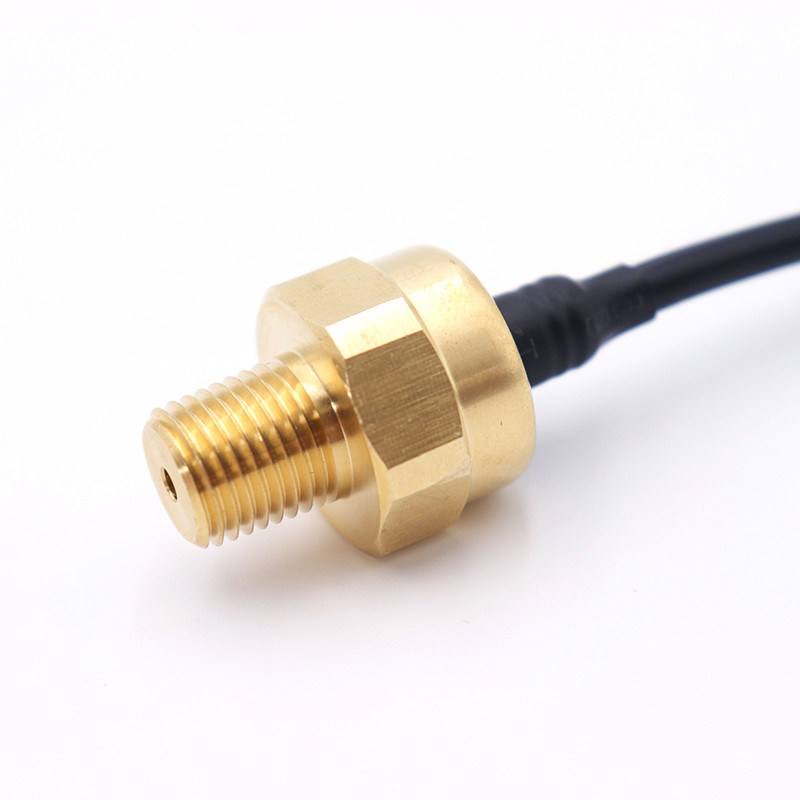

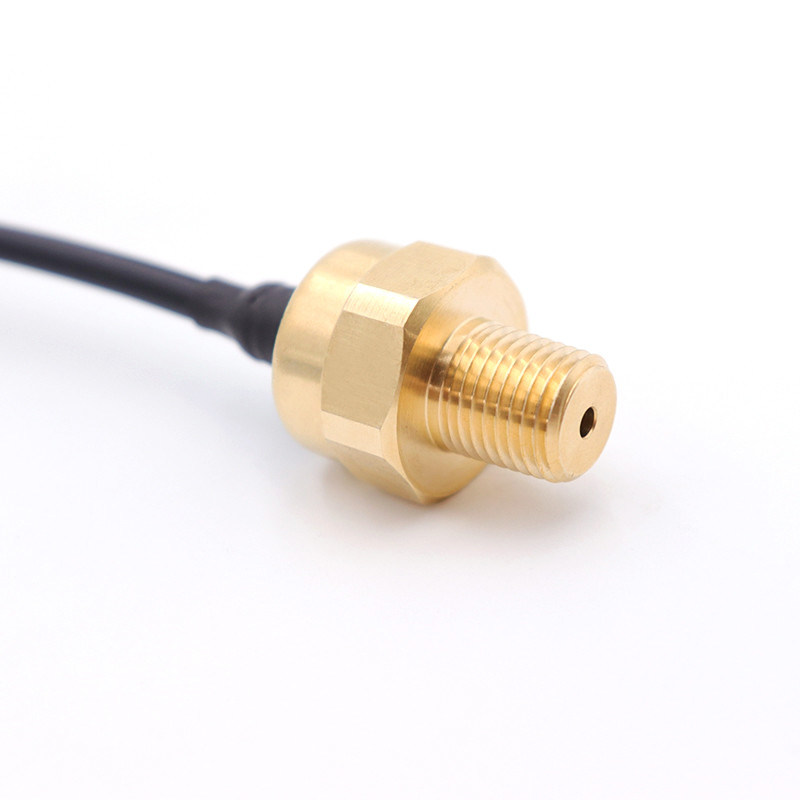

10bar Ceramic Pressure Sensor
Product Details:
Place of Origin: | China |
Brand Name: | WNK |
Model Number: | WNK83ma |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Price |
---|---|
Price: | 6.5 US |
Packaging Details: | Neutral carton packing or as per your requirement. |
Delivery Time: | 5-8 work days |
Payment Terms: | Western Union, T/T |
Supply Ability: | 10000 |
Detail Information |
|||
Accuracy: | 1%FS | Measured Media: | Liquid, Gas And Steam |
---|---|---|---|
Output: | 0.5-4.5VDC | Input: | 4.75-5.25VDC |
Storage Temperature: | -40~110°C | Work Temperature: | -20~70°C |
Electrical Connection: | Cable Outlet | Mechanical Connection: | NPT |
Housing Material: | Brass | ||
Highlight: | 10bar Ceramic Pressure Sensor,20bar Ceramic Pressure Sensor,10bar Electronic Air Pressure Sensor |
Product Description
Low Cost 0.5-4.5V Ceramic Pressure Sensor For Industrial Water Air Gas Liquid
Product Description
Applicable media | Liquid, gas, steam |
Pressure range | 0-10bar, 0-20bar |
Cell | Ceramic capacitive pressure sensor |
Pressure measurement | Gauge pressure, sealing pressure, absolute pressure |
Output | 0.5-4.5VDC |
Power supply | 4.75-5.25VDC |
Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
Work temperature | -20~70ºC |
Ambient temp | -40~110ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
Electrical connection | Cable outlet |
Mechanical connection | 1/4NPT |
Housing material | Brass |
Mechanical Dimension:
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
