4-20mA 0-5V Submersible Hydraulic Water Level Transmitter For Rivers /Lake
Product Details:
| Place of Origin: | CHIAN |
| Brand Name: | WNK |
| Certification: | CE |
| Model Number: | WNK8010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Price |
|---|
|
Detail Information |
|||
| Output: | 4~20mA, I2C, 0-5V, 1-5V | Level Range: | 0-200m H2O |
|---|---|---|---|
| Measuring Medium: | Liquid | Accuracy: | 0.2%FS, 0.5%fs |
| Housing Material: | Stainless Steel | Cable Material: | Polyvinyl Fluoride, PTFE |
| Power Supply: | 24VDC | ||
Product Description
Product Description
Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

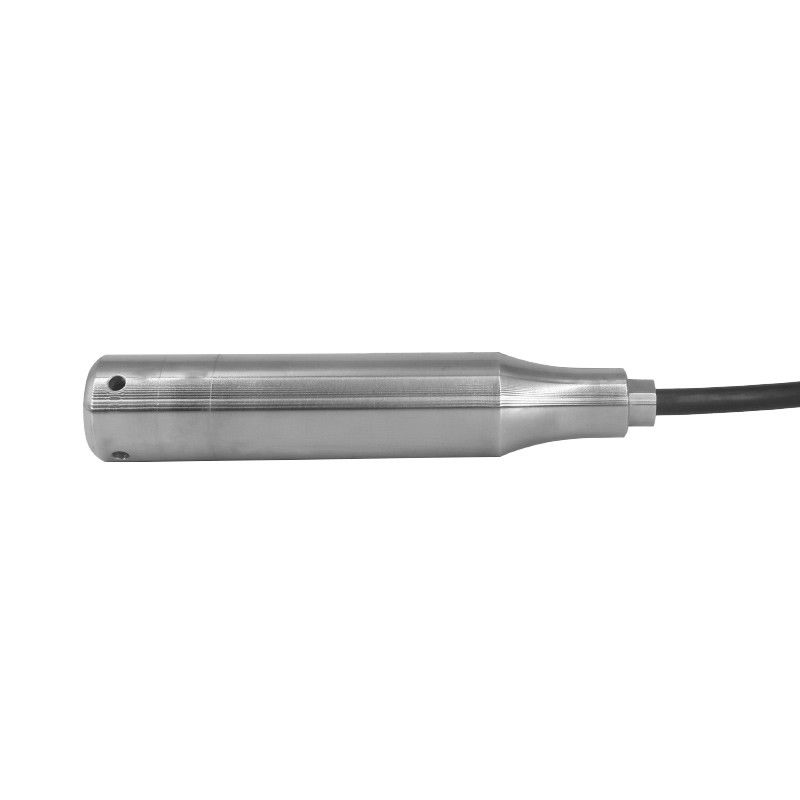

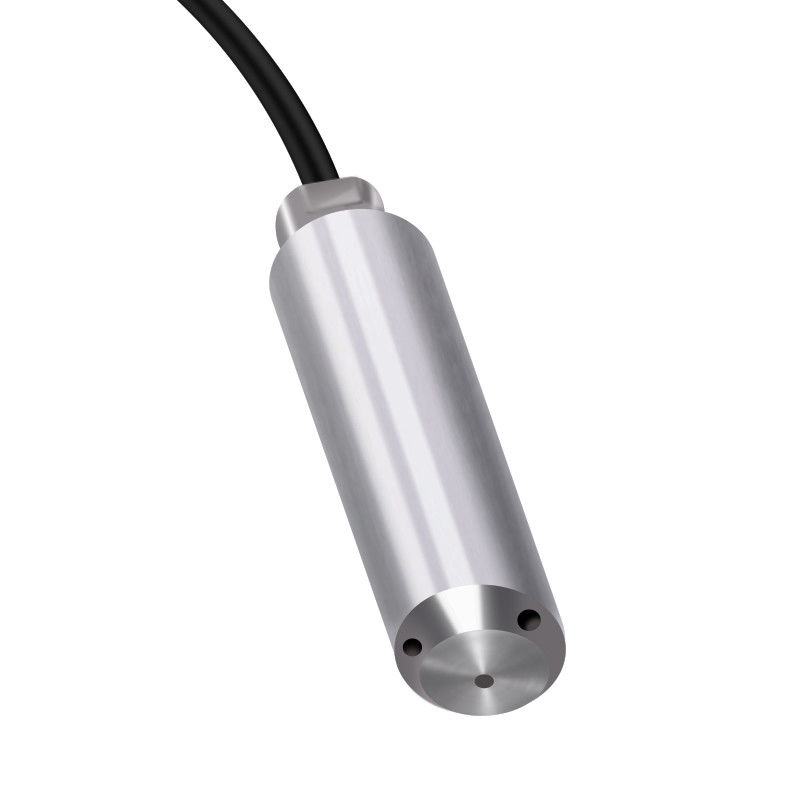

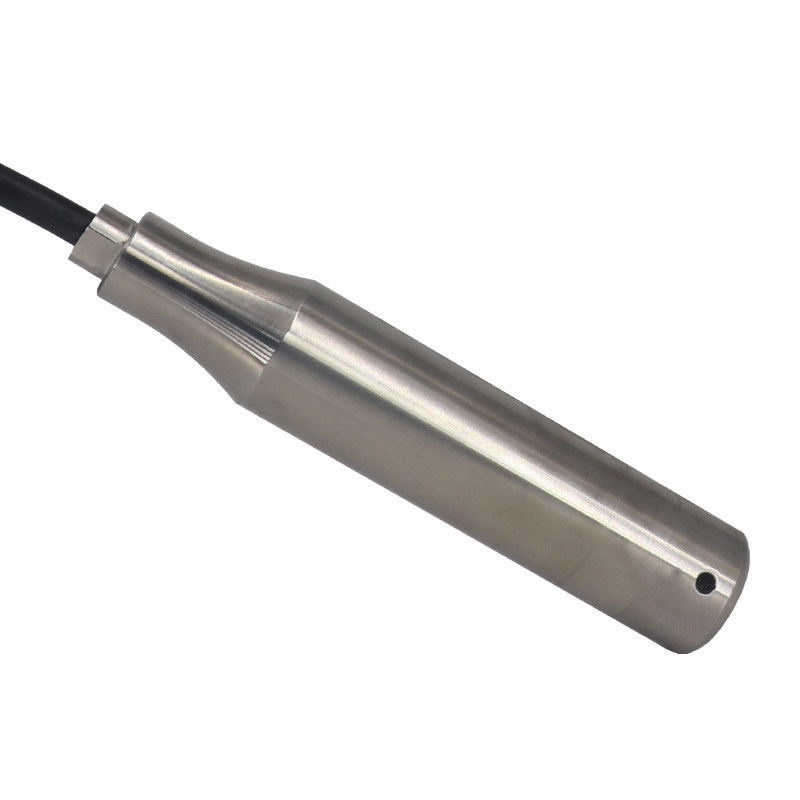

Product Show
