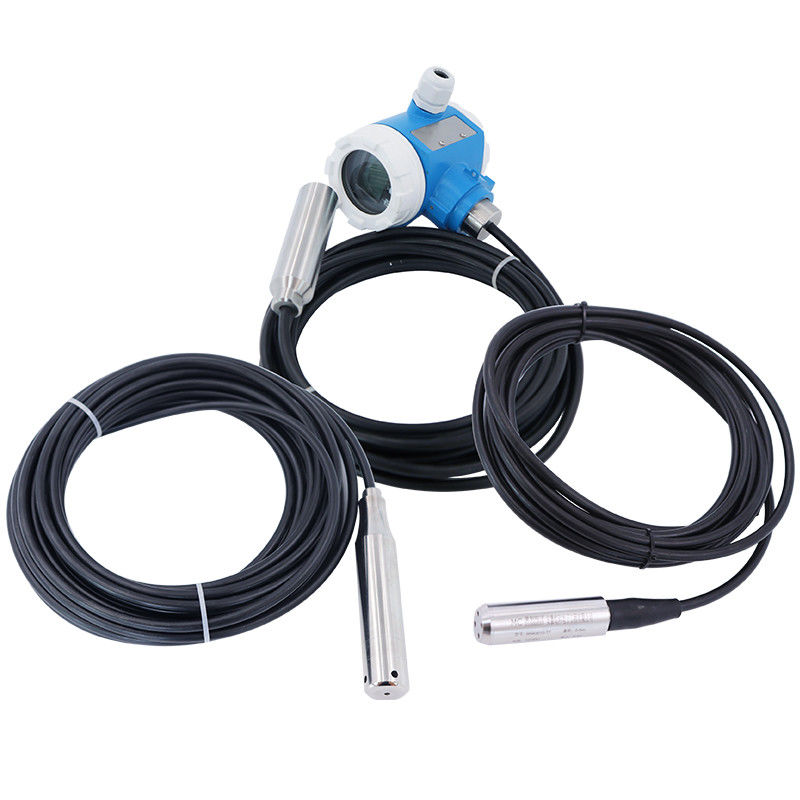

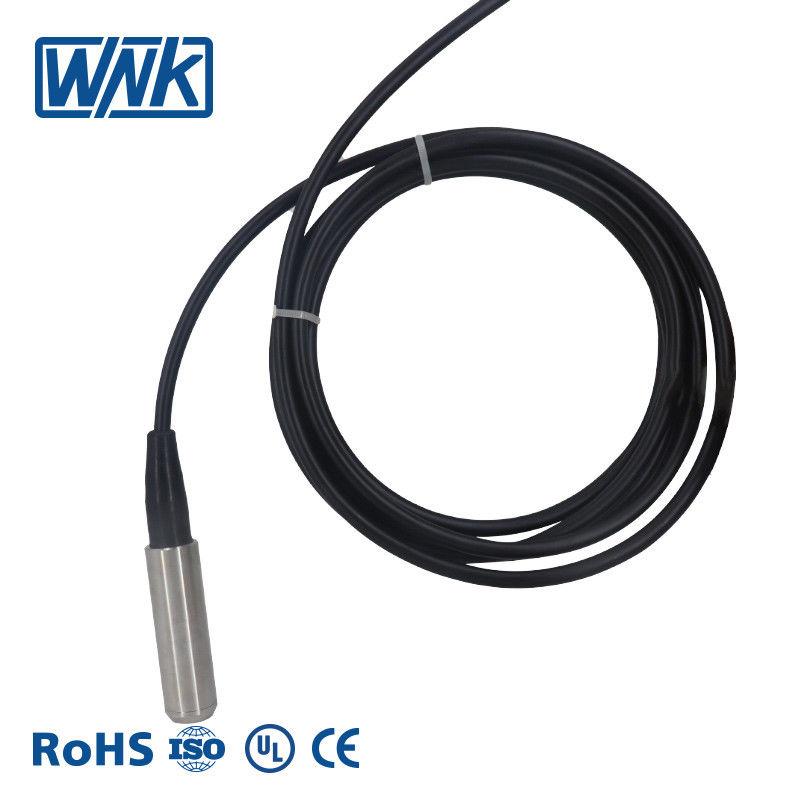

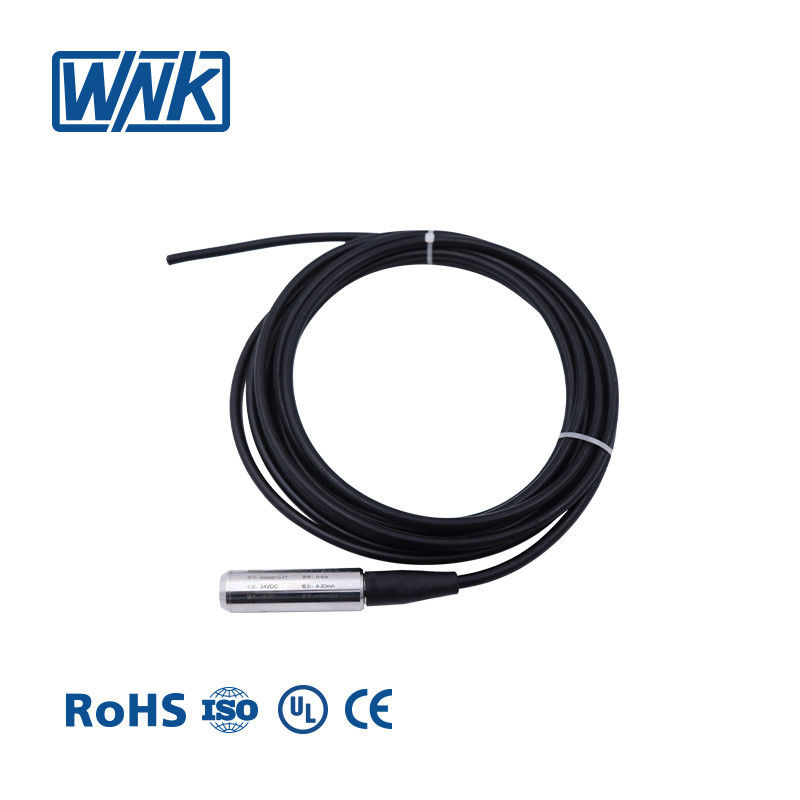

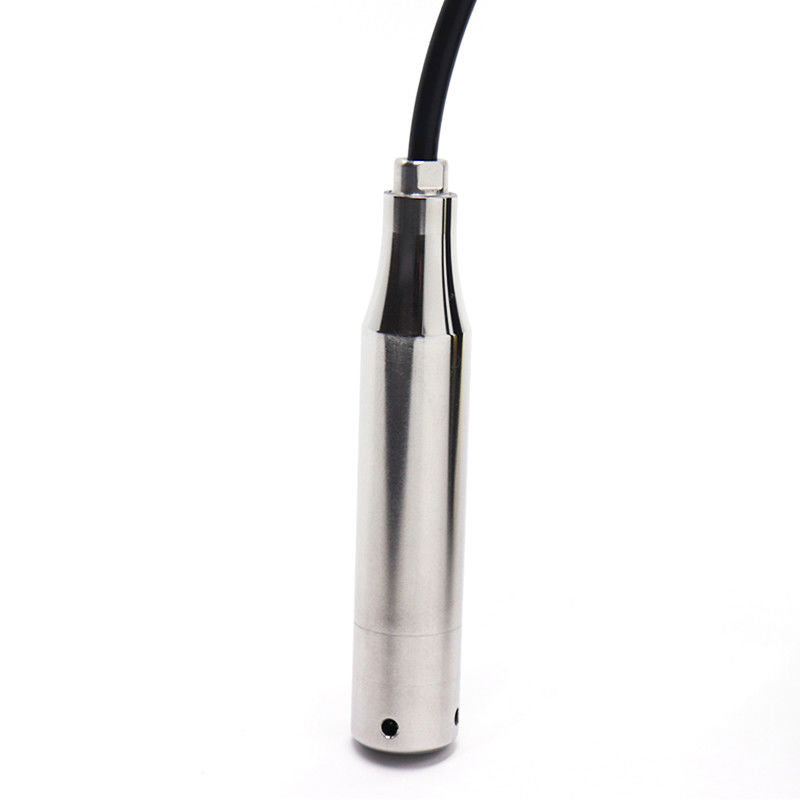

Anti Corrosive Submersible Level Transducer For Pool / Tank Measuring
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE |
| Model Number: | WNK8010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $35.00 - $50.00/Pieces |
| Packaging Details: | Paper carton or as client's requirement; |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000 Piece/Pieces per Month water level sensor probe |
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | 1 YEAR |
|---|---|---|---|
| Customized Support: | OEM, ODM | Output: | 4~20mA, 0-10mA, 0-5V, 1-5V |
| Level Range: | 0-200m H2O | Overload: | 150% Times |
| Measuring Medium: | Liquid | Accuracy: | 0.2%FS, 0.5%fs |
| Stability: | 0.25%FS | Housing Material: | Stainless Steel |
| Cable Material: | Polyvinyl Fluoride, PTFE | Power Supply: | 24VDC |
| Keywords: | Water Level Sensor Probe/ Submersible Level Probe Tank | Port: | Shanghai, Shenzhen |
| High Light: | Anti Corrosive submersible level transducer,Tank Measuring submersible level transducer,Polyvinyl Fluoride Water Level Transmitter |
||
Product Description
Adopting diffusion silicon oil-filled sensor
High Stability
Intergral small size
For tank, pool, underwater etc open vessel measurement
- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
