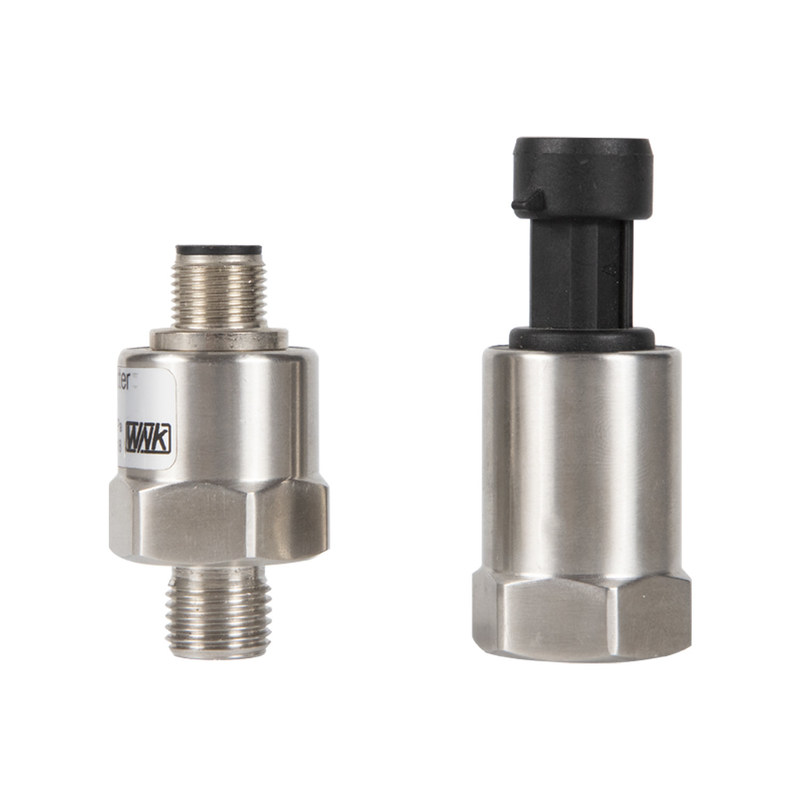

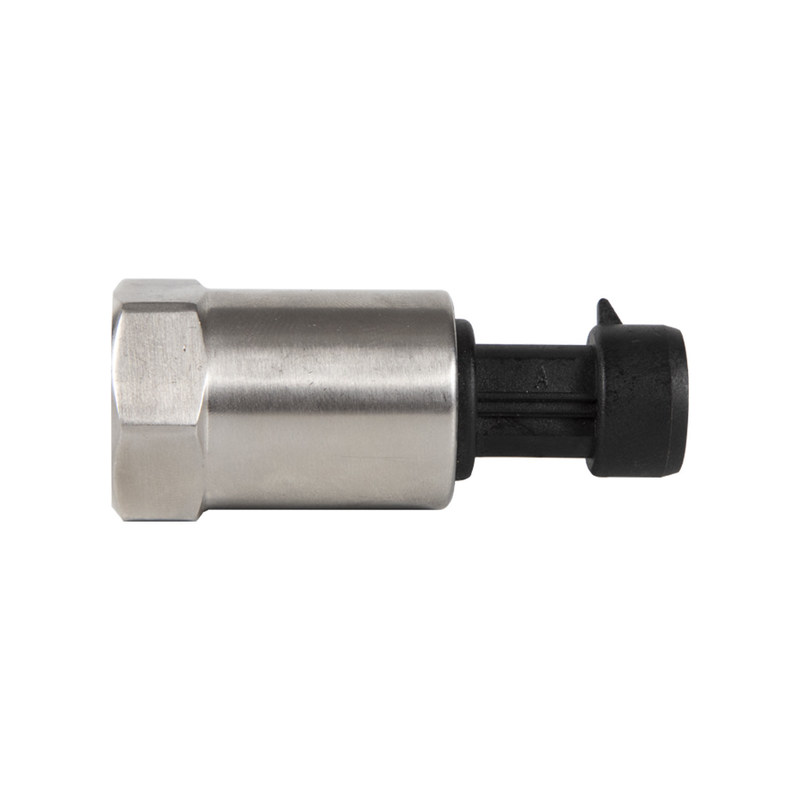

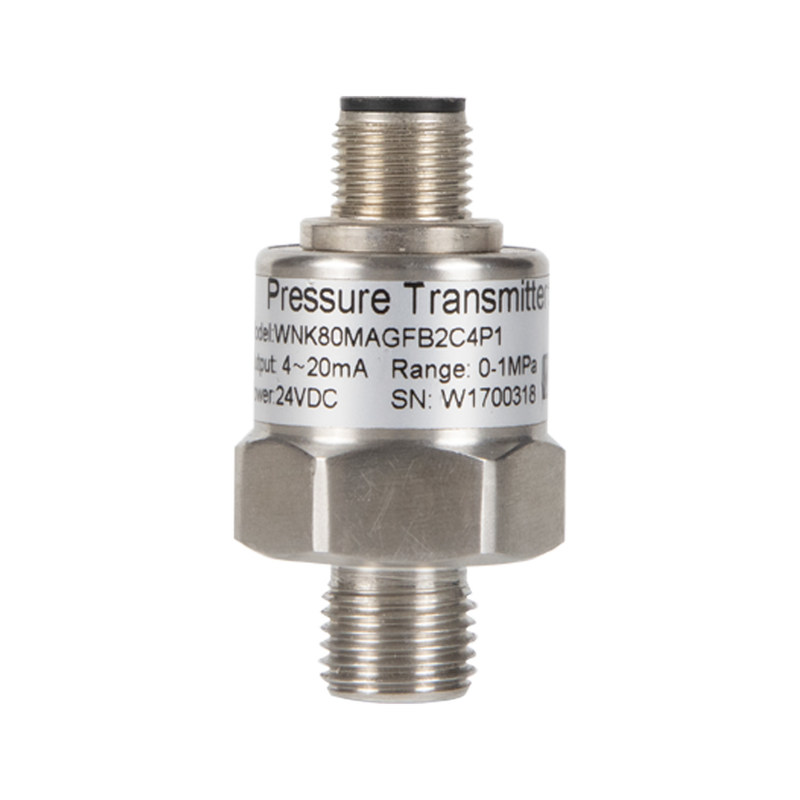

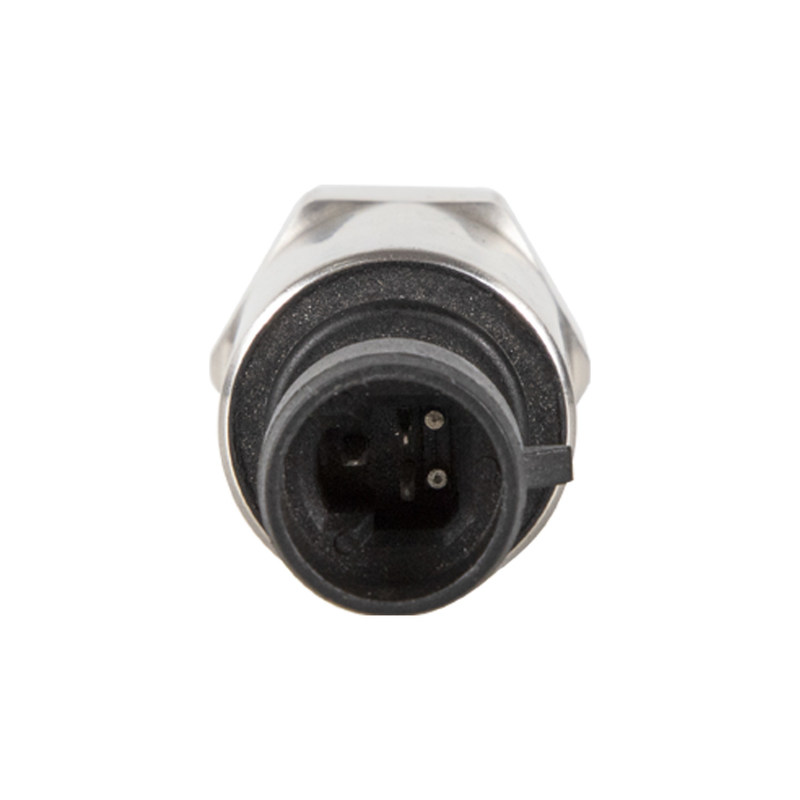

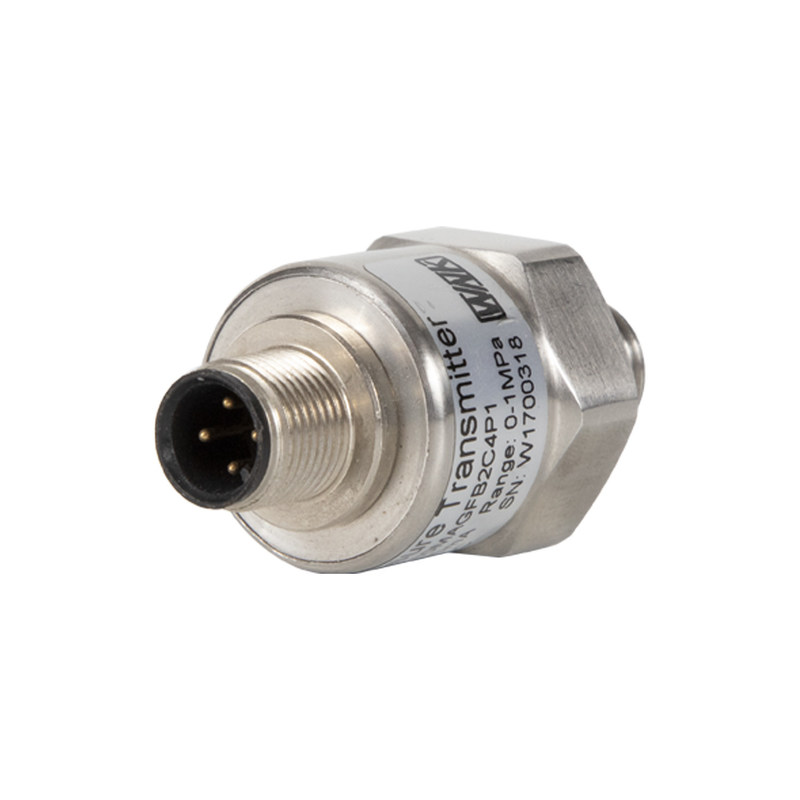

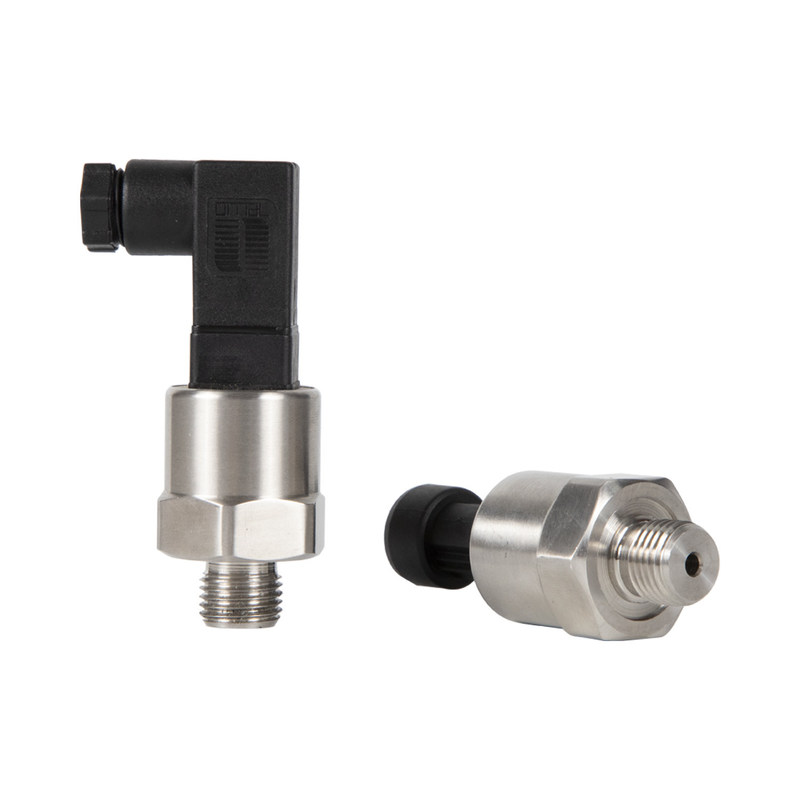

24VDC Oil Pressure Transmitter

24VDC Oil Pressure Transmitter

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK-80mA

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: $12.00 - $25.00/Pieces
Packaging Details: Each generator oil pressure sensor in one inner paper box with foam protection
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Measured Media: Liquid, Gas And Steam Power Supply: 3.3V, 12-30V,5V And So On
Output Singal: 0.5-4.5V, 0-5V, 4-20mA, I2c, Customization Housing Material: 304SS
Operating Temperature:: -20~85 ℃ IP Garde: IP65/IP67
Pressure Range: -100KPa-0.5-15Mpa-60Mpa Certificate: CE
OEM Service: OEM, ODM, Customization Available Port: Shanghai, Ningbo, Shenzhen
High Light:

24VDC Oil Pressure Transmitter


304SS Oil Pressure Transmitter


IP67 Oil Pressure Transmitter

Product Description

4-20ma 0.5-4.5V Pressure Transmitter Oil Vacuum Pressure Transmitter Sensor



WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.



Applicable media Liquid, gas and steam
Pressure range 0-20kPa~50MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, absolute pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65





WNK80MA is solution for below applications:

Pressure measurement of gas, vapor  or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;



24VDC Oil Pressure Transmitter 0


Product Show


24VDC Oil Pressure Transmitter 224VDC Oil Pressure Transmitter 424VDC Oil Pressure Transmitter 624VDC Oil Pressure Transmitter 824VDC Oil Pressure Transmitter 10









Company Information



24VDC Oil Pressure Transmitter 12

24VDC Oil Pressure Transmitter 1424VDC Oil Pressure Transmitter 1624VDC Oil Pressure Transmitter 1824VDC Oil Pressure Transmitter 2024VDC Oil Pressure Transmitter 22



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.


Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.


Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.


Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome


Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.


Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
